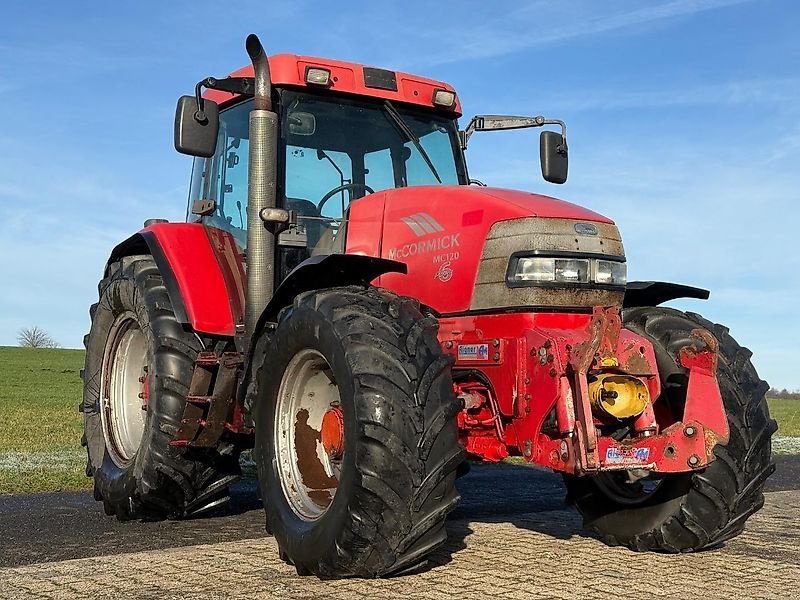

McCormick MC Power6 120

Built: Year not documented · Series: MC Power6

Source: https://www.technikboerse.com/haendler/link-gbr-land-u-bauma

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MC Power6 series from McCormick includes the MC Power6 120. The engine delivers 117 hp (86 kW), has 6 cylinders, with a displacement of 6,728 cm³. The machine is 4,811 mm long, 2,300 mm wide and 2,610 mm high. The unladen weight is 5,355 kg. The wheelbase measures 2,650 mm. Ground clearance is 380 mm. The tank holds 265 litres. Tyres: front 420/85R28, rear 520/85R38. Construction: Standardtraktor. Rated output across the McCormick range ranges from 8.1 to 230 hp; the MC Power6 120 sits in the middle of that range with 117 hp. Its immediate neighbours are the MC120 Power6 below it with 116.6 hp and the X6.125 above it with 119 hp. Unladen weight across the McCormick range ranges from 594 to 10,040 kg; here the MC Power6 120 sits in the middle of that range with 5,355 kg. 381 McCormick models across 40 series are on record.

McCormick MC Power6 – the large six-cylinder range from Argo Tractors: MC Power6 120 and 135 with 6,728 cm³, 86 to 93 kW (117 to 126 hp), low or Deluxe cab 2,610 to 2,810 mm, unladen weight 5,355 kg

The MC Power6 range sits above the CMax class at Argo Tractors and is built around a six-cylinder diesel engine of 6,728 cm³. As with the CMax, the model names 120 and 135 roughly indicate the power class in hp. Both models are available with either a lower standard cab or a taller Deluxe cab, which is reflected directly in the overall height.

Read on 3 more paragraphs

The register lists 2 versions with 86 to 93 kW (117 to 126 hp) from six-cylinder engines of 6,728 cm³, an unladen weight of 5,355 kg, a length of 4,811 mm and a width of 2,300 mm; height ranges, depending on the cab, from 2,610 mm (low cab) to 2,810 mm (Deluxe cab).

With its large-capacity six-cylinder engine the MC Power6 targets larger arable farms and contractors who need more pulling power, PTO output and hydraulic reserves than the four-cylinder CMax class offers, but not yet the scale of the X7 range, for example for heavier tillage, larger trailers and longer working days.

When buying used, check engine hours and the condition of the six-cylinder’s fuel injection, wear on clutch, gearbox and PTO, tightness of hydraulics and lift, and – depending on the cab variant – the condition of the roof, glazing and seals; parts run through the McCormick dealer network owned by Argo Tractors.

Sources: SpecCodex register, model data: McCormick MC Power6, McCormick (Argo Tractors, Hersteller)

Technical data

Engine

Power	117 hp (86 kW)correct
Cylinders	6correct
Displacement	6,728 cm³correct

Dimensions and weights

Length	4,811 mmcorrect
Width	2,300 mmcorrect
Height	2,610 mm (low cab)correct
Wheelbase	2,650 mmcorrect
Ground clearance	380 mmcorrect
Unladen weight	5,355 kgcorrect

Drivetrain and chassis

Front tyres	420/85R28correct
Rear tyres	520/85R38correct

Working data

Fuel tank capacity	265 lcorrect

Origin and approval

Construction	Standardtraktorcorrect

Where this model stands

Power-to-weight ratio: 16.1 kW/t (86 kW / 5.4 t)

Power class: Large (100–180 hp)

Stronger than 73% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the McCormick MC Power6 120 have?

The McCormick MC Power6 120 delivers 117 hp.

How much does the McCormick MC Power6 120 weigh?

The unladen weight is 5,355 kg.

What engine does the McCormick MC Power6 120 have?

6 cylinders, 6,728 cm³ displacement.

What are the dimensions of the McCormick MC Power6 120?

4,811 mm × 2,300 mm × 2,610 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
