Mcconnell Massey Ferguson MF 5200
Built: 1989–1993 · Series: 5200
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

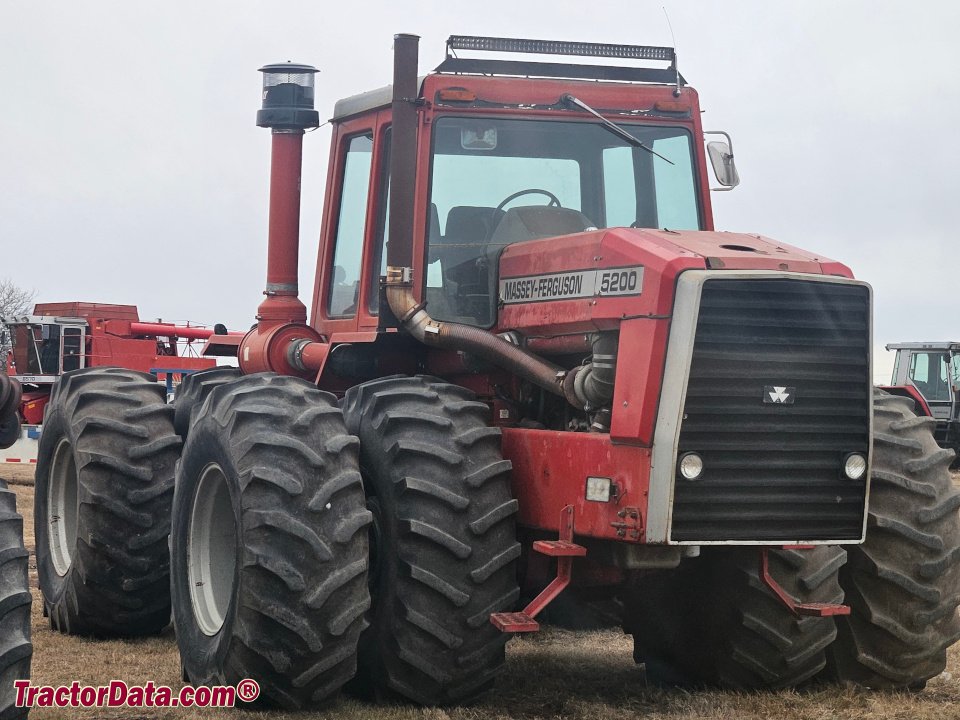

MF 5200: an articulated four-wheel-drive tractor with a six-cylinder diesel engine producing 276 kW (375 hp), an unladen weight of 16,329 kg, a 12-forward/4-reverse gearbox and matching tyres on both axles.
The MF 5200 is built as an articulated, four-wheel-drive tractor: both axles carry tyres of the same size, and steering is achieved through a pivot joint at the centre of the machine rather than a steered front axle. This layout is common on very powerful field tractors that need to spread their drawbar pull over as large a tyre contact area as possible.
Read on 3 more paragraphs
The MF 5200 is powered by a water-cooled six-cylinder diesel engine with 14,000 cm3 displacement, producing 276 kW (375 hp). The gearbox offers 12 forward and 4 reverse gears. Front and rear are fitted with the same 20.8R-38 tyre size, at an unladen weight of 16,329 kg and a wheelbase of 3,470 mm.
With a six-cylinder engine of 14 litres, 276 kW of power and a weight over sixteen tonnes, the MF 5200 belongs to the top class of articulated field tractors, used for tilling large arable areas with very wide cultivators, disc harrows and heavy ploughs. Equal-sized tyres on both axles spread the drawbar pull evenly and reduce ground pressure at this weight.
When buying an articulated tractor of this class, the articulation joint itself is the most important check point: play in its bearings and steering cylinders causes uneven tyre wear and poor tracking. Also check the six-cylinder engine for oil consumption and boost pressure, the 12-speed gearbox for shifting behaviour under load, and all four matching tyres for even wear, which indicates balanced axle loads.
Sources: SpecCodex-Register: Kennwerte des Modells MF 5200
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 375 hp (276 kW)correct |
| Cylinders | 6correct |
| Displacement | 14,000 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 3,470 mmcorrect |
|---|---|
| Unladen weight | 16,329 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V / 4Rcorrect |
| Front tyres | 20.8R-38correct |
| Rear tyres | 20.8R-38correct |
Origin and approval
| Construction | articulated framecorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.9 kW/t (276 kW / 16.3 t)
Power class: Heavy (> 180 hp)
Stronger than 98% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mcconnell Massey Ferguson MF 5200 have?
The Mcconnell Massey Ferguson MF 5200 delivers 375 hp.
How much does the Mcconnell Massey Ferguson MF 5200 weigh?
The unladen weight is 16,329 kg.
What engine does the Mcconnell Massey Ferguson MF 5200 have?
6 cylinders, 14,000 cm³ displacement, Diesel.
When was the Mcconnell Massey Ferguson MF 5200 built?
Production years: 1989–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
