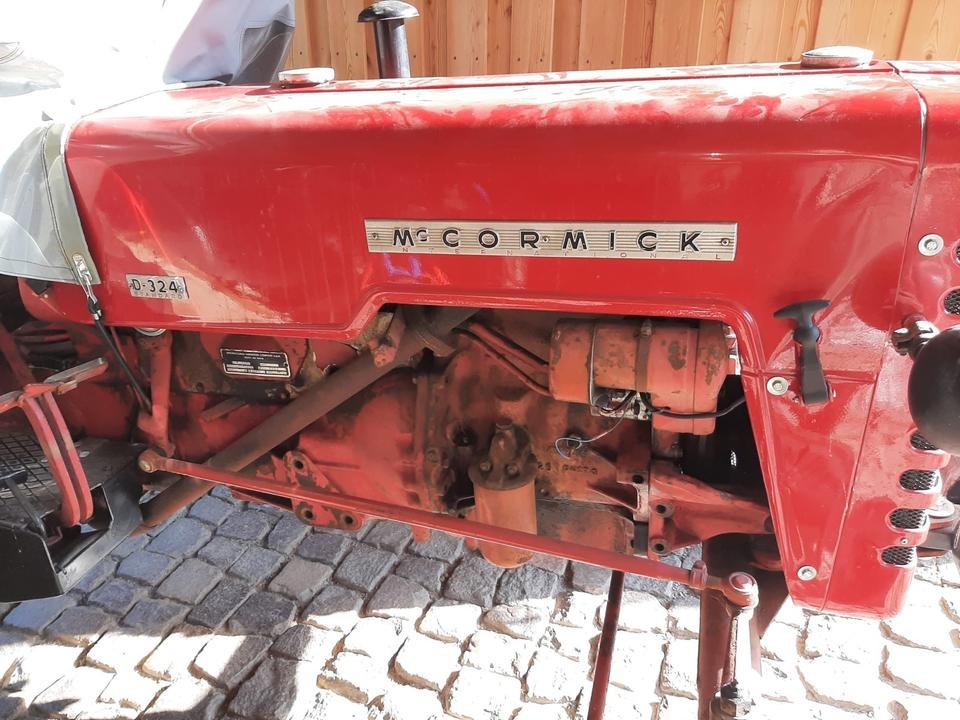

McCormick FC
Built: 1951–1952 · Series: F-Baureihe
More machines from model year 1951
McCormick F range – the four-cylinder petrol tractors FC, Super FC-C and Super-FC from International Harvester with 15.4 to 18.2 kW and 1.85 to 2 litres of displacement
The International Harvester/McCormick F range comprises the FC, Super FC-C and Super-FC models. All three carry the letter F as the shared mark of the range, while the C denotes a cab or special-equipment version and Super marks the updated, more powerful generation.
Read on 3 more paragraphs
The register lists 3 versions with 15.4 to 18.2 kW (21 to 24.8 hp) from four-cylinders of 1,853 to 2,011 cc displacement at a rated speed of 1,650 rpm. Maximum torque is 157 Nm. Operating weight ranges from 1,340 to 1,520 kg, length from 3,058 to 3,290 mm, width from 1,980 to 2,045 mm and height from 1,788 to 1,899 mm. All three models run on petrol.
The petrol drive of all three models sets the F range apart from the group's contemporary diesel ranges and places it more in the earlier phase of the standard four-cylinder tractor, before diesel became the standard drive for farm tractors. The comparatively wide track of nearly two metres points to a stable standard tractor for open field work.
On a used purchase of these historic petrol tractors, points to check include the condition of the carburettor and ignition system, the tightness of the radiator and fuel lines, wear on the clutch and gearbox, and corrosion on the chassis and mudguards. Spare parts for the F range are found through vintage dealers specialising in International Harvester.
Sources: SpecCodex register, model data: McCormick F-Baureihe
Technical data
Engine
| Fuel | petrolcorrect |
|---|---|
| Power | 21 hp (15.4 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,853 cm³correct |
| Bore | 76.2 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Compression ratio | 6.1correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,058 mmcorrect |
|---|---|
| Width | 2,032 mmcorrect |
| Height | 1,788 mmcorrect |
| Wheelbase | 2,073 mmcorrect |
| Ground clearance | 572 mmcorrect |
| Unladen weight | 1,340 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Forward gears | 4correct |
| Reverse gears | 1correct |
| Front tyres | 4.00 x 15correct |
| Rear tyres | 9 x 36correct |
| Top speed | 16 km/hcorrect |
Working data
| Fuel tank capacity | 41.6 lcorrect |
|---|
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 2,375correct |
Where this model stands
Power-to-weight ratio: 11.5 kW/t (15 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 8% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick FC have?
The McCormick FC delivers 21 hp.
How much does the McCormick FC weigh?
The unladen weight is 1,340 kg.
What engine does the McCormick FC have?
4 cylinders, 1,853 cm³ displacement, Benzin.
How fast does the McCormick FC go?
Top speed is 16 km/h.
What are the dimensions of the McCormick FC?
3,058 mm × 2,032 mm × 1,788 mm.
When was the McCormick FC built?
Production years: 1951–1952.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
