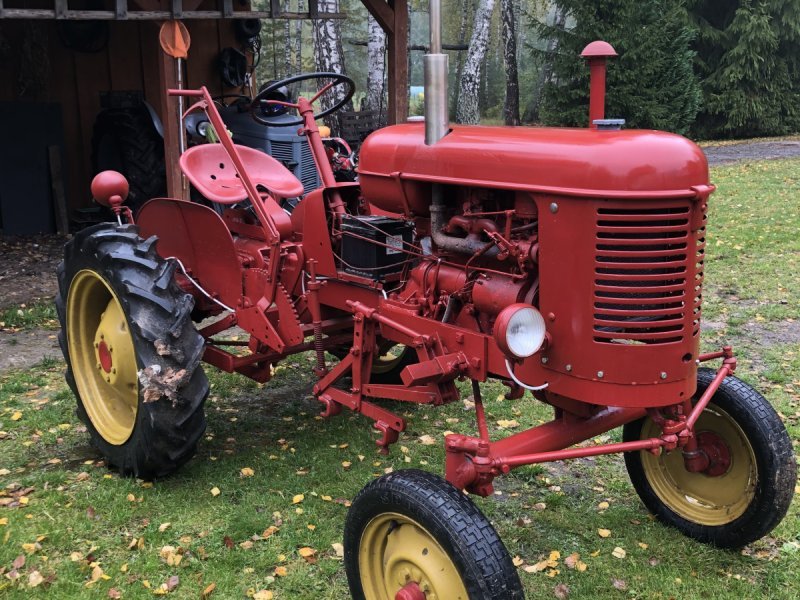

Massey Harris M-H 333
Built: 1956–1957 · Series: M-H
More machines from model year 1956
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey-Harris (1941–1958) – the Canadian tractors before Massey Ferguson: M-H 20 to 55, 81 and 82, 333 to 555, petrol, kerosene and diesel, 16 to 42 kW
Massey-Harris of Toronto was, before the merger with Harry Ferguson in 1953, the largest farm-machinery maker in the British Empire and, with the self-propelled combine of 1938, a pioneer of harvesting technology. The tractors in the register date from 1941 to 1958: the 81 and 82 of the war years, the numbered series 20, 22, 30, 33, 44 and 55 from 1946 – the 44 with over 90,000 units the most-built model – and the three-digit 333, 444 and 555 of 1956 to 1958 as the last generation before the brand merged into Massey Ferguson in 1958. The number orders the size class in ascending order, Special marks an equipment variant, 44/6 the six-cylinder of the 44 class.
Read on 3 more paragraphs
The fuels reflect North American practice of the time: many models were offered for petrol, kerosene, diesel and LPG, and kerosene operation with carburettor preheating was common in Canada. The register lists 14 versions with 15.5 to 42.4 kW, 2,027 to 6,255 cm³ with four or six cylinders, unladen weights from 1,213 to 3,295 kg, lengths from 2,880 to 3,816 mm, widths from 1,429 to 1,930 mm and heights from 1,473 to 2,115 mm; rated speeds lie between 1,350 and 2,000 rpm.
The Massey-Harris tractors were known for their red sheet metal and the Continental and Massey's own engines; in Europe they were built in France (Marquette-lez-Lille) and England (Manchester), which explains their spread on the Continent.
Used M-H tractors are sought-after collector pieces; when buying, originality, engine condition, the availability of carburettor parts on petrol and kerosene engines and the completeness of sheet metal and accessories are what count.
Sources: SpecCodex register, model data: Massey-Harris, Massey-Harris (Wikipedia)
Technical data
Engine
| Fuel | Kerosin/Benzin/Dieselcorrect |
|---|---|
| Power | 39.5 hp (29.1 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,413 cm³correct |
| Bore | 93.66 mmcorrect |
| Stroke | 123.83 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,569 mmcorrect |
|---|---|
| Width | 1,930 mmcorrect |
| Height | 1,905 mmcorrect |
| Wheelbase | 2,238 mmcorrect |
| Unladen weight | 2,565 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 Rcorrect |
| Front tyres | 5.50-16correct |
| Rear tyres | 12-28 (RC = 11-38)correct |
| Top speed | 22 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 2,748correct |
Where this model stands
Power-to-weight ratio: 11.3 kW/t (29 kW / 2.6 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Harris M-H 333 have?
The Massey Harris M-H 333 delivers 39.5 hp.
How much does the Massey Harris M-H 333 weigh?
The unladen weight is 2,565 kg.
What engine does the Massey Harris M-H 333 have?
4 cylinders, 3,413 cm³ displacement, Kerosin/Benzin/Diesel.
How fast does the Massey Harris M-H 333 go?
Top speed is 22 km/h.
What are the dimensions of the Massey Harris M-H 333?
3,569 mm × 1,930 mm × 1,905 mm.
When was the Massey Harris M-H 333 built?
Production years: 1956–1957.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
