Massey Ferguson MF 8130
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

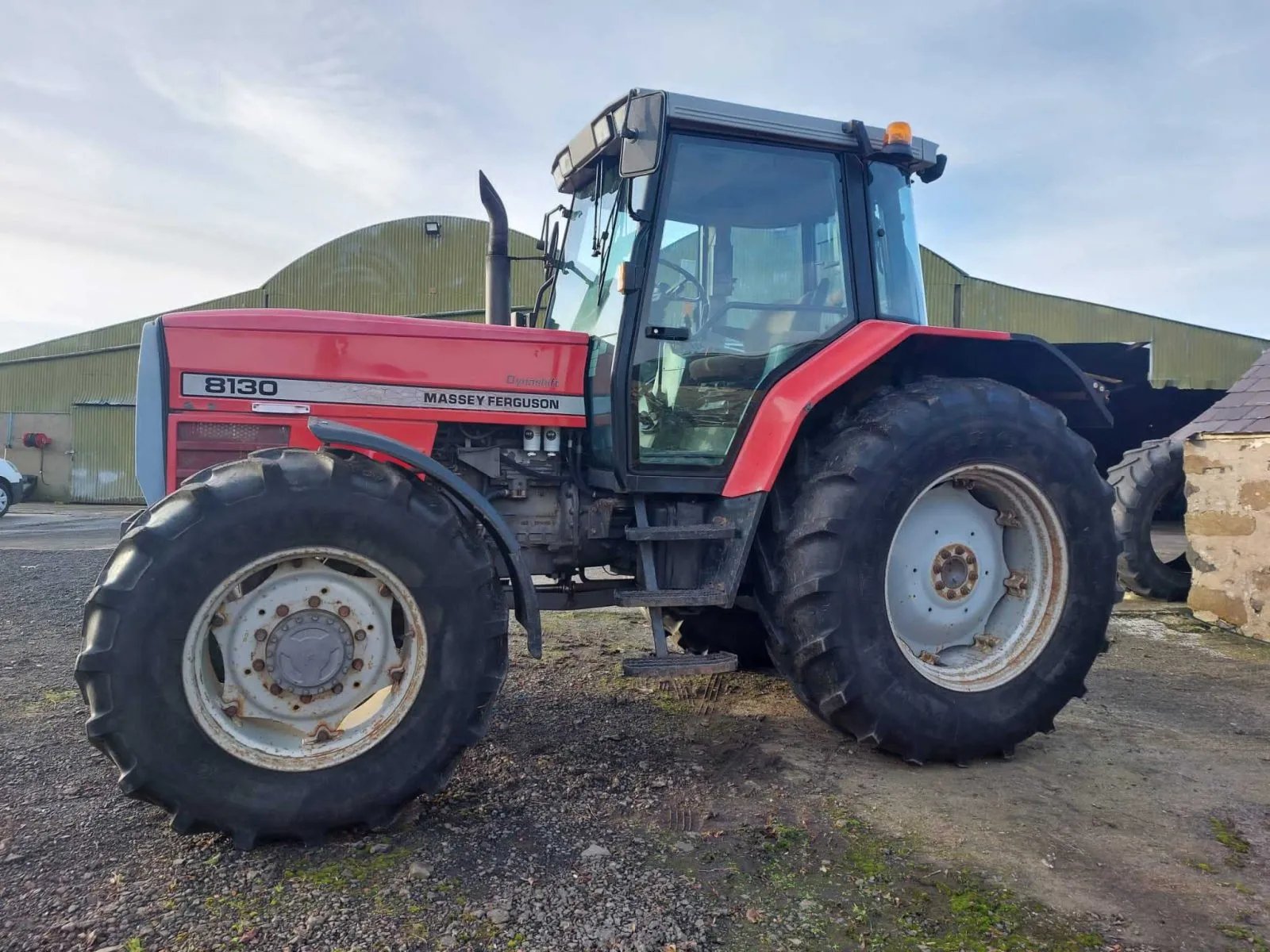

The MF 8130 is a tractor from Massey Ferguson. It belongs to the tractor series and is offered with a power output of 155 hp (114.1 kW). The engine has six cylinders and a displacement of 5 987 cm³. Overall dimensions are 5 073 mm in length, 2 306 mm in width and 2 941 mm in height.
With a rated speed of 2 200 rpm and a maximum torque of 621 Nm the engine provides high start‑up and pulling torque, suitable for heavy field work and large loads. The transmission is available as 32‑forward/32‑reverse or 48‑forward/48‑reverse, allowing fine speed adjustment to various tasks. The fuel tank holds 226 l, enabling long operation periods without refuelling. The tractor falls into the lift‑capacity category II and features a gear‑wheel speed of 540/540E/1000 rpm.
The MF 8130 is intended for typical operations in medium to heavy agriculture. Its power, high torque and extensive gearbox make it appropriate for plowing, tillage, seeding and pulling heavy implements. The size and tank capacity support work on large fields with minimal interruptions.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 155 hp (114.1 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 621 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,987 cm³correct |
Dimensions and weights
| Length | 5,073 mmcorrect |
|---|---|
| Width | 2,306 mmcorrect |
| Height | 2,941 mmcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 48V/48Rcorrect |
|---|
Working data
| Fuel tank capacity | 226 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson MF 8130 have?
The Massey Ferguson MF 8130 delivers 155 hp.
What engine does the Massey Ferguson MF 8130 have?
6 cylinders, 5,987 cm³ displacement.
What are the dimensions of the Massey Ferguson MF 8130?
5,073 mm × 2,306 mm × 2,941 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
