Massey Ferguson 8140
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

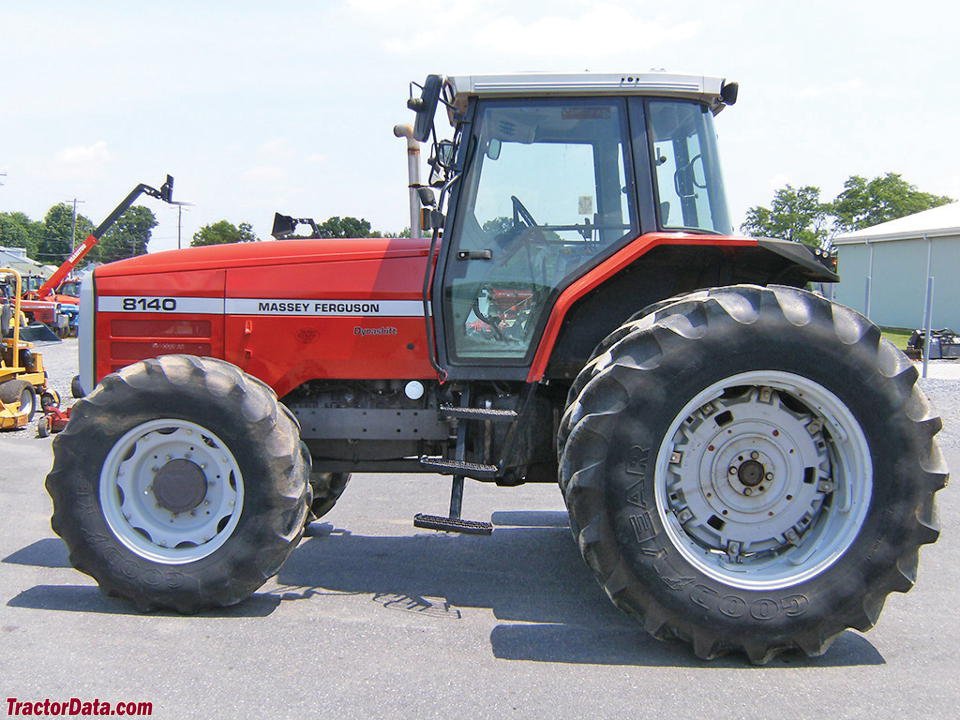

The Massey Ferguson 8140 is part of the tractor series from the manufacturer and belongs to the heavy tractor class. It is equipped with a 6‑cylinder engine with a displacement of 6 596 cm³.
It delivers 160 hp (117.8 kW) at a nominal speed of 2 200 rpm and provides a maximum torque of 637 Nm, offering sufficient pulling power for agricultural tasks. The transmission is available as 32V/32R or 48V/48R, allowing fine adjustment to varying working conditions. Dimensions are 5 038 mm in length, 2 120 mm in width and 3 034 mm in height, and the fuel tank holds 270 l, enabling long operation periods without frequent refuelling. The drawbar speed is 540/540E/1000 rpm and the lift category is Cat III, supporting the use of heavy implements.
A tractor of this size and power is typically employed for heavy field work such as ploughing, seeding and transporting large loads. The robust build and high gear count allow efficient operation over large areas, while the large fuel capacity permits extended working times without interruption.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 160 hp (117.8 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 637 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,596 cm³correct |
Dimensions and weights
| Length | 5,038 mmcorrect |
|---|---|
| Width | 2,120 mmcorrect |
| Height | 3,034 mmcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 48V/48Rcorrect |
|---|
Working data
| Fuel tank capacity | 270 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 8140 have?
The Massey Ferguson 8140 delivers 160 hp.
What engine does the Massey Ferguson 8140 have?
6 cylinders, 6,596 cm³ displacement.
What are the dimensions of the Massey Ferguson 8140?
5,038 mm × 2,120 mm × 3,034 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
