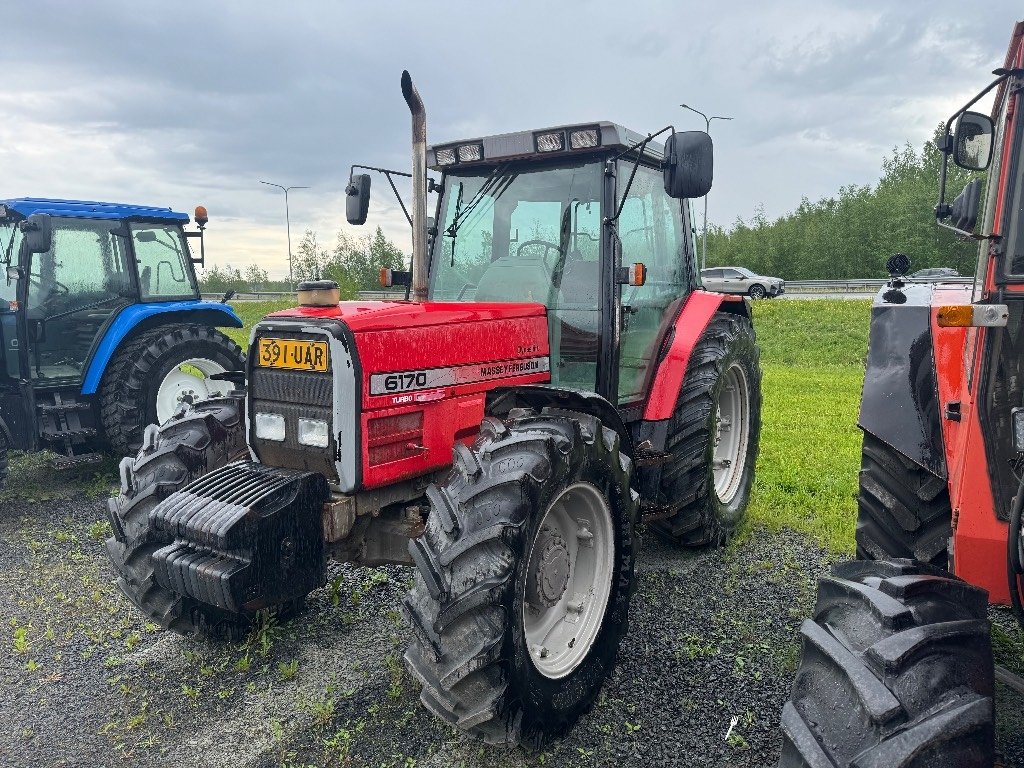

Massey Ferguson 6170
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson 6170 is part of the tractor group and is a classic field tractor with six cylinders and a displacement of 5.987 cm³. The engine delivers 110 hp (81 kW) at a rated speed of 2 200 rpm and a maximum torque of 407 Nm. It is equipped with a gearbox offering 30 forward and 30 reverse gears or a version with 32 forward and 32 reverse gears. The fuel tank capacity is 173 l and the pump speed range is 540 rpm to 1 000 rpm. Overall dimensions are 4 450 mm in length, 2 230 mm in width and 2 774 mm in height, and the lift category is Cat II.
A power output of 110 hp enables the tractor to pull heavy implements such as plows and seeders, while the torque of 407 Nm provides steady power delivery at low speeds. The extensive gear range allows fine speed adjustment to match varying field conditions, and the large 173 l tank reduces refuelling stops during long operations. The pump speed range of 540 to 1 000 rpm supports efficient use of speed‑controlled attachments.
With its size and performance, the 6170 is suited for medium to large agricultural operations that require extensive field work such as soil cultivation, sowing and harvest preparation. The robust construction and high lift category allow the use of heavy implements, and the wide gear selection offers flexibility for different working speeds.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 110 hp (81 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 407 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,987 cm³correct |
Dimensions and weights
| Length | 4,450 mmcorrect |
|---|---|
| Width | 2,230 mmcorrect |
| Height | 2,774 mmcorrect |
Drivetrain and chassis
| Gearbox | 30V/30R or 32V/32Rcorrect |
|---|
Working data
| Fuel tank capacity | 173 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 6170 have?
The Massey Ferguson 6170 delivers 110 hp.
What engine does the Massey Ferguson 6170 have?
6 cylinders, 5,987 cm³ displacement.
What are the dimensions of the Massey Ferguson 6170?
4,450 mm × 2,230 mm × 2,774 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
