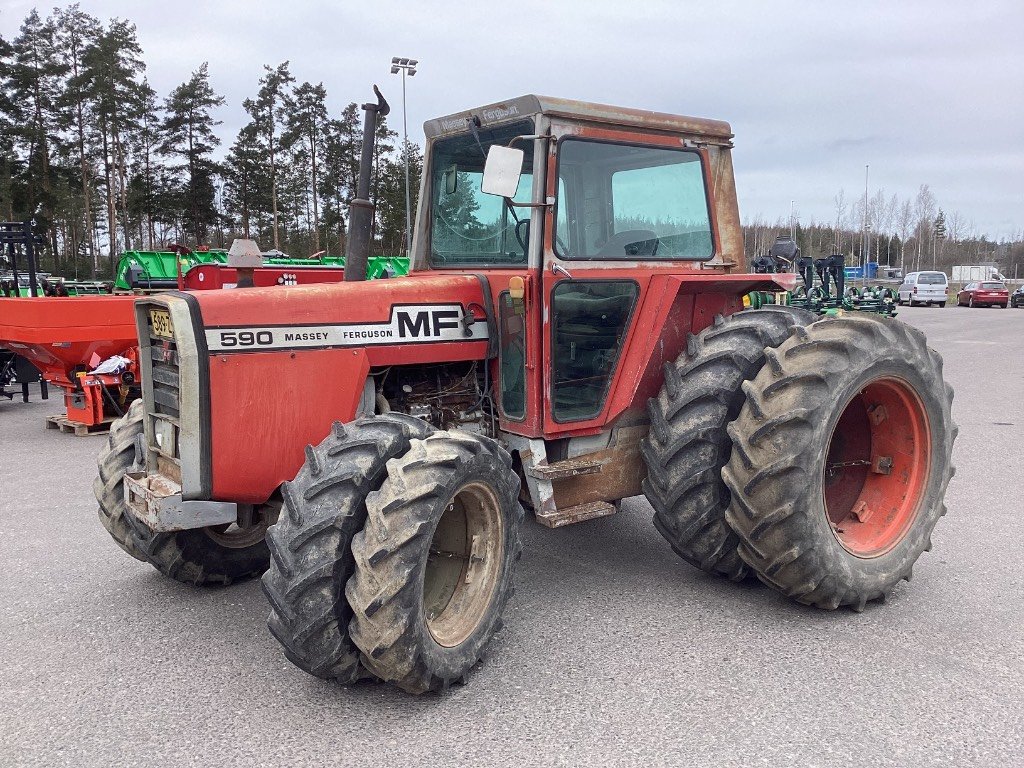

Massey Ferguson 590A
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson 590A is a tractor from the well‑known Massey‑Ferguson series. It belongs to the class of agricultural pull tractors and is offered with a power of 75 HP (55.2 kW). The engine has four cylinders and a displacement of 4,067 cm³. The gearbox is available either as an 8‑forward/2‑reverse or a 12‑forward/4‑reverse version, with a nominal speed of 2,200 rpm.
With a maximum torque of 285.5 Nm, the 590A provides sufficient pulling power for medium‑intensity field work. A width of 1,950 mm and a height of 2,540 mm give a good field of view and a stable driving position. The fuel tank holds 98.2 L, allowing long operations without frequent refuelling. The hydraulic pump speed of 540/1000 rpm supports the lifting of implements, and the hydraulic lift category Cat II indicates the permissible load for hydraulic lifting operations.
The 590A is suitable for typical tasks in the mid‑power range, such as pulling plows, seeders and other implements that require moderate pulling force. By combining adequate engine power, a robust gearbox and a generous tank capacity, it is well suited for continuous operation in field and farm settings.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 75 hp (55.2 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 285.5 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,067 cm³correct |
Dimensions and weights
| Width | 1,950 mmcorrect |
|---|---|
| Height | 2,540 mmcorrect |
Drivetrain and chassis
| Gearbox | 8V/2R or 12V/4Rcorrect |
|---|
Working data
| Fuel tank capacity | 98.2 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 590A have?
The Massey Ferguson 590A delivers 75 hp.
What engine does the Massey Ferguson 590A have?
4 cylinders, 4,067 cm³ displacement.
What are the dimensions of the Massey Ferguson 590A?
1,950 mm × 2,540 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
