Massey Ferguson 5470
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

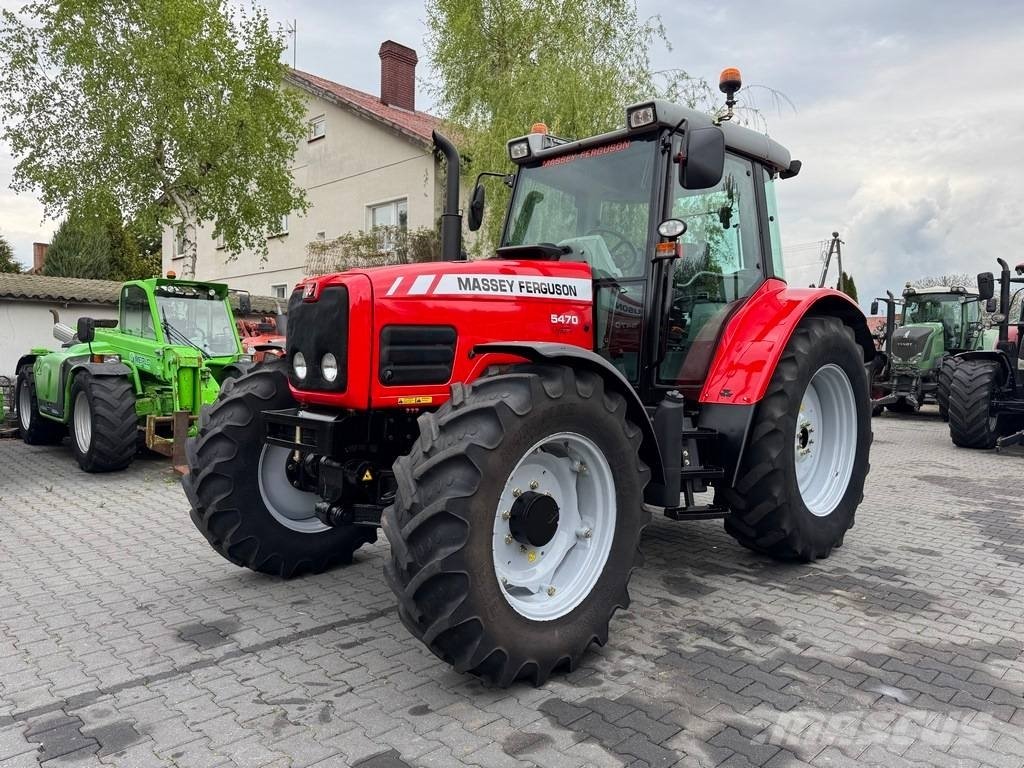

The Massey Ferguson 5470 is part of the tractor line from the manufacturer and is defined by the listed technical specifications. It is equipped with a 4‑cylinder engine of 4 399 cm³ displacement delivering a rated power of 125 hp (92 kW) at 2 200 rpm. Maximum torque is 503 Nm and the crankshaft speed ranges from 540 to 1 000 rpm. The transmission provides 16 forward and 16 reverse gears, while the top speed reaches 40 km/h. Fuel tank capacity is 145 l, width 1 991 mm and height 2 820 mm. The lift category is Cat II/III.
With 125 hp the tractor can handle heavy pulling tasks such as plows or harvesters. The high torque of 503 Nm gives strong pulling force at low speeds, essential for field work. The 16‑step gearbox allows fine speed adjustments, and the 40 km/h maximum speed is suitable for rapid travel between fields. A large 145 l tank reduces refuelling stops during long operations.
The Massey Ferguson 5470 is suited for tasks that demand high pulling power and extended range. Its dimensions and lift category enable it to carry larger implements such as mulchers, rotary cultivators or heavy sprayers. The combination of power, torque and gearbox variety makes it appropriate for extensive field work and transport duties on medium to large farms.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 125 hp (92 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 503 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,399 cm³correct |
Dimensions and weights
| Width | 1,991 mmcorrect |
|---|---|
| Height | 2,820 mmcorrect |
Drivetrain and chassis
| Gearbox | 16V/16Rcorrect |
|---|---|
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 145 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 5470 have?
The Massey Ferguson 5470 delivers 125 hp.
What engine does the Massey Ferguson 5470 have?
4 cylinders, 4,399 cm³ displacement.
How fast does the Massey Ferguson 5470 go?
Top speed is 40 km/h.
What are the dimensions of the Massey Ferguson 5470?
1,991 mm × 2,820 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
