Massey Ferguson 3680
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

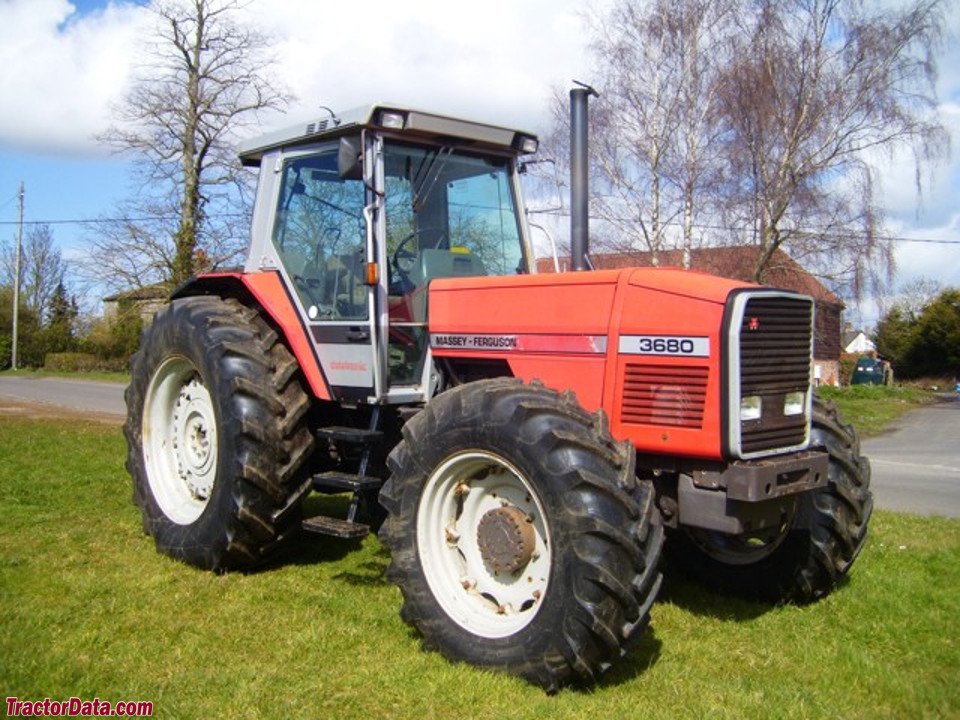

The Massey Ferguson 3680 is a tractor from the well‑known Massey‑Ferguson range. It belongs to the tractor group and is equipped with a power output of 180 hp (132.5 kW). The engine has six cylinders and a displacement of 7 368 cm³, runs at a rated speed of 2 200 rpm and delivers a maximum torque of 645 Nm. The transmission provides 16 forward and 16 reverse gears, while the drawbar speed ranges from 540 to 1 000 rpm. With an overall length of 5 165 mm, width of 2 391 mm and height of 2 891 mm and a fuel tank capacity of 260 l, the tractor is compact yet capable of covering larger areas. The Cat II/III lift category allows the use of heavy implements.
The 180 hp enable the 3680 to pull heavy ploughs and other field tools, and the high torque of 645 Nm is especially beneficial when starting with heavy loads. The 16‑step gearbox in both directions offers fine speed increments, allowing precise field work under varying conditions. A large 260 l tank reduces refuelling stops during long operations, while the compact dimensions keep ground pressure moderate and improve maneuverability in tight rows.
As no comparative data are provided for the series, the 3680 can be described as a medium‑size tractor suited for tasks such as ploughing, seeding and transporting heavy loads on medium to large fields. The combination of substantial power, extensive gearing and robust construction makes it appropriate for a wide range of agricultural applications.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 180 hp (132.5 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 645 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,368 cm³correct |
Dimensions and weights
| Length | 5,165 mmcorrect |
|---|---|
| Width | 2,391 mmcorrect |
| Height | 2,891 mmcorrect |
Drivetrain and chassis
| Gearbox | 16V/16Rcorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Fuel tank capacity | 260 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 3680 have?
The Massey Ferguson 3680 delivers 180 hp.
What engine does the Massey Ferguson 3680 have?
6 cylinders, 7,368 cm³ displacement.
What are the dimensions of the Massey Ferguson 3680?
5,165 mm × 2,391 mm × 2,891 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
