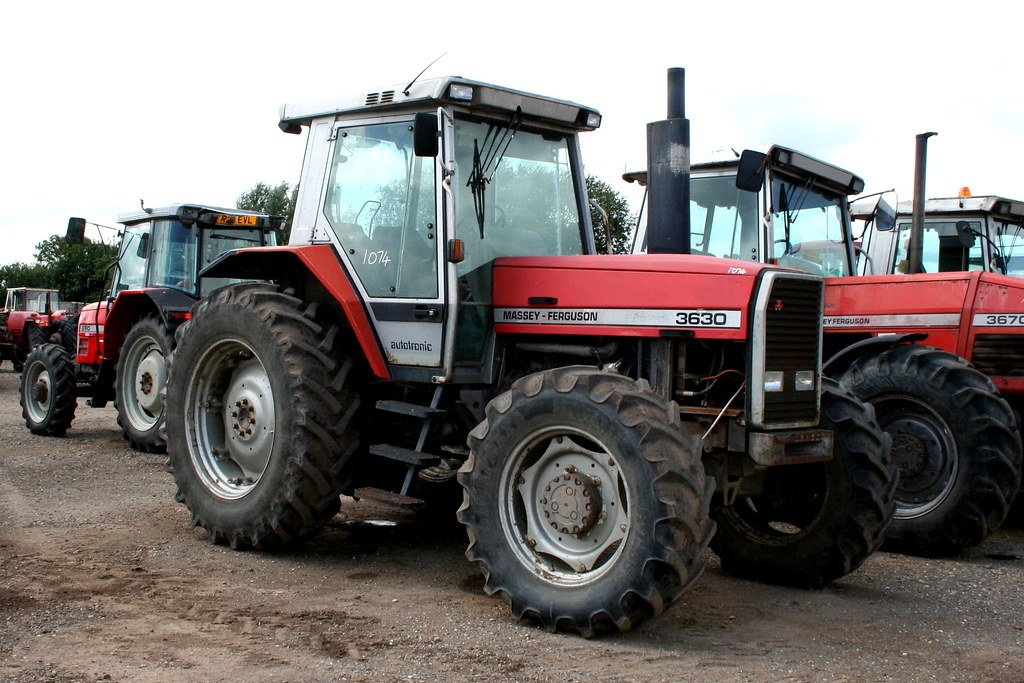

Massey Ferguson 3630
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson tractor model 3630 belongs to the manufacturer’s broad tractor family. It was developed within the classic Massey‑Ferguson range and delivers a power output of 133 hp (97.9 kW). The engine has six cylinders with a displacement of 5,797 cm³ and reaches its rated speed at 2,400 rpm. The transmission provides 16 forward and 16 reverse gears, while the drawbar speed ranges from 540 rpm to 1,000 rpm.
A torque of 447 Nm gives the tractor sufficient pulling force for heavy field tasks, and the high number of gears allows fine speed adjustment to match varying working conditions. The fuel tank holds 260 l, enabling long operating periods without frequent refuelling. Dimensions of 4,649 mm length, 2,088 mm width and 2,905 mm height, together with the lift category Cat II/III, indicate the machine’s transport footprint and its capability to lift heavy implements.
The 3630 is suited for typical operations in medium to large scale agriculture. Its power and extensive gearbox make it appropriate for pulling and operating equipment that requires high drawbar pull, while the large fuel capacity and robust construction benefit continuous work on extensive fields.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 133 hp (97.9 kW)correct |
|---|---|
| Rated speed | 2,400 rpmcorrect |
| Torque | 447 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,797 cm³correct |
Dimensions and weights
| Length | 4,649 mmcorrect |
|---|---|
| Width | 2,088 mmcorrect |
| Height | 2,905 mmcorrect |
Drivetrain and chassis
| Gearbox | 16V/16Rcorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Fuel tank capacity | 260 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 3630 have?
The Massey Ferguson 3630 delivers 133 hp.
What engine does the Massey Ferguson 3630 have?
6 cylinders, 5,797 cm³ displacement.
What are the dimensions of the Massey Ferguson 3630?
4,649 mm × 2,088 mm × 2,905 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
