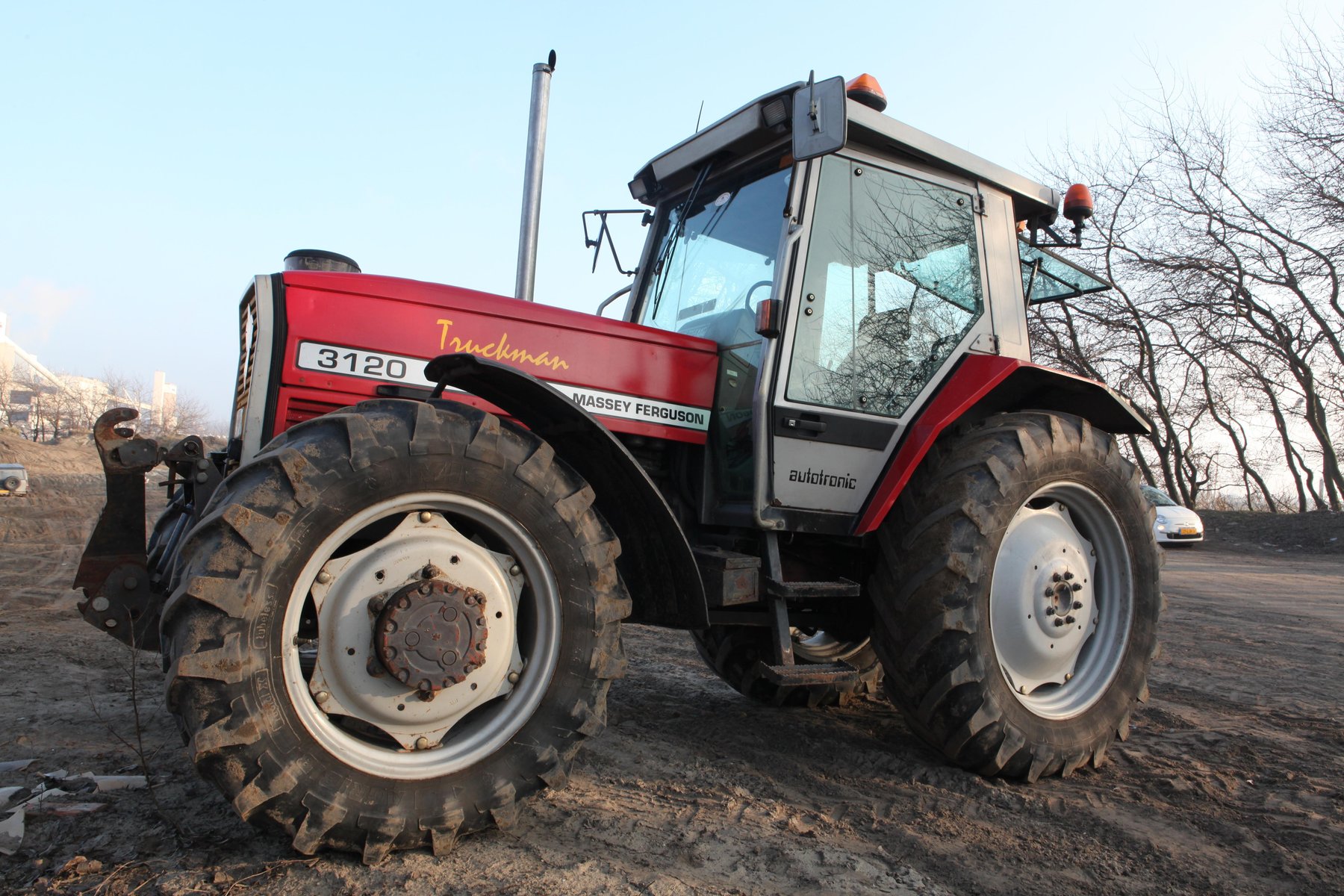

Massey Ferguson 3120
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson 3120 is part of the tractor line of the manufacturer and was built during the specified production period. It features a 6‑cylinder engine with a displacement of 5 985 cm³. Key dimensions are 4 323 mm in length, 1 899 mm in width and 2 774 mm in height. The machine is equipped with a 32‑speed forward and 32‑speed reverse gearbox and a fuel tank capacity of 173 l.
It delivers 125 hp (88,3 kW) at a rated speed of 2 200 rpm and provides a maximum torque of 452 Nm. The 32 forward gears allow fine speed adjustments in the field, while the drawbar shaft speed of 540/1000 rpm is relevant for auxiliary drives. The lift capacity is classified as Cat III, indicating the ability to handle heavy implements. The large 173 l tank enables long operating periods without frequent refuelling.
The Massey Ferguson 3120 is suited for tasks that require high pulling power and many gear ratios, such as heavy soil cultivation, plowing or pulling large implements. Its size and power make it appropriate for medium to large farms that need robust machinery for intensive field work.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 125 hp (88.3 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 452 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,985 cm³correct |
Dimensions and weights
| Length | 4,323 mmcorrect |
|---|---|
| Width | 1,899 mmcorrect |
| Height | 2,774 mmcorrect |
Drivetrain and chassis
| Gearbox | 32V/32Rcorrect |
|---|---|
| Forward gears | 32correct |
Working data
| Fuel tank capacity | 173 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Massey Ferguson 3120 have?
The Massey Ferguson 3120 delivers 125 hp.
What engine does the Massey Ferguson 3120 have?
6 cylinders, 5,985 cm³ displacement.
What are the dimensions of the Massey Ferguson 3120?
4,323 mm × 1,899 mm × 2,774 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
