Start › Tractors › Massey Ferguson › Other models › MF5711SL

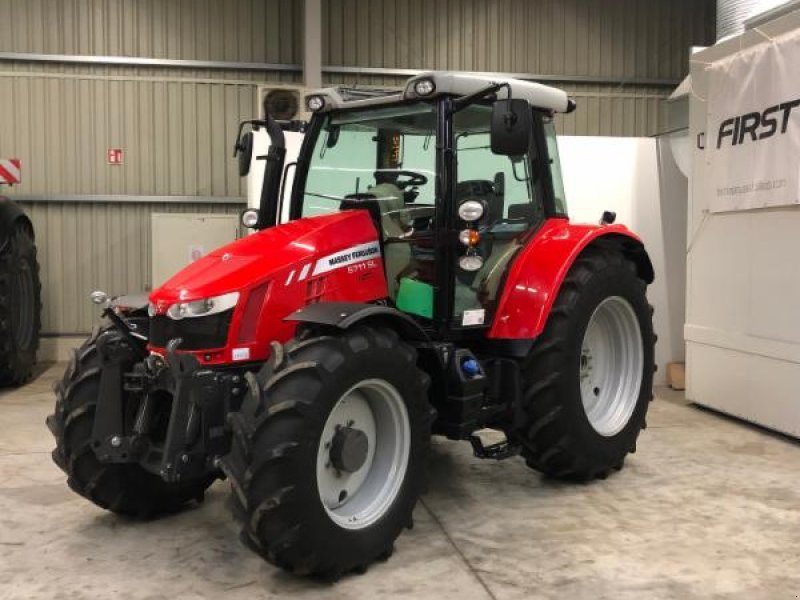

Massey Ferguson MF5711SL 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson MF5711SL is a 4WD tractor manufactured by Massey Ferguson. It belongs to the tractor category and is equipped with an AGCO Power engine. The machine features four cylinders and a displacement of 4,400 cm³, making it suitable for demanding agricultural applications.

With an output of 110 hp at a rated speed of 2,200 rpm, the tractor provides solid drive power. The maximum torque of 468 Nm is available at 1,600 rpm, ensuring good pulling force at low engine speeds. The unladen weight of 4,800 kg contributes to stability, while the wheelbase of 2,550.2 mm influences the balance between maneuverability and driving stability. The lifting capacity of 3,890 kg allows for the use of heavy mounted implements, and the pump flow rate of 57.2 l/min adequately supplies hydraulic systems.

The Dyna4 and Dyna6 transmission options with Power Shuttle Transmission enable rapid direction changes without clutch engagement. The top speed of 40 km/h is designed for transport on public roads and field operations. The fuel tank capacity of 180.2 l supports long working intervals without frequent refueling. The PTO power of 118 hp ensures that attached implements such as mowers or plows can be driven efficiently.

Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins

This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.

Read on 3 more paragraphs

The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.

By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.

Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.

Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)

Technical data

Engine

Engine modelAGCO Powercorrect
Power110 hp (81 kW)correct
Rated speed2,200 rpmcorrect
Torque468 Nmcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement4,400 cm³correct

Dimensions and weights

Wheelbase2,550.2 mmcorrect
Unladen weight4,800 kgcorrect

Drivetrain and chassis

GearboxDyna4/Dyna6correct
Gearbox typePower Shuttle Transmissioncorrect
Top speed40 km/hcorrect

Working data

Lifting capacity3,890 kgcorrect
Pump flow57.2 l/mincorrect
Fuel tank capacity180.2 lcorrect

Other data

Cab height2,828.5 mmcorrect
PTO output118 hpcorrect
System voltage12 Vcorrect

Where this model stands

Power-to-weight ratio: 16.9 kW/t (81 kW / 4.8 t)

Power class: Large (100–180 hp)

Stronger than 71% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Massey Ferguson MF5711SL have?

The Massey Ferguson MF5711SL delivers 110 hp.

How much does the Massey Ferguson MF5711SL weigh?

The unladen weight is 4,800 kg.

What engine does the Massey Ferguson MF5711SL have?

4 cylinders, 4,400 cm³ displacement.

How fast does the Massey Ferguson MF5711SL go?

Top speed is 40 km/h.

What is the PTO output of the Massey Ferguson MF5711SL?

PTO output is 118 hp.

How much does the rear linkage of the Massey Ferguson MF5711SL lift?

The rear linkage lifts 3,890 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
