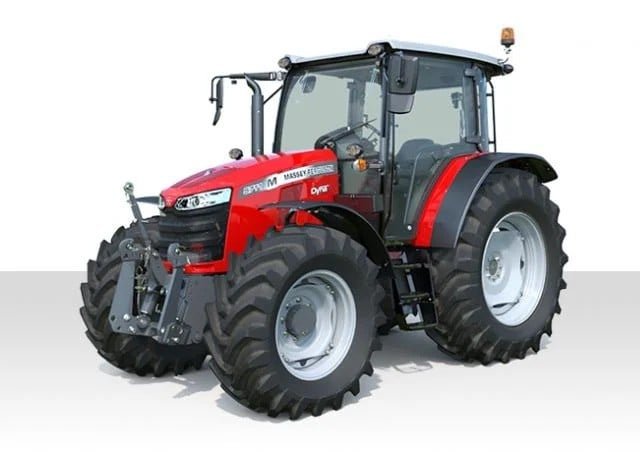

Massey Ferguson MF5711 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson MF5711 is a tractor in the Tractors group, available in the 4WD variant. It is powered by an AGCO Power engine with four cylinders and a displacement of 4,400 cm³. The rated power is 110 hp, achieved at a rated speed of 2,200 rpm. The maximum torque of 417 Nm is already available at a low speed of 1,500 rpm. This characteristic ensures that the tractor can develop high traction forces even at low engine speeds, which is advantageous for heavy soil cultivation or the use of heavy implements.

The mechanical Dyna Synchroshift transmission offers twelve forward and twelve reverse gears. This number of gears allows for fine speed gradation, enabling the operator to select the optimal engine speed for various field operations. With a top speed of 40 km/h, the tractor is suitable for transport on public roads as well as for faster field work. The curb weight of 4,010 kg and a wheelbase of 2,431 mm contribute to stability. The lift capacity of 7,710 kg allows for lifting heavy loads at the rear, while the pump flow rate of 57.2 l/min provides sufficient hydraulic oil supply for hydraulic equipment.

Within the model range, the MF5711 is positioned as a model in the mid-power class. The PTO power of 90 hp is matched to the engine output and drives implements such as mowers or balers. The fuel tank capacity of 145.4 l ensures long operating times without frequent refueling. The onboard voltage of 12 V meets the standard for most electrical components. Tractors of this size and power category are typically used for mixed operations on medium to large areas, where both traction for soil cultivation and speed for transport tasks are required.

Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins

This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.

Read on 3 more paragraphs

The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.

By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.

Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.

Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)

Technical data

Engine

Engine modelAGCO Powercorrect
Power110 hpcorrect
Rated speed2,200 rpmcorrect
Torque417 Nmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement4,400 cm³correct

Dimensions and weights

Wheelbase2,431 mmcorrect
Unladen weight4,010 kgcorrect

Drivetrain and chassis

GearboxDyna Synchroshift 12/12correct
Gearbox typeSyncro-Shuttle, mechanical gearbox shuttle levercorrect
Forward gears12correct
Reverse gears12correct
Top speed40 km/hcorrect

Working data

Lifting capacity7,710 kgcorrect
Pump flow57.2 l/mincorrect
Fuel tank capacity145.4 lcorrect

Other data

PTO output90 hpcorrect
System voltage12 Vcorrect

Frequently asked questions

How much power does the Massey Ferguson MF5711 have?

The Massey Ferguson MF5711 delivers 110 hp.

How much does the Massey Ferguson MF5711 weigh?

The unladen weight is 4,010 kg.

What engine does the Massey Ferguson MF5711 have?

4 cylinders, 4,400 cm³ displacement.

How fast does the Massey Ferguson MF5711 go?

Top speed is 40 km/h.

What is the PTO output of the Massey Ferguson MF5711?

PTO output is 90 hp.

How much does the rear linkage of the Massey Ferguson MF5711 lift?

The rear linkage lifts 7,710 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
