Massey Ferguson MF5710 4WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

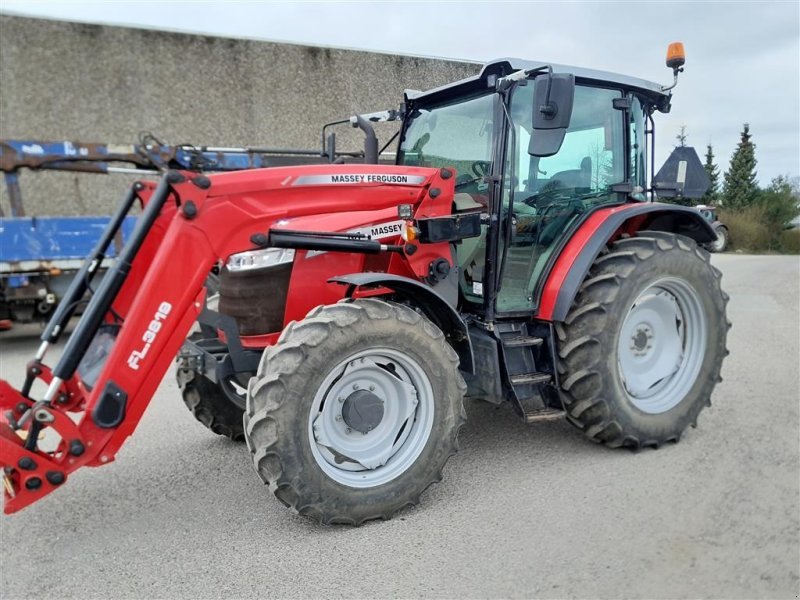

The Massey Ferguson MF5710 is a tractor in the tractor category, manufactured by Massey Ferguson. Designed as a four-wheel drive (4WD) variant, this model targets users who require stable pulling power and good traction on various terrains. The design is based on a mechanical transmission and a four-cylinder engine intended for agricultural use.
The AGCO Power engine with a displacement of 4,400 cm³ delivers an output of 100 hp at a rated speed of 2,200 rpm. The maximum torque of 410.1 Nm is available at a low 1,500 rpm, ensuring rapid acceleration and high pulling power during heavy soil cultivation. The curb weight of 4,010 kg supports stability when pulling implements. The Dyna Synchroshift transmission offers twelve forward and twelve reverse gears, allowing flexible adaptation to various working speeds. The top speed is 40 km/h, while the PTO power of 80 hp ensures the operation of implements such as mowers or manure spreaders.
Within the model range, the MF5710 is positioned as a model with a lifting capacity of 7,710 kg and a pump flow rate of 57.2 l/min. These values are crucial for operating hydraulic implements and determine the loads that can be lifted on the rear frame. The fuel tank capacity of 145.4 l ensures long working intervals without frequent refueling. The system voltage of 12 V meets the standard for the electrical supply of lighting and control units.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Engine model | AGCO Powercorrect |
|---|---|
| Power | 100 hp (75 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 410.1 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,400 cm³correct |
Dimensions and weights
| Wheelbase | 2,431 mmcorrect |
|---|---|
| Unladen weight | 4,010 kgcorrect |
Drivetrain and chassis
| Gearbox | Dyna Synchroshift 12/12correct |
|---|---|
| Gearbox type | Syncro-Shuttle, mechanical gearbox shuttle levercorrect |
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Top speed | 40 km/hcorrect |
Working data
| Lifting capacity | 7,710 kgcorrect |
|---|---|
| Pump flow | 57.2 l/mincorrect |
| Fuel tank capacity | 145.4 lcorrect |
Other data
| PTO output | 80 hpcorrect |
|---|---|
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 18.7 kW/t (75 kW / 4 t)
Power class: Large (100–180 hp)
Stronger than 67% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF5710 have?
The Massey Ferguson MF5710 delivers 100 hp.
How much does the Massey Ferguson MF5710 weigh?
The unladen weight is 4,010 kg.
What engine does the Massey Ferguson MF5710 have?
4 cylinders, 4,400 cm³ displacement.
How fast does the Massey Ferguson MF5710 go?
Top speed is 40 km/h.
What is the PTO output of the Massey Ferguson MF5710?
PTO output is 80 hp.
How much does the rear linkage of the Massey Ferguson MF5710 lift?
The rear linkage lifts 7,710 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
