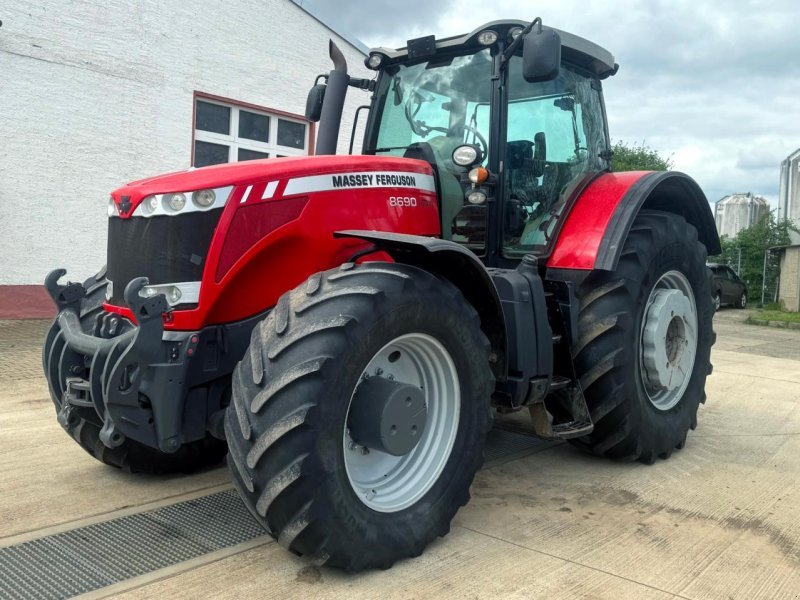

Massey Ferguson MF 8690
Built: 2009 · Series: MF 8600
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson MF 8600: the MF 8690 with a six-cylinder diesel engine, 8,400 cm³ displacement, 340 hp/250 kW output, 1,540 Nm torque and an unladen weight of 10,300 kg
Within Massey Ferguson's line-up, the MF 8600 series formed the class of heavy field tractors for large-scale farms that need high pulling power for wide tillage implements and heavy trailers. Tractors of this size sit at the upper end of the standard-tractor market, before crawler or system tractors take over.
Read on 3 more paragraphs
The MF 8690 carries a water-cooled six-cylinder diesel engine with 8,400 cm³ displacement, producing 340 hp, or 250 kW, at a rated speed of 2,200 rpm, with 1,540 Nm of torque. At an unladen weight of 10,300 kg and a permissible gross weight of 18,000 kg, there is ample margin for implements and ballast, and the design top speed of 50 km/h allows brisk road transport between fields.
At 50 km/h, the MF 8690 sits at the upper limit of what Germany's driving licence category T allows for tractors up to 60 km/h, well above the speed of classic field tractors. A six-cylinder engine of 8.4 litres with 1,540 Nm of torque is built for pulling power at low revs, as demanded by large cultivators, ploughs and trailers under full load.
On a heavy six-cylinder field tractor of this power class, it is worth checking the clutch and gearbox for wear from full-load operation, and the condition of the hydraulic pumps supplying implements and auxiliary circuits. Tyre condition and axle bearings are further key checks before purchase, given a weight of over 10 tonnes.
Sources: SpecCodex-Register: Kennwerte des Modells MF 8690, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 340 hp (250 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 1,540 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 8,400 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,670 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 3,450 mmcorrect |
| Wheelbase | 3,100 mmcorrect |
| Unladen weight | 10,300 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | stufenloses Getriebecorrect |
| Front tyres | 620/65R34correct |
| Rear tyres | 710/75R42correct |
| Top speed | 50 km/hcorrect |
Working data
| Fuel tank capacity | 590 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 24.3 kW/t (250 kW / 10.3 t)
Power class: Heavy (> 180 hp)
Stronger than 98% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 8690 have?
The Massey Ferguson MF 8690 delivers 340 hp.
How much does the Massey Ferguson MF 8690 weigh?
The unladen weight is 10,300 kg.
What is the gross vehicle weight of the Massey Ferguson MF 8690?
18,000 kg.
What engine does the Massey Ferguson MF 8690 have?
6 cylinders, 8,400 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 8690 go?
Top speed is 50 km/h.
What are the dimensions of the Massey Ferguson MF 8690?
5,670 mm × 2,550 mm × 3,450 mm.
When was the Massey Ferguson MF 8690 built?
Production years: 2009?.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
