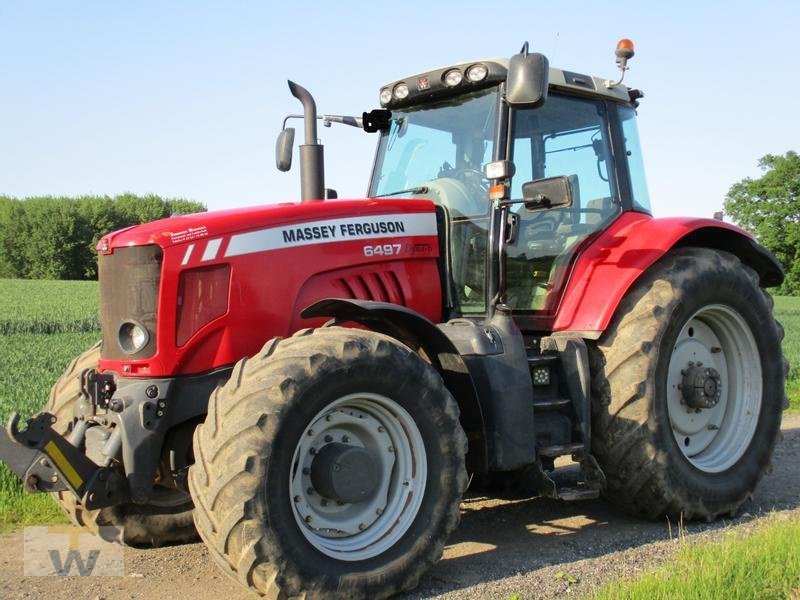

Massey Ferguson MF 6497 4WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson 6497 is a tractor in the tractor group, configured in the 4WD variant. The model belongs to the 6497 series and is produced by the manufacturer Massey Ferguson. The design is based on a six-cylinder engine with the model code 74 CTA and a displacement of 7,400.4 cm³. The rated speed is 2,200 rpm, with a maximum torque of 737 Nm. The dimensions include a length of 5,440 mm, a width of 2,280 mm, and a height of 3,096 mm. The wheelbase is 2,996 mm, while the empty weight is 7,800 kg. These dimensions define the physical limits of the vehicle in road traffic and in the field.
The Dyna-6 transmission offers 24 forward and 24 reverse gears, enabling fine speed gradations for different soil conditions. The top speed of 40.1 km/h allows for quick transfers between work sites. With a lifting capacity of 7,120 kg, the Category III rear linkage is designed for heavy implements. The pump flow rate of 110.2 l/min at a hydraulic pressure of 200 bar ensures that hydraulic functions operate quickly even under load. The PTO power of 165 hp at speeds of 540/1,000 rpm drives trailed equipment. The tank capacity of 355.1 l supports long working intervals without frequent refueling stops.
Within the series, the Massey Ferguson 6497 occupies a specific position. The number of 24 forward and 24 reverse gears in the Dyna-6 transmission provides high flexibility for field work. The combination of high torque of 737 Nm and PTO power of 165 hp is suitable for demanding soil cultivation and heavy draft work. The tire sizes of 14.9R30 at the front and 18.4R42 at the rear ensure the necessary traction for this weight of 7,800 kg. The turning radius of 5,060 mm influences maneuverability on small fields. These technical values define the practical application range of the tractor.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| MF 6497 | 2006-2009 | 160 | e13*74/150*2001/3*0095*06 | Official register |
| ● MF 6497 | — | — | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Engine model | 74 CTAcorrect |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 737 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,400.4 cm³correct |
| Aspiration | wastegatecorrect |
Dimensions and weights
| Length | 5,440 mmcorrect |
|---|---|
| Width | 2,280 mmcorrect |
| Height | 3,096 mmcorrect |
| Wheelbase | 2,996 mmcorrect |
| Unladen weight | 7,800 kgcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 24V/24Rcorrect |
|---|---|
| Gearbox type | Dyna-6correct |
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | front 14.9R30 rear 18.4R42correct |
| Top speed | 40.1 km/hcorrect |
| Turning radius | 5,060 mmcorrect |
Working data
| Lifting capacity | 7,120 kgcorrect |
|---|---|
| Pump flow | 110.2 l/mincorrect |
| Hydraulic pressure | 200 barcorrect |
| Fuel tank capacity | 355.1 lcorrect |
Other data
| Cab height | 3,048 mmcorrect |
|---|---|
| Linkage category | Cat IIIcorrect |
| PTO output | 165 hpcorrect |
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much does the Massey Ferguson MF 6497 weigh?
The unladen weight is 7,800 kg.
What engine does the Massey Ferguson MF 6497 have?
6 cylinders, 7,400 cm³ displacement.
How fast does the Massey Ferguson MF 6497 go?
Top speed is 40.1 km/h.
What is the PTO output of the Massey Ferguson MF 6497?
PTO output is 165 hp. PTO speeds: 540/1000 rpm.
How much does the rear linkage of the Massey Ferguson MF 6497 lift?
The rear linkage lifts 7,120 kg.
What are the dimensions of the Massey Ferguson MF 6497?
5,440 mm × 2,280 mm × 3,096 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
