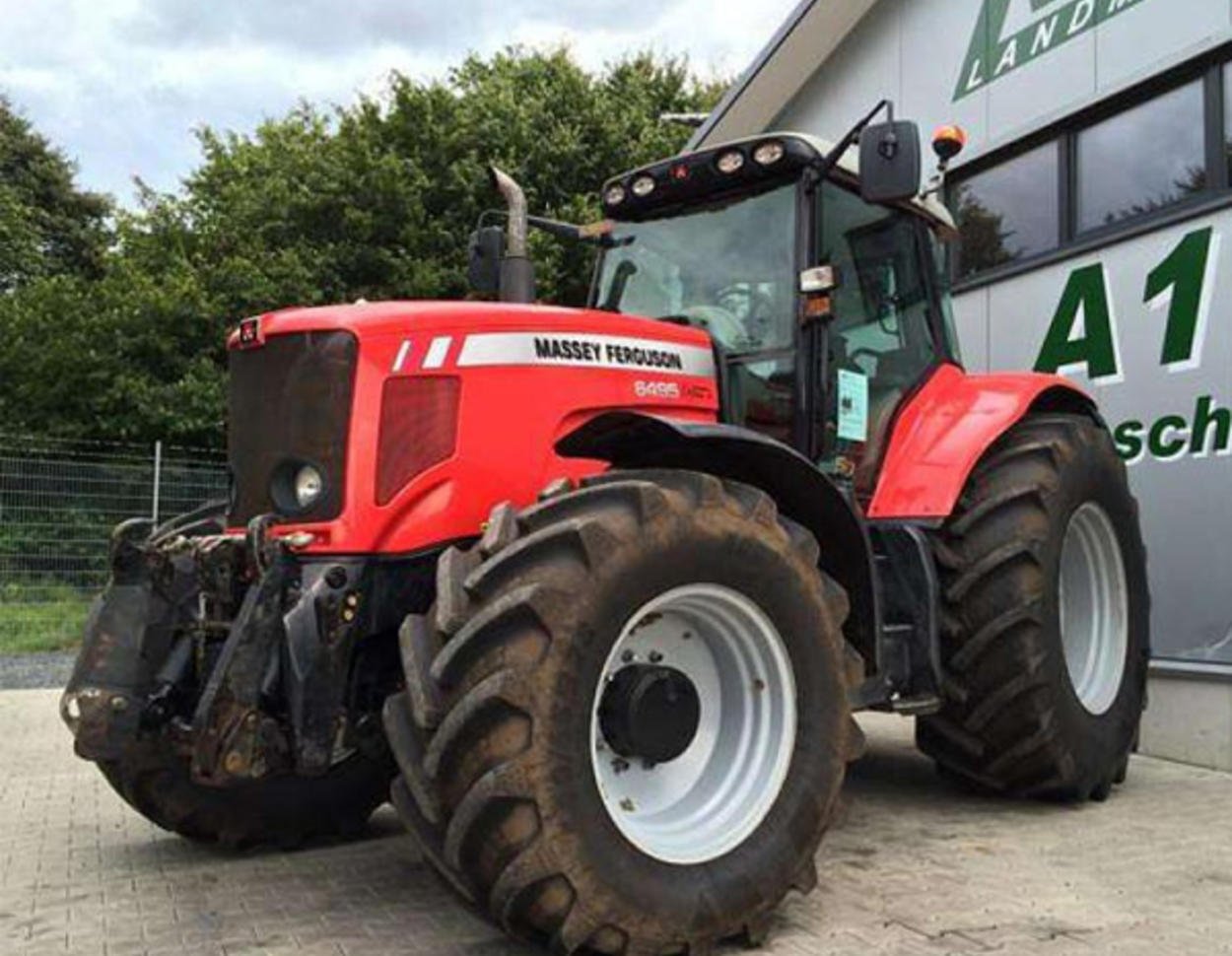

Massey Ferguson MF 6495 2WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Ferguson 6495 is a tractor in the tractor group, available in a two-wheel-drive variant. The model is powered by a six-cylinder diesel engine designated 66 CTA, which has a displacement of 6,600.7 cm³. The rated power is 185 hp at a rated speed of 2,200 rpm. The maximum torque is 713 Nm. The machine is equipped with a turbocharger with a wastegate. The external dimensions are 5,440 mm in length, 2,334.8 mm in width, and 3,095 mm in height. The wheelbase measures 2,996.2 mm.
The curb weight of 6,475 kg influences traction and permissible axle loads during field operations. The Dyna-6 transmission offers 24 forward gears and 24 reverse gears, allowing for fine speed gradations for various working speeds. The top speed is 40.1 km/h. Hydraulic supply for implements is provided by a pump flow rate of 110.2 l/min. The lifting capacity of the Category III three-point hitch is 7,480 kg, enabling the use of heavy implements. The PTO operates at 540 or 1,000 rpm and delivers a power of 155 hp. The fuel tank holds 355.1 l.
Within the series, the MF 6495 is positioned as a model with high power capacity. The combination of high torque and the ability to move heavy implements via the 7,480 kg lifting capacity makes it suitable for demanding tillage and transport tasks. The large tank capacity of 355.1 l supports long working intervals without frequent refueling. The number of 24 forward gears in the Dyna-6 transmission ensures that the engine speed can be kept in the optimal range, regardless of the selected travel speed. The PTO power of 155 hp ensures that even power-intensive implements such as large mowers or manure spreaders can be adequately driven.
Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins
This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.
Read on 3 more paragraphs
The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.
Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| MF 6495 | 2007-2011 | 146 | e13*74/150*2001/3*0078*06 | Official register |
| ● MF 6495 | — | 136.2 | — | Reference work (Wikipedia/Wikibooks) |
| MF 6495 | — | 136.2 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Engine model | 66 CTAcorrect |
|---|---|
| Power | 185 hp (136.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 713 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | wastegatecorrect |
Dimensions and weights
| Length | 5,440 mmcorrect |
|---|---|
| Width | 2,334.8 mmcorrect |
| Height | 3,095 mmcorrect |
| Wheelbase | 2,996.2 mmcorrect |
| Unladen weight | 6,475 kgcorrect |
Drivetrain and chassis
| Gearbox | 32V/32R or 24V/24Rcorrect |
|---|---|
| Gearbox type | Dyna-6correct |
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Top speed | 40.1 km/hcorrect |
Working data
| Lifting capacity | 7,480 kgcorrect |
|---|---|
| Pump flow | 110.2 l/mincorrect |
| Fuel tank capacity | 355.1 lcorrect |
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO output | 155 hpcorrect |
| PTO speed | 540/1000 rpmcorrect |
More machines with this engine (66 CTA, 6)
Where this model stands
Power-to-weight ratio: 21 kW/t (136 kW / 6.5 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 6495 have?
The Massey Ferguson MF 6495 delivers 185 hp.
How much does the Massey Ferguson MF 6495 weigh?
The unladen weight is 6,475 kg.
What engine does the Massey Ferguson MF 6495 have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Massey Ferguson MF 6495 go?
Top speed is 40.1 km/h.
What is the PTO output of the Massey Ferguson MF 6495?
PTO output is 155 hp. PTO speeds: 540/1000 rpm.
How much does the rear linkage of the Massey Ferguson MF 6495 lift?
The rear linkage lifts 7,480 kg.
What are the dimensions of the Massey Ferguson MF 6495?
5,440 mm × 2,335 mm × 3,095 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
