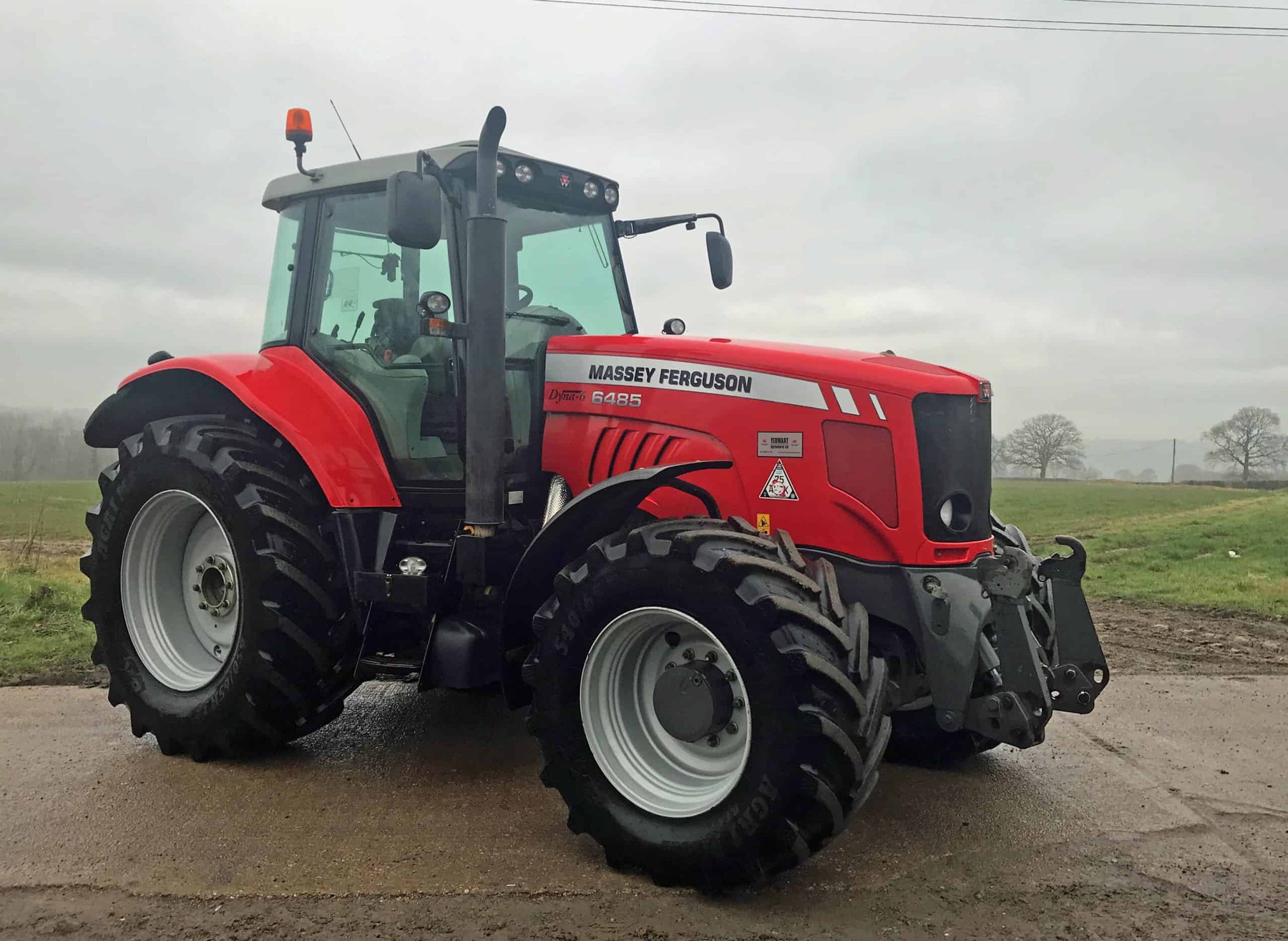

Massey Ferguson MF 6485 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson 6485 is a tractor from the all-wheel-drive variant group. As a model in this series, it is primarily used for agricultural field work and the transport of heavy loads. The design includes six cylinders with a displacement of 6,600.7 cm³, supplied with air via wastegate turbocharging. The engine's rated speed is 2,200 rpm, forming the basis for power delivery in the working range.

The maximum torque of 608 Nm ensures sufficient traction for heavy implements or trailers even at low speeds. The empty weight of 6,486 kg is distributed across the axles, with tire sizes of 14.9R30 at the front and 18.4R42 at the rear minimizing ground pressure and increasing traction. The Dyna-6 transmission offers 24 forward and 24 reverse gears, allowing fine adjustment of speed to various soil conditions. With a top speed of 40.1 km/h, the tractor is suitable for road traffic, while the lift capacity of 7,480 kg permits the use of heavy rear-mounted implements.

Within the series, the Massey Ferguson 6485 is positioned by its specific performance data. The PTO power of 130 hp at speeds of 540 and 1,000 rpm covers the requirements for common mounted machines. The tank capacity of 355.1 l enables longer work intervals without frequent refueling. The hydraulics, with a pump flow rate of 110.2 l/min and a pressure of 200 bar, reliably supply complex control units. The dimensions, with a length of 5,440 mm and a width of 2,071 mm, determine maneuverability in the field and transportability on the road.

Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins

This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.

Read on 3 more paragraphs

The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.

By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.

Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.

Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)

Versions of this model in the register

Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.

VersionBuiltkWEU type approvalOrigin
MF 6485 2008129.5e13*74/150*2001/3*0078*06Official register
MF 6485 ———Reference work (Wikipedia/Wikibooks)
● MF 6485 ———Reference work (Wikipedia/Wikibooks)

Technical data

Engine

Engine model66 CTAcorrect
Rated speed2,200 rpmcorrect
Torque608 Nmcorrect
Cylinders6correct
Displacement6,600.7 cm³correct
Aspirationwastegatecorrect

Dimensions and weights

Length5,440 mmcorrect
Width2,071 mmcorrect
Height3,095 mmcorrect
Wheelbase3,011 mmcorrect
Unladen weight6,486 kgcorrect

Drivetrain and chassis

Gearbox32V/32R or 24V/24Rcorrect
Gearbox typeDyna-6correct
Forward gears24correct
Reverse gears24correct
Tyre sizefront 14.9R30 rear 18.4R42correct
Top speed40.1 km/hcorrect
Turning radius5,060 mmcorrect

Working data

Lifting capacity7,480 kgcorrect
Pump flow110.2 l/mincorrect
Hydraulic pressure200 barcorrect
Fuel tank capacity355.1 lcorrect

Other data

Cab height3,048 mmcorrect
Linkage categoryCat IIIcorrect
PTO output130 hpcorrect
PTO speed540/1000 rpmcorrect

More machines with this engine (66 CTA, 6)

Frequently asked questions

How much does the Massey Ferguson MF 6485 weigh?

The unladen weight is 6,486 kg.

What engine does the Massey Ferguson MF 6485 have?

6 cylinders, 6,601 cm³ displacement.

How fast does the Massey Ferguson MF 6485 go?

Top speed is 40.1 km/h.

What is the PTO output of the Massey Ferguson MF 6485?

PTO output is 130 hp. PTO speeds: 540/1000 rpm.

How much does the rear linkage of the Massey Ferguson MF 6485 lift?

The rear linkage lifts 7,480 kg.

What are the dimensions of the Massey Ferguson MF 6485?

5,440 mm × 2,071 mm × 3,095 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
