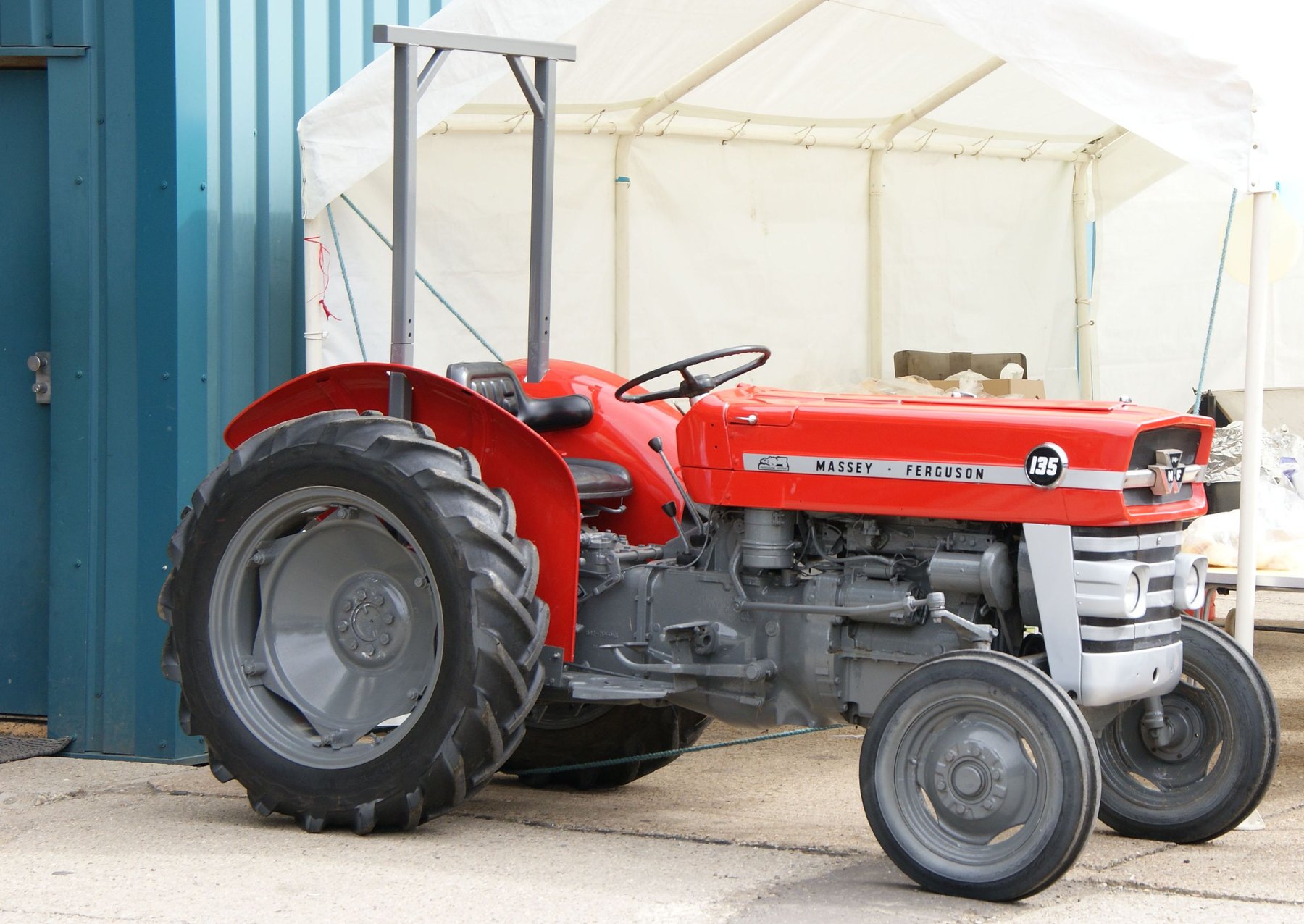

Massey Ferguson MF 135 – specifications
Series: Other models
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson – further versions: the collector page outside the named series, with Activa, Beta and the types of the 1700 to 2900 range, 190 to 227 kW, 5,801 to 8,400 cm³ displacement, up to 13.7 tonnes
This page brings together Massey Ferguson versions that the register does not assign to a named series – from the three-digit types MF 135, MF 137 and MF 139, through the four-digit ranges 1734 to 2956A, to the Activa and Beta ranges. Massey Ferguson was formed in 1953 from the merger of Massey-Harris with Harry Ferguson's tractor company and has belonged to AGCO since 1994. Unlike the brand's pure tractor ranges, the versions listed here are self-propelled agricultural machines with their own engine, carrying engine designations such as NEF, 84 ETA and 74 ETA.
Read on 3 more paragraphs
The register lists 33 versions here with outputs from 190.2 to 227.4 kW, displacements from 5,801 to 8,400 cm³, weights from 227 to 13,689 kg, lengths from 1,600 to 9,830 mm, widths from 1,630 to 3,200 mm and heights from 1,650 to 3,680 mm.
With weights from a few hundred kilograms to almost 13.7 tonnes and outputs over 300 hp, this page covers a very wide span, from smaller mounted implements to heavy self-propelled machines; Massey Ferguson thereby positions itself alongside the established agricultural machinery brands as a full-range supplier, from tractor accessories to large machinery.
On the heavy, self-propelled versions, the main points are operating hours, the condition of the engine and hydraulics, wear on tracks or tyres, and corrosion on the frame; on the lighter, implement-like types, rather the condition of the mounting points and the movement of the joints. Parts for Massey Ferguson run through the AGCO dealer network.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Ausführungen), Massey Ferguson (AGCO, Hersteller)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| MF 135 | 1964–1978 | 30.9 | — | Official register |
| ● MF 135 | — | — | — | Directory data |
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Rated speed | 2.250/mincorrect |
| Cylinders | 3 Hubraumcorrect |
| Stroke | 127 mmcorrect |
| Cooling system | water-cooledcorrect |
| Torque rise | 21 %correct |
| PTO power required | 22 kWcorrect |
Dimensions and weights
| Length | 5,180 mmcorrect |
|---|---|
| Width | 1,630 mmcorrect |
| Height | 1,650 mmcorrect |
| Unladen weight | 1,224 kgcorrect |
Drivetrain and chassis
| Top speed | 35 km/hcorrect |
|---|---|
| Turning radius | 2,960 mmcorrect |
| Drive type | rear-wheel drivecorrect |
Working data
| Number of tines | 33correct |
|---|---|
| Twine rolls | 4correct |
| Number of knife bars | 3correct |
| Twine tying | twine tie, platic or sisalcorrect |
Origin and approval
| Production period | 1,964correct |
|---|---|
| Type | BDLLcorrect |
Other data
| Asf hinten | 11correct |
|---|---|
| Bearing type | sealed ball bearingcorrect |
| Bodenfreiheit | 300/correct |
| Förderleistung der wasserpumpe | 82 l/mincorrect |
| Förderleistung der ölpumpe | 18, 9 l/mincorrect |
| Geregelter drehzahlbereich | 550 biscorrect |
| Kompressionsdruck | 31 barcorrect |
| Lamellenkühler. bohrung | 91, 44 mmcorrect |
| Länge | 3.030/correct |
| Max. einspritzdruck | 170 biscorrect |
| Ps-variante | 15, 9 mkgcorrect |
| Radstand | 1.830/correct |
| Rated engine output | 30, 9/correct |
| Verdichtungsverhältnis | 18.5correct |
| Öldruck bei nenndrehzahl | 1, 8 barcorrect |
Frequently asked questions
How much does the Massey Ferguson MF 135 weigh?
The unladen weight is 1,224 kg.
Up to what speed is the Massey Ferguson MF 135 approved?
Approved up to 35 km/h.
What are the dimensions of the Massey Ferguson MF 135?
5,180 mm × 1,630 mm × 1,650 mm.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
