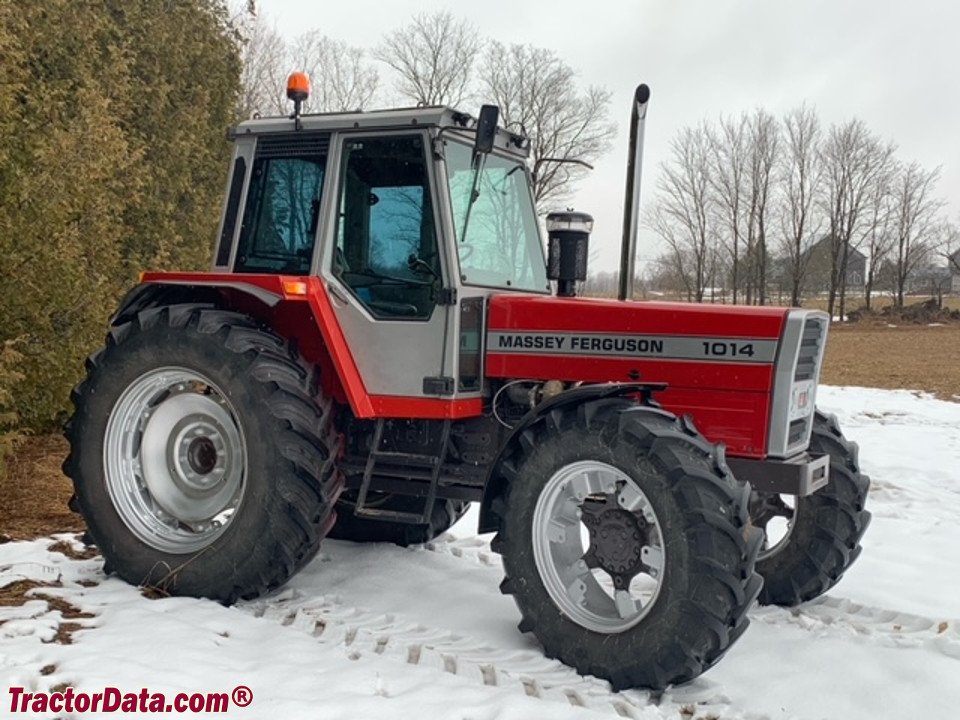

Massey Ferguson / Landini MF 1014 (A)
Built: 1978–1990 · Series: 1004
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson / Landini 1004: the MF 1014 (A) (1978-1990) with a six-cylinder diesel engine, 5,800 cm³ displacement, 92 hp/68 kW output and 400 Nm of torque
The MF 1014 (A) carries the dual brand designation Massey Ferguson and Landini, as occurred with jointly marketed series from Italian and British tractor makers in this period. Series of this kind targeted medium to larger European farms looking for a versatile six-cylinder field tractor at a competitive cost.
Read on 3 more paragraphs
The MF 1014 (A) has a water-cooled six-cylinder diesel engine with 5,800 cm³ displacement, producing 92 hp, or 68 kW, at a rated speed of 2,400 rpm, with 400 Nm of torque. At 4,525 kg, with a 2,660 mm wheelbase, 4,290 mm length and 2,160 mm width, it is a compactly built yet strong example of its power class.
A design top speed of 30 km/h places the MF 1014 (A) in Germany's driving licence category T. A six-cylinder engine of 5.8 litres at a moderate rated speed delivers even pulling power for cultivating, ploughing and PTO work on larger arable areas, without needing the bulk of an eight-cylinder unit.
When buying a used six-cylinder diesel of this age, checking the injection pump, the clutch and the PTO for wear ranks among the most important points, since spare parts for jointly marketed series are not always as readily available as for the main brand. The condition of the hydraulic cylinders and axle bearings also deserves a close inspection before agreeing on a price.
Sources: SpecCodex-Register: Kennwerte des Modells MF 1014 (A)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 92 hp (68 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 400 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,800 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,290 mmcorrect |
|---|---|
| Width | 2,160 mmcorrect |
| Height | 2,830 mmcorrect |
| Wheelbase | 2,660 mmcorrect |
| Ground clearance | 385 mmcorrect |
| Unladen weight | 4,525 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4R or 24V/8Rcorrect |
| Front tyres | 11.00-16 ASF (A: 13.6-28 AS)correct |
| Rear tyres | 16.9-38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 2,569correct |
Where this model stands
Power-to-weight ratio: 15 kW/t (68 kW / 4.5 t)
Power class: Universal (40–100 hp)
Stronger than 62% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson / Landini MF 1014 (A) have?
The Massey Ferguson / Landini MF 1014 (A) delivers 92 hp.
How much does the Massey Ferguson / Landini MF 1014 (A) weigh?
The unladen weight is 4,525 kg.
What engine does the Massey Ferguson / Landini MF 1014 (A) have?
6 cylinders, 5,800 cm³ displacement, Diesel.
How fast does the Massey Ferguson / Landini MF 1014 (A) go?
Top speed is 30 km/h.
What are the dimensions of the Massey Ferguson / Landini MF 1014 (A)?
4,290 mm × 2,160 mm × 2,830 mm.
When was the Massey Ferguson / Landini MF 1014 (A) built?
Production years: 1978–1990.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
