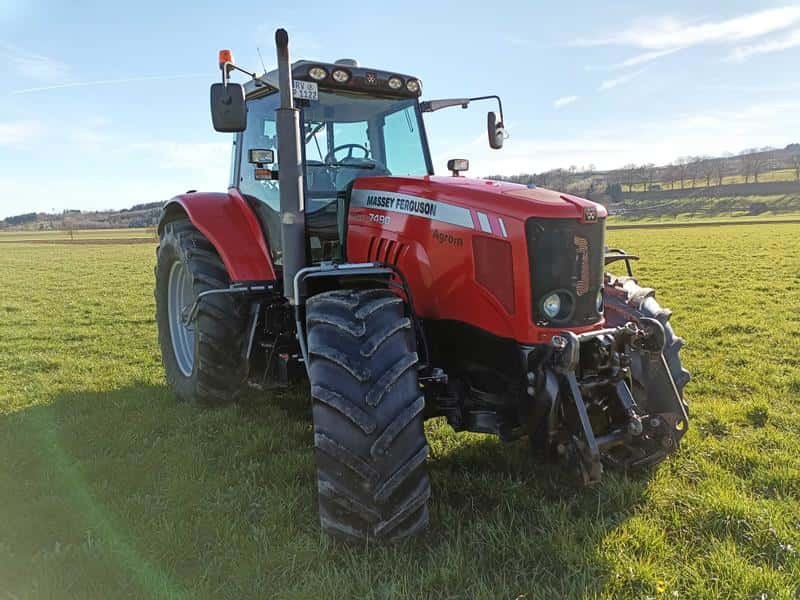

Massey Ferguson 7490 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Source: topagrar.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson 7490 all-wheel-drive variant is a heavy tractor belonging to the category of agricultural tractors. It is powered by a six-cylinder diesel engine designated 66CTA, which has a displacement of 6,587.6 cm³. The machine is equipped with a turbocharged air-to-air aftercooled system, indicating high boost pressure stability under load. The vehicle achieves a rated speed of 2,220 rpm and delivers a maximum torque of 711 Nm. These values position the tractor in the upper power range of its class, with a PTO power output specified at 140 hp.

The Dyna-VT transmission enables continuously variable speed adjustments, which is advantageous under varying soil conditions and with changing implement attachments. The maximum speed is 40.2 km/h, designed for road traffic and rapid transit on field paths. With an unladen weight of 6,849.2 kg, the machine provides significant traction mass, which is necessary for transmitting high drawbar forces to the ground. The lifting capacity of the Category III rear linkage is 4,000 kg, while the pump flow rate of 109.8 l/min at a hydraulic pressure of 199.9 bar ensures the supply of large hydraulically driven implements.

Within the model series, the Massey Ferguson 7490 occupies a specific position defined by the combination of high weight and strong hydraulic performance. The dimensions, including a length of 5,350 mm and a cab height of 3,048 mm, along with a turning radius of 1,680 mm, determine maneuverability in confined areas. The fuel tank capacity of 355.1 l allows for long working intervals without interruptions. This configuration is particularly suitable for intensive tillage and the use of heavy implements, where constant power transmission and high hydraulic performance are paramount.

Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins

This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.

Read on 3 more paragraphs

The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.

By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.

Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.

Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)

Technical data

Engine

Engine model66CTAcorrect
Rated speed2,220 rpmcorrect
Torque711 Nmcorrect
Cylinders6correct
Displacement6,587.6 cm³correct
AspirationTurbocharged Air-to-Air Aftercooledcorrect

Dimensions and weights

Length5,350 mmcorrect
Unladen weight6,849.2 kgcorrect

Drivetrain and chassis

Gearbox typeDyna-VTcorrect
Top speed40.2 km/hcorrect
Turning radius1,680 mmcorrect

Working data

Lifting capacity4,000 kgcorrect
Pump flow109.8 l/mincorrect
Hydraulic pressure199.9 barcorrect
Fuel tank capacity355.1 lcorrect

Other data

Cab height3,048 mmcorrect
Linkage categoryCat IIIcorrect
PTO output140 hpcorrect

More machines with this engine (SISU 66CTA, 2)

Frequently asked questions

How much does the Massey Ferguson 7490 weigh?

The unladen weight is 6,849 kg.

What engine does the Massey Ferguson 7490 have?

6 cylinders, 6,588 cm³ displacement.

How fast does the Massey Ferguson 7490 go?

Top speed is 40.2 km/h.

What is the PTO output of the Massey Ferguson 7490?

PTO output is 140 hp.

How much does the rear linkage of the Massey Ferguson 7490 lift?

The rear linkage lifts 4,000 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
