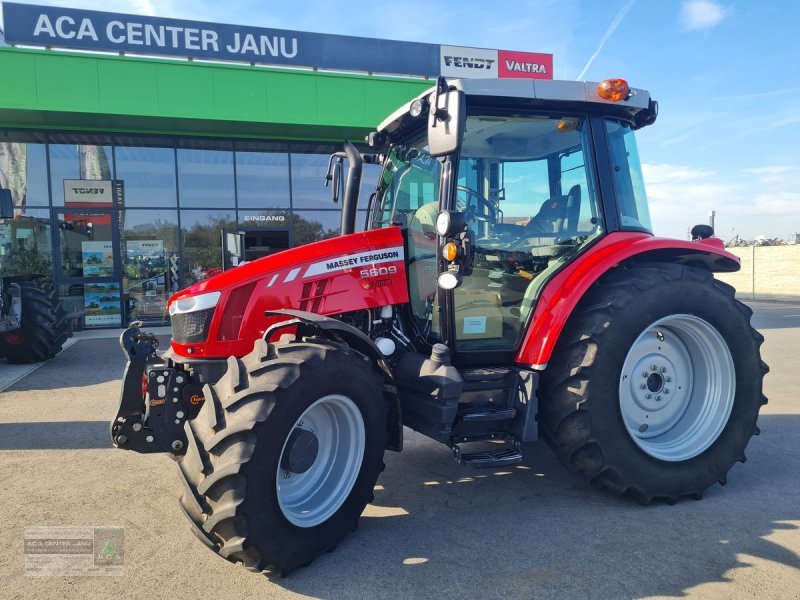

Massey Ferguson 5609
Built: 2012 · Series: 5600
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 5600: the 5609 (built 2012) with a three-cylinder diesel engine, 3,300 cm³ displacement, 90 hp/67 kW output and a weight of 4,200 kg
In Massey Ferguson's 2010s line-up, the 5600 series sat as a compact all-purpose tractor between smaller farmyard machines and large field tractors with more than four cylinders. Series of this kind target mixed farms that need a single tractor for forage harvesting, transport and light field work.
Read on 3 more paragraphs
The 5609 carries a three-cylinder diesel engine with 3,300 cm³ displacement, producing 90 hp, or 67 kW, at a rated speed of 2,200 rpm. At 4,200 kg, 4,253 mm length and 2,747 mm height, it is a compact yet strong tractor whose design top speed of 40 km/h also suits it for shorter road transport runs.
At a top speed of 40 km/h, the 5609 also falls under Germany's driving licence category T for tractors up to 60 km/h, though it sits at the upper end of typical field-tractor speeds. A three-cylinder engine of 3.3 litres is more compact and lighter than a four-cylinder unit of the same power class, at a somewhat higher load per cylinder.
When buying a used three-cylinder common-rail diesel of this age, it is worth checking the exhaust after-treatment system and the electronics, since modern engine controls are more fault-prone than older mechanical injection. The condition of the cab, hydraulic couplings and tyres also belongs on the checklist for a tractor of this use class, since wear there is easy to overlook on a quick test drive.
Sources: SpecCodex-Register: Kennwerte des Modells 5609, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 90 hp (67 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,300 cm³correct |
Dimensions and weights
| Length | 4,253 mmcorrect |
|---|---|
| Width | 2,747 mmcorrect |
| Height | 2,747 mmcorrect |
| Wheelbase | 2,460 mmcorrect |
| Unladen weight | 4,200 kgcorrect |
Drivetrain and chassis
| Gearbox | Dyna-4correct |
|---|---|
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 165 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16 kW/t (67 kW / 4.2 t)
Power class: Universal (40–100 hp)
Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson 5609 have?
The Massey Ferguson 5609 delivers 90 hp.
How much does the Massey Ferguson 5609 weigh?
The unladen weight is 4,200 kg.
What engine does the Massey Ferguson 5609 have?
3 cylinders, 3,300 cm³ displacement, Diesel.
How fast does the Massey Ferguson 5609 go?
Top speed is 40 km/h.
What are the dimensions of the Massey Ferguson 5609?
4,253 mm × 2,747 mm × 2,747 mm.
When was the Massey Ferguson 5609 built?
Production years: 2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
