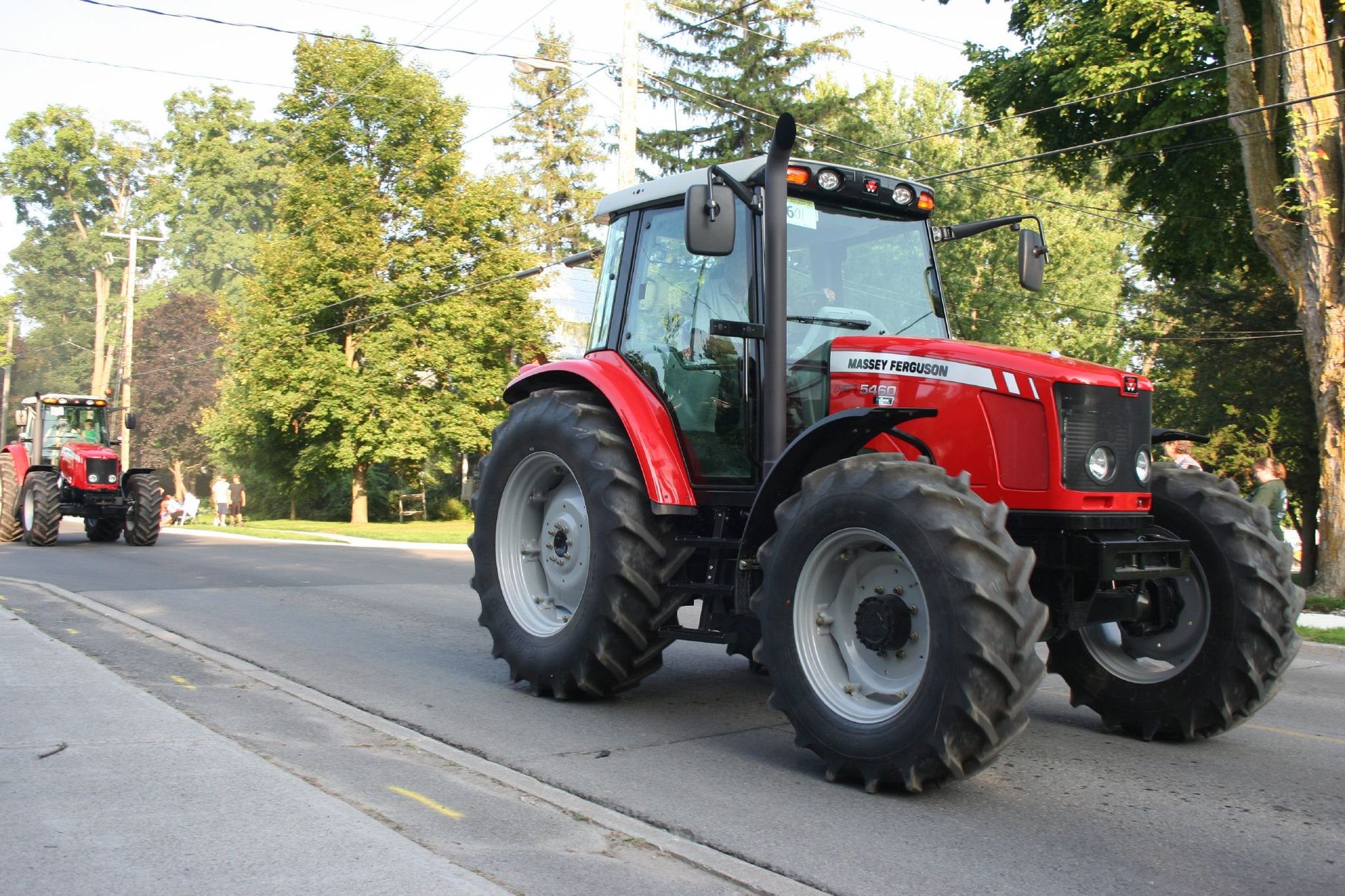

Massey Ferguson 5460SA 4WD – specifications

Series: Other models

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Massey Ferguson 5460SA is a tractor in the tractor category, configured in the 4WD variant. The model belongs to the 5460SA series and represents a specific configuration within the manufacturer Massey Ferguson's product range. The technical design aims for a balanced combination of traction and compactness, with four-wheel steering ensuring traction on various surfaces. This classification defines the operational scope for agricultural tasks requiring high ground adhesion and precise control.

The engine with a displacement of 4,401.6 cm³ reaches its power output at a rated speed of 2,200 rpm. Turbocharged / Air-to-Air charging supports power development in the lower speed range, ensuring rapid acceleration and stable load handling. With 16 forward gears and 16 reverse gears in the Speedshift transmission, the machine offers a wide spread of travel speeds suitable for both transport and slow field work. The empty weight of 3,905.4 kg is distributed across the four driven wheels to minimize wheel slip. The PTO power of 90 hp enables the operation of implements requiring constant speed and sufficient power transmission.

The hydraulic system delivers a pump flow rate of 98.4 l/min at a pressure of 210.3 bar. These values determine the speed at which lift mechanisms and control units can be actuated. The lifting capacity of 2,993 kg defines the maximum load that can be raised at the rear frame without unloading the front axle. The tank capacity of 140.1 l ensures long operating times between refueling. The cabin height of 2,011.7 mm affects the clearance height under low structures such as stable doors or bridges.

Massey Ferguson – other models: the collective page of tractors outside the named ranges, from the MF 35 and 135 through the 1000, 2000 and 3000 series to the MF 1200 (compact) and the 8700 S, 5 to 313 kW, Perkins

This page gathers the Massey Ferguson tractors the register could not assign to a named range – from the classics of the 1950s and 1960s such as the MF 35 and MF 135 from Coventry to current compact tractors and big tractors. Massey Ferguson emerged in 1953 from the merger of Massey-Harris (Toronto) with Harry Ferguson's tractor company, whose three-point hydraulics with draft control became the world standard; since 1994 the brand has belonged to AGCO, which builds the tractors in Beauvais, France, and sources the compact class from Iseki in Japan. The brand's type logic changed several times: the three-digit types 130 to 1200 of the 1960s and 1970s order the size in ascending order, the four-digit 1000 to 8000 series of the 1980s to 2000s give the range in the thousands digit and the model in the remaining digits (MF 1250 as compact, MF 3060 as mid-range), and since 2005 two digits mark the range and the last two the power step – MF 5710 as a 5700 with about 100 hp, MF 8737 as an 8700 with about 370 hp; S and the suffix Dyna-VT denote equipment and stepless transmission. The engines come from Perkins (the AD3.152 and 1104 series), AGCO Power (formerly Sisu) in the big and Iseki, Simpson (India) and Kohler in the small models.

Read on 3 more paragraphs

The register lists here 1,011 versions with 5.2 to 313 kW from one- to eight-cylinders of 1,123 to 8,419 cm³, PTO outputs from 19 to 290 hp, lift capacities from 540 to 9,950 kg, unladen weights from 670 to 12,000 kg, lengths from 2,480 to 6,200 mm and widths from 1,003 to 3,000 mm.

By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France, Scandinavia, Africa and South Asia, where the MF 240 and its Indian and Pakistani licence builds shape the market.

Used, the span is as wide as the brand: on classics originality and Perkins parts count, on compacts hydrostat and front loader, on the 5700 to 8700 operating hours, Dyna transmissions, electronics and exhaust aftertreatment; parts run through AGCO and Perkins.

Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)

Versions of this model in the register

Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.

VersionBuiltkWEU type approvalOrigin
5460SA —78,3—Directory data
● 5460SA ———Directory data

Technical data

Engine

Rated speed2,200 rpmcorrect
Displacement4,401.6 cm³correct
AspirationTurbocharged / Air-to-Aircorrect

Dimensions and weights

Unladen weight3,905.4 kgcorrect

Drivetrain and chassis

Gearbox typeSpeedshiftcorrect
Forward gears16correct
Reverse gears16correct

Working data

Lifting capacity2,993 kgcorrect
Pump flow98.4 l/mincorrect
Hydraulic pressure210.3 barcorrect
Fuel tank capacity140.1 lcorrect

Other data

Cab height2,011.7 mmcorrect
PTO output90 hpcorrect

Frequently asked questions

How much does the Massey Ferguson 5460SA weigh?

The unladen weight is 3,905 kg.

What engine does the Massey Ferguson 5460SA have?

4,402 cm³ displacement.

What is the PTO output of the Massey Ferguson 5460SA?

PTO output is 90 hp.

How much does the rear linkage of the Massey Ferguson 5460SA lift?

The rear linkage lifts 2,993 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
