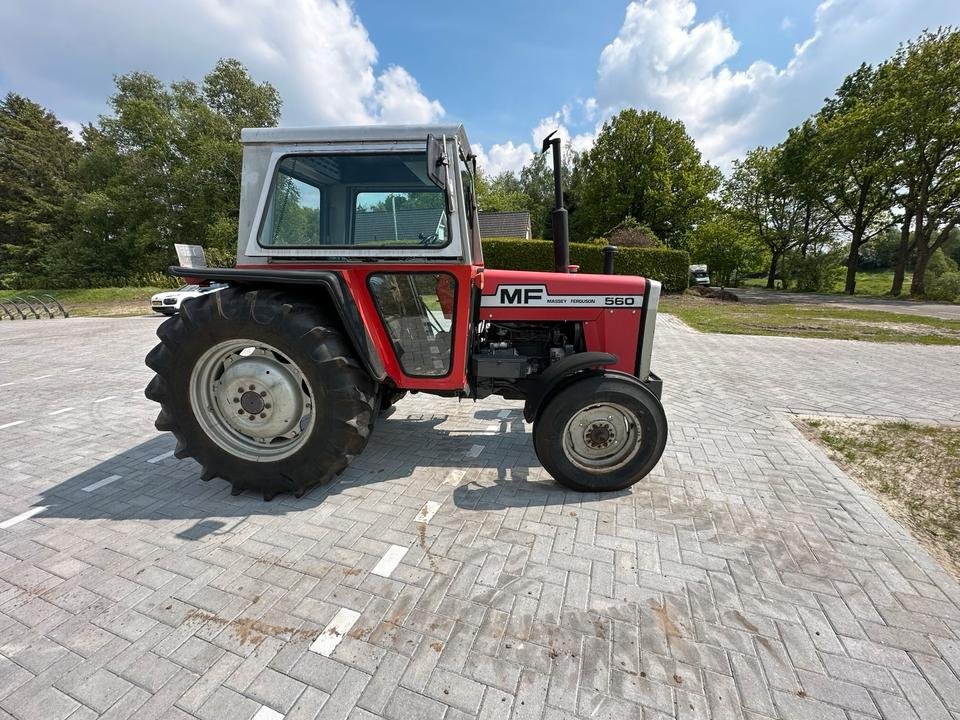

Massey Ferguson MF 560 – specifications
Built: 1976–1979 · Series: 500er-Baureihe
The Massey Ferguson MF 560 belongs to the 500er series. Production: 1976–1979. The engine delivers 56 hp (41.2 kW), has 4 cylinders, with a displacement of 3,325 cm³. Torque is 223 Nm. Rated speed is 2,000 rpm. The machine is 3,730 mm long, 1,850 mm wide and 2,330 mm high. The unladen weight is 2,770 kg. The wheelbase measures 2,180 mm. Ground clearance is 380 mm. Top speed is 25 km/h. The tank holds 60 litres. Transmission: 8V/2R or 12V/4R. The engine is water-cooled. Tyres: front 7.50-16 ASF, rear 16.9/14-28 AS. The fuel is diesel. The bore measures 91.44 mm. The stroke is 127 mm. Maximum torque is reached at 1,200 rpm. Construction: unit construction (no separate frame). Injection pressure is 170 bar. The linkage is category I/II. The 500er-Baureihe series covers 6 models. Rated output within it ranges from 47 to 88 hp; the MF 560 sits in the lower part of that range with 56 hp. Its immediate neighbours are the MF 550 below it with 47 hp and the MF 565 above it with 60 hp. Unladen weight within it ranges from 2,260 to 4,360 kg; here the MF 560 sits in the lower part of that range with 2,770 kg. 1668 Massey Ferguson models across 56 series are on record.
Data for the version built 1976–1979 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 500: the sturdier sister range to the 200 series, 47 to 88 hp, reinforced chassis and rear axles for draft work, three- and four-cylinder diesels
At the same time as the 200 series, Massey Ferguson ran the 500 series through the 1970s as a somewhat stronger parallel range, using similar engines but built for greater weight and drawbar pull.
Read on 4 more paragraphs
The register lists 6 live models, from the MF 550 to the MF 595 (A), built between 1974 and 1983. Output ranges from 34.6 to 64.8 kW, weight from 2,260 to 4,360 kg, displacement from 2,500 to 5,211 cm3, across three- and four-cylinder engines.
The noticeably higher weights compared with similarly powered 200-series models point to reinforced chassis and rear axles, built for drawbar work and heavier mounted implements.
The 500 series thus occupied a niche between the lighter 200 class and the large 1000-series tractors in Massey Ferguson's 1970s line-up.
When buying used, on the 500 series the reinforced rear axles and their bearings under heavy drawbar load, clutch and gearbox condition, and hydraulic tightness matter; rust on chassis and mudguards after years of heavy ploughing and draft work shows up especially at the implement mounting points. Parts for the widely used engine base run through the AGCO dealer network, which Massey Ferguson belongs to today. This series' three-point linkage follows ISO 730 Category II, and the PTO runs at 540 rpm for the usual draft and mounted implements.
Sources: SpecCodex register, model data: Massey Ferguson 500er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 56 hp (41.2 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 223 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,325 cm³correct |
| Bore | 91.44 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 170 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,730 mmcorrect |
|---|---|
| Width | 1,850 mmcorrect |
| Height | 2,330 mmcorrect |
| Wheelbase | 2,180 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 2,770 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V/2R or 12V/4Rcorrect |
| Front tyres | 7.50-16 ASFcorrect |
| Rear tyres | 16.9/14-28 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 60 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 14.9 kW/t (41 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 39% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
