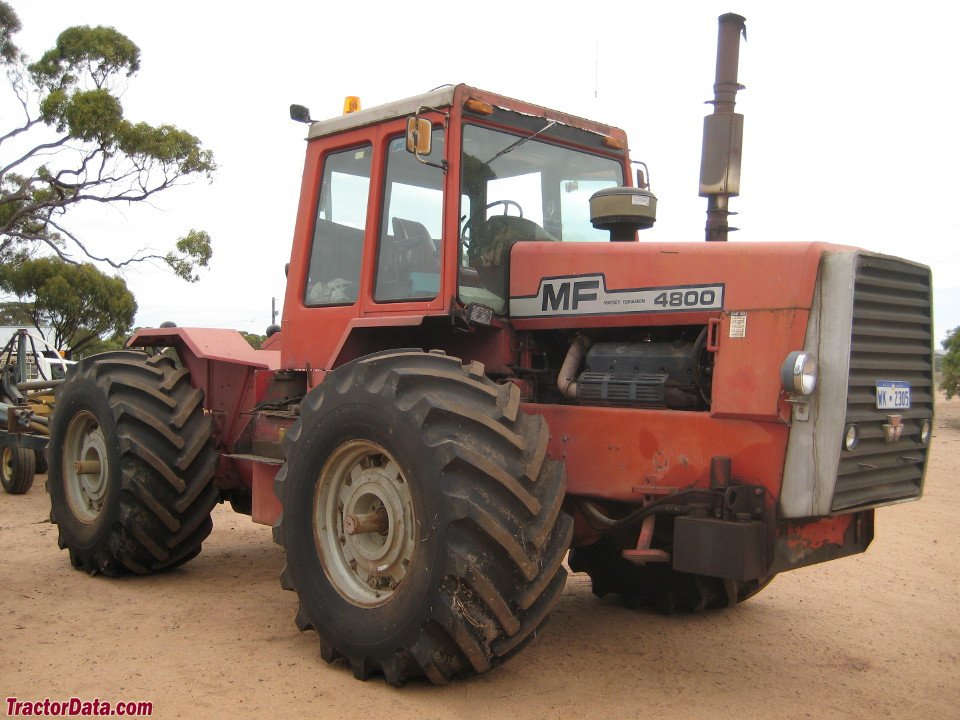

Massey Ferguson MF 4800 – specifications
Built: 1980–1986 · Series: 4000 er - Knicklenker
The Massey Ferguson MF 4800 belongs to the 4000er - Knicklenker series. Production: 1980–1986. The engine delivers 225 hp (165.5 kW), has 8 cylinders, with a displacement of 14,800 cm³. Rated speed is 2,600 rpm. The machine is 6,400 mm long, 2,700 mm wide and 3,300 mm high. The unladen weight is 11,820 kg. The wheelbase measures 3,400 mm. Top speed is 30.9 km/h. The tank holds 719.1 litres. Transmission: 18V / 6R. The engine is water-cooled. Tyres: front 20.8 R 38, rear 20.8 R 38. The fuel is diesel. The gearbox offers 18 forward gears. There are also 6 reverse gears. The 4000 er - Knicklenker series covers 4 models. Rated output within it ranges from 225 to 375 hp; the MF 4800 sits at the bottom of that range with 225 hp. Its immediate neighbours are the MF 4840 above it with 260 hp. Unladen weight within it ranges from 11,820 to 12,150 kg; here the MF 4800 sits at the bottom of that range with 11,820 kg. 1668 Massey Ferguson models across 56 series are on record.
Data for the version built 1980–1986 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 4800 to 4900 – the articulated tractors of the 4000 series from Fargo: eight-cylinders of 14.8 litres, 165.5 to 275.8 kW, up to 12,150 kg unladen weight
The MF 4800, MF 4840, MF 4880 and MF 4900 are the articulated tractors of the Massey Ferguson 4000 series, built by Steiger in Fargo, USA, for Massey Ferguson. The four-digit type code orders the power step within the range; all four models carry the same eight-cylinder block of around 14.8 litres and are steered through frame articulation and four-wheel drive.
Read on 3 more paragraphs
The register lists 4 versions with 165.5 to 275.8 kW, or 225 to 375 hp, from eight-cylinders of 14,794 to 14,800 cm³. Unladen weights range from 11,820 to 12,150 kg at a uniform length of 6,400 mm, uniform width of 2,700 mm and uniform height of 3,300 mm; all four run diesel engines at a rated speed of 2,600 rpm.
The 4000 series articulated tractors formed Massey Ferguson's big-tractor class of the 1970s and 1980s and competed directly, on the North American market, with the articulated models from Steiger, Versatile and Case; in Europe they stayed limited to large arable farms and contractors. In North America they went chiefly to large grain farms on the plains, where pulling power mattered more than manoeuvrability.
On used 4000 series articulated tractors, the condition of the articulation joint and steering cylinders, transmission and four-wheel drive, turbocharger and injection pump and rust on frame and cab count; parts are sourced through specialist Steiger and AGCO dealers.
Sources: SpecCodex register, model data: Massey Ferguson 4000er-Knicklenker, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 225 hp (165.5 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 8correct |
| Displacement | 14,800 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,400 mmcorrect |
|---|---|
| Width | 2,700 mmcorrect |
| Height | 3,300 mmcorrect |
| Wheelbase | 3,400 mmcorrect |
| Unladen weight | 11,820 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18V / 6Rcorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Front tyres | 20.8 R 38correct |
| Rear tyres | 20.8 R 38correct |
| Top speed | 30.9 km/hcorrect |
Working data
| Fuel tank capacity | 719.1 lcorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 14 kW/t (166 kW / 11.8 t)
Power class: Heavy (> 180 hp)
Stronger than 93% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · Data sources and cross-checks
