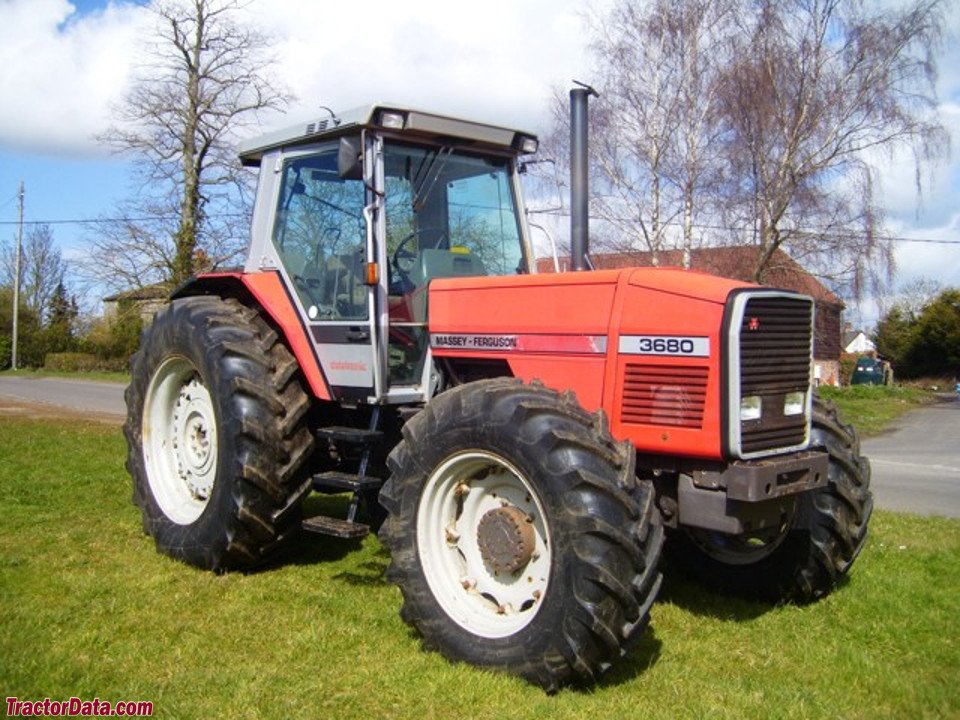

Massey Ferguson MF 3680
Built: 1989–1990 · Series: 3600er-Baureihe
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 3600: the strong sister to the 3000 series, 113 to 180 hp, six-cylinder diesels throughout at 5,797 to 7,368 cm3 displacement
As a more powerful complement to the 3000 series, Massey Ferguson positioned the 3600 series in the upper mid-range, with six-cylinder engines throughout for greater drawbar pull.
Read on 4 more paragraphs
The register lists 9 live models, from the MF 3610 to the MF 3690 (A), built between 1987 and 1995. Output ranges from 83.2 to 139.8 kW, or 113 to 180 hp, weight from 5,180 to 6,720 kg, displacement from 5,797 to 7,368 cm3.
With this positioning, the 3600 series bridged the gap between the 3000-series mid-range and the subsequent big-tractor ranges, which were increasingly fitted with electronic engine management through the 1990s.
For arable operations needing high drawbar pull but no articulated technology, the MF 3600 offered a conventional, proven alternative.
When buying used, on the six-cylinder 3600-series models, the injection system and turbocharger where fitted, wear to clutch and gearbox under sustained draft work, and the tightness of the lift hydraulics matter especially; rust on cab and mudguards after years of arable use is common too. Parts run through the global dealer network of the AGCO group, which Massey Ferguson has belonged to since the 1990s. The three-point linkage on these six-cylinder models corresponds to ISO 730 Category II to III, depending on specification, with a PTO speed of 540 or 1,000 rpm.
Sources: SpecCodex register, model data: Massey Ferguson 3600er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 180 hp (132.5 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 645 Nmcorrect |
| Speed at max. torque | 1,347 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,368 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 134 mmcorrect |
| Injection pressure | 230 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,165 mmcorrect |
|---|---|
| Width | 2,391 mmcorrect |
| Height | 2,891 mmcorrect |
| Wheelbase | 2,940 mmcorrect |
| Ground clearance | 433 mmcorrect |
| Unladen weight | 5,799 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16Rcorrect |
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Front tyres | 11.00-16 ASF (A: 16.9-30 AS)correct |
| Rear tyres | 20.8-42 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 260 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 22.8 kW/t (132 kW / 5.8 t)
Power class: Large (100–180 hp)
Stronger than 89% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 3680 have?
The Massey Ferguson MF 3680 delivers 180 hp.
How much does the Massey Ferguson MF 3680 weigh?
The unladen weight is 5,799 kg.
What engine does the Massey Ferguson MF 3680 have?
6 cylinders, 7,368 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 3680 go?
Top speed is 30 km/h.
What are the dimensions of the Massey Ferguson MF 3680?
5,165 mm × 2,391 mm × 2,891 mm.
When was the Massey Ferguson MF 3680 built?
Production years: 1989–1990.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
