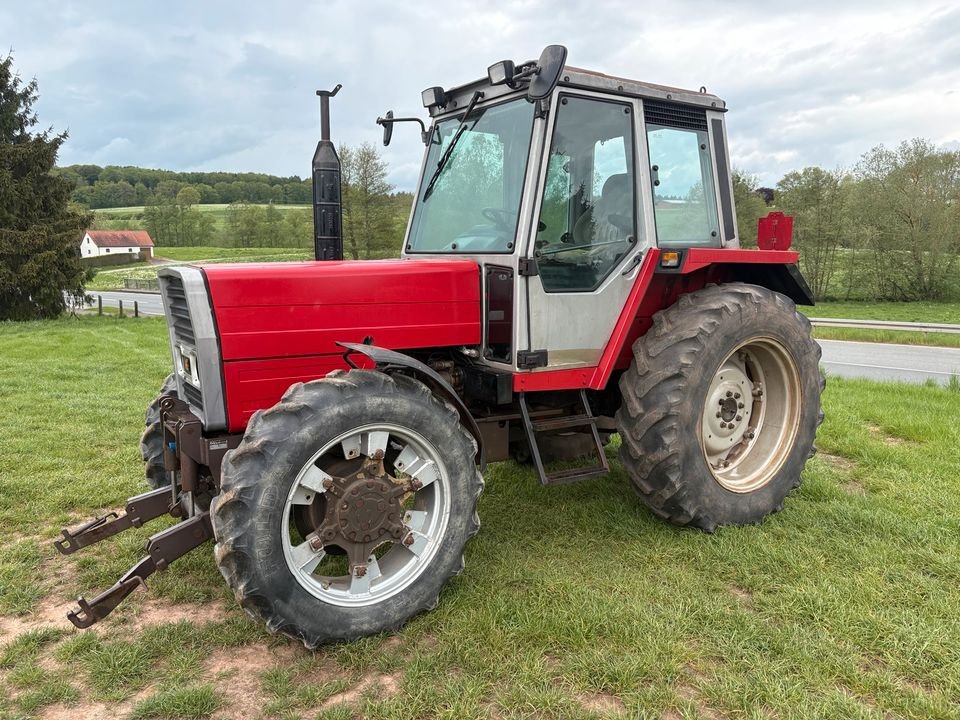

Massey Ferguson MF 397 A
Built: 1987–1994 · Series: 307er- Baureihe
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 307 series – five versions from the MF 1007 to the MF 397 Turbo, four-cylinder diesels of 3,863 to 4,078 cm³, 45.6 to 68.4 kW, 3,140 to 3,890 kg unladen weight
The range is listed in the register as the Massey Ferguson 307 series and belongs to the European MF-300 model family; it runs from the MF 1007 (A) through the MF 377 (A) to the MF 387 A, MF 397 A and MF 397 Turbo. The models are fitted with four-cylinder diesel engines, the Turbo model additionally with turbocharging for the top power step.
Read on 3 more paragraphs
The register lists here five versions with 45.6 to 68.4 kW from four-cylinder engines of 3,863 to 4,078 cm³ displacement, torque from 243 to 346 Nm at a rated speed of 2,200 rpm, unladen weights from 3,140 to 3,890 kg, lengths from 3,950 to 4,000 mm, widths from 2,040 to 2,100 mm and heights from 2,640 to 2,680 mm.
Tractors in this power class positioned themselves on the European market as versatile yard and field tractors between the compact and large-tractor classes, competing with the corresponding ranges from Deutz-Fahr, Fendt and John Deere.
When buying used, the condition of the clutch and gearbox, hydraulic tightness, turbocharger condition on the 397 Turbo and corrosion on wings and cab floor matter; wear and engine parts are well supplied through the AGCO parts network for Massey Ferguson. Such ranges often formed the backbone of the brand's sales in rural areas, being equally suited to grassland and arable work. The condition of the cab seals and electrical system is also worth a look, since moisture here often leads to follow-on damage.
Sources: SpecCodex register, model data: Massey Ferguson 307er-Baureihe, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (58.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 270 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,078 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 175 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,000 mmcorrect |
|---|---|
| Width | 2,100 mmcorrect |
| Height | 2,680 mmcorrect |
| Wheelbase | 2,415 mmcorrect |
| Ground clearance | 425 mmcorrect |
| Unladen weight | 3,890 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/12Rcorrect |
| Front tyres | 380/70 R 24 AScorrect |
| Rear tyres | 470/70 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (59 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 397 A have?
The Massey Ferguson MF 397 A delivers 80 hp.
How much does the Massey Ferguson MF 397 A weigh?
The unladen weight is 3,890 kg.
What engine does the Massey Ferguson MF 397 A have?
4 cylinders, 4,078 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 397 A go?
Top speed is 30 km/h.
What are the dimensions of the Massey Ferguson MF 397 A?
4,000 mm × 2,100 mm × 2,680 mm.
When was the Massey Ferguson MF 397 A built?
Production years: 1987–1994.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
