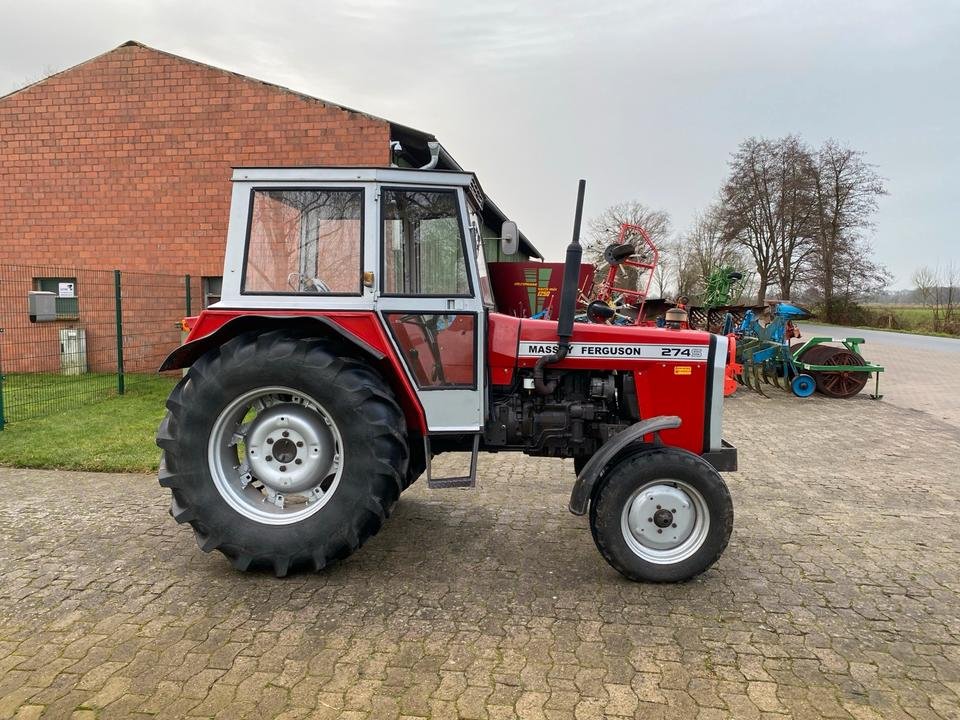

Massey Ferguson MF 274 S (A)
Built: 1982–1987 · Series: 204er-Baureihe
More machines from model year 1982
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 254 S to 294 S: the narrow-track variants of the 200 series, 47 to 76 hp, three- and four-cylinder diesels, reduced build width for specialty crops
Within the 200 family, Massey Ferguson used the "S" suffix for narrow-track variants aimed at orchard, vineyard and specialty-crop operations, sharing the same engine base as the standard models but noticeably reduced in width and build height.
Read on 4 more paragraphs
The register lists 6 live models, from the 284 S to the MF 294 S (A), built between 1980 and 1989. Output ranges from 34.6 to 55.9 kW, weight from 2,620 to 3,240 kg, displacement from 2,500 to 4,067 cm3, across three- and four-cylinder engines, with lift capacity up to 3,000 kg.
The compact build allowed work in narrow row spacing without major compromises in engine power or hydraulic capacity compared with the standard 200-series models.
For specialty-crop operations, this series was, for much of the 1980s, one of the few Massey Ferguson alternatives to dedicated specialist tractors from other makers.
On the narrow-track S models, buying used also means checking, besides clutch, gearbox and hydraulic tightness, the availability of matching narrow tyres and the condition of the reduced-size mudguards and steps, which are more often knocked in tight row spacing; rust on this thinner sheet metal tends to show up earlier than on the standard 200-series models. Parts for the engine base shared with the standard models remain available through the Massey Ferguson network, though narrow-track-specific fittings are scarcer.
Sources: SpecCodex register, model data: Massey Ferguson 204er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 65 hp (47.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 239 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,867 cm³correct |
| Bore | 98.4 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 170 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,650 mmcorrect |
|---|---|
| Width | 1,930 mmcorrect |
| Height | 2,620 mmcorrect |
| Wheelbase | 2,190 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 2,860 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4Rcorrect |
| Front tyres | 7.50-16 ASF (A: 11.2-24 AS)correct |
| Rear tyres | 16.9-30 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.7 kW/t (48 kW / 2.9 t)
Power class: Universal (40–100 hp)
Stronger than 44% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 274 S (A) have?
The Massey Ferguson MF 274 S (A) delivers 65 hp.
How much does the Massey Ferguson MF 274 S (A) weigh?
The unladen weight is 2,860 kg.
What engine does the Massey Ferguson MF 274 S (A) have?
4 cylinders, 3,867 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 274 S (A) go?
Top speed is 25 km/h.
What are the dimensions of the Massey Ferguson MF 274 S (A)?
3,650 mm × 1,930 mm × 2,620 mm.
When was the Massey Ferguson MF 274 S (A) built?
Production years: 1982–1987.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
