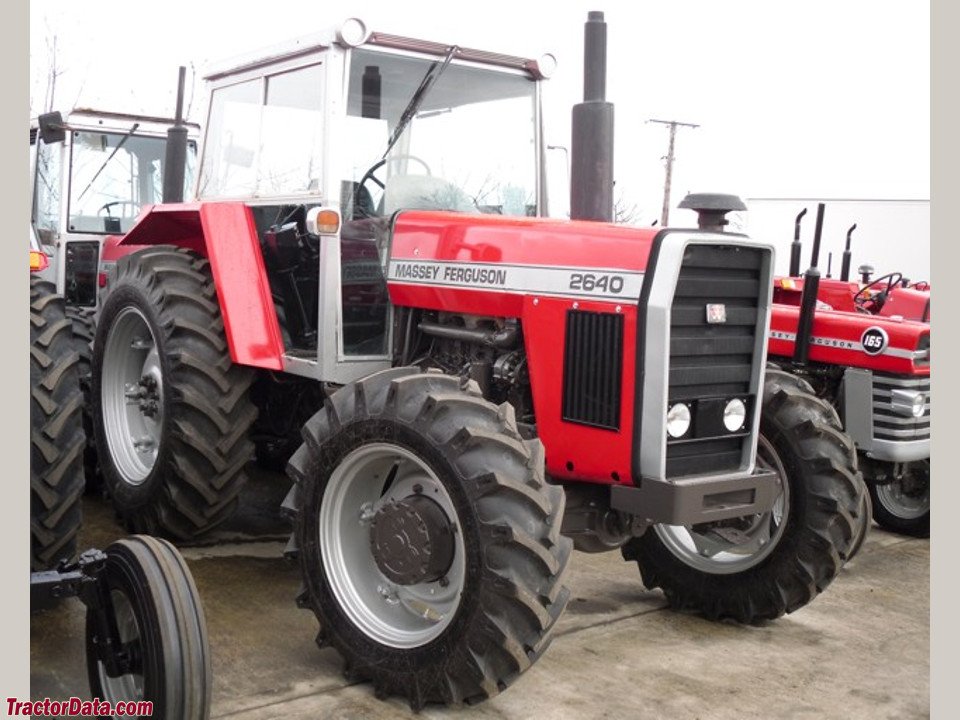

Massey Ferguson MF 2640
Built: 1980–1985 · Series: 2000er-Baureihe
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 2000 series: the MF 2640 (1980-1985) with a six-cylinder diesel engine, 5,797 cm³ displacement, 104 hp/76.5 kW output and a weight of 5,320 kg
Massey Ferguson was one of the major tractor brands of the second half of the 20th century, covering a wide span of machinery through its model lines, from light farmyard tractors to heavier field tractors. The 2000 series occupied the upper mid-range of that line-up: tractors for operations that needed a strong standard machine for tillage, PTO work and transport, without requiring the highest power classes.
Read on 3 more paragraphs
The MF 2640 carries a water-cooled six-cylinder diesel engine with 5,797 cm³ displacement, producing 104 hp, or 76.5 kW, at a rated speed of 2,400 rpm. At 5,320 kg unladen weight, 5,080 mm length and 2,120 mm width, it is a substantial standard tractor whose design top speed of 30 km/h clearly sets it apart from fast transport tractors.
With a top speed of 30 km/h, the MF 2640 falls under Germany's driving licence category T, covering tractors limited by design to 60 km/h. A six-cylinder engine of this displacement class is built for continuous load at low speed, as required by ploughing, cultivating and PTO work in arable farming, rather than for high road speed.
When buying a used six-cylinder diesel of this age, it is worth checking the cooling circuit and the condition of the injection pump, since engines from this period run without electronic control. Hydraulic hoses, clutch wear and the rear axle bearings also deserve a close look given the 5,320 kg weight.
Sources: SpecCodex-Register: Kennwerte des Modells MF 2640, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 104 hp (76.5 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,797 cm³correct |
| Bore | 98.48 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,080 mmcorrect |
|---|---|
| Width | 2,120 mmcorrect |
| Height | 2,810 mmcorrect |
| Wheelbase | 2,726 mmcorrect |
| Ground clearance | (A: 480) mmcorrect |
| Unladen weight | 5,320 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/12Rcorrect |
| Forward gears | 16correct |
| Reverse gears | 12correct |
| Front tyres | 10.00-16 ASF (A: 13.6/12-28 AS)correct |
| Rear tyres | 18, 4/15-38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 228 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.4 kW/t (76 kW / 5.3 t)
Power class: Large (100–180 hp)
Stronger than 68% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 2640 have?
The Massey Ferguson MF 2640 delivers 104 hp.
How much does the Massey Ferguson MF 2640 weigh?
The unladen weight is 5,320 kg.
What engine does the Massey Ferguson MF 2640 have?
6 cylinders, 5,797 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 2640 go?
Top speed is 30 km/h.
What are the dimensions of the Massey Ferguson MF 2640?
5,080 mm × 2,120 mm × 2,810 mm.
When was the Massey Ferguson MF 2640 built?
Production years: 1980–1985.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
