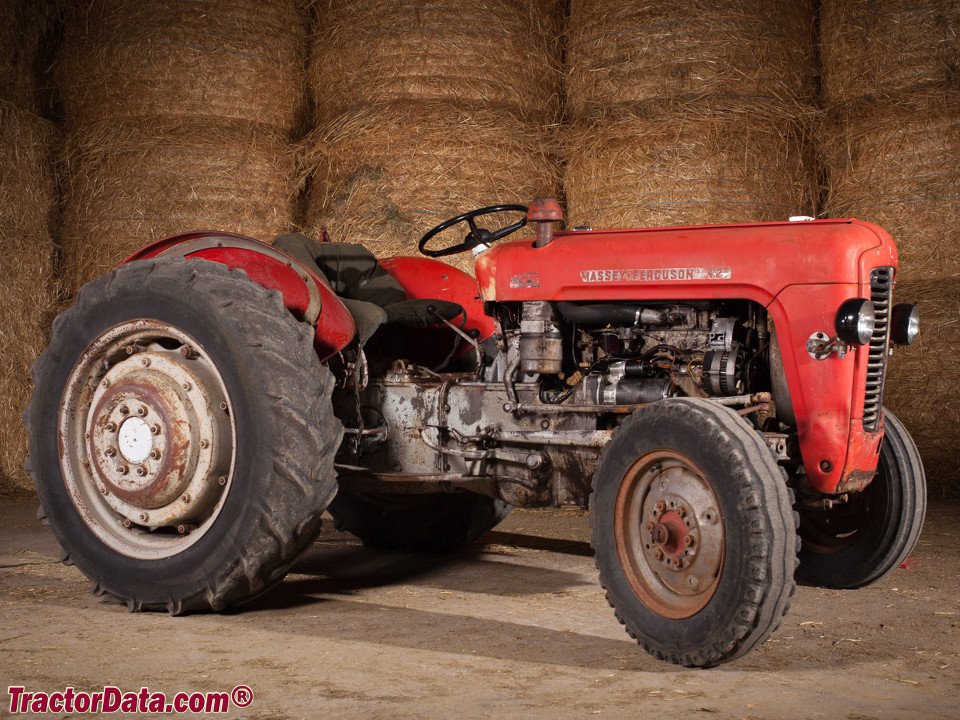

Massey Ferguson MF 42 S – specifications
Built: 1962–1965 · Series: 10er-Baureihe
The 10er series from Massey Ferguson includes the MF 42 S. Production: 1962–1965. The engine delivers 45 hp (33.1 kW), has 3 cylinders, with a displacement of 2,502 cm³. Rated speed is 2,250 rpm. The machine is 3,000 mm long, 1,360 mm wide and 1,500 mm high. The unladen weight is 1,620 kg. The wheelbase measures 1,830 mm. Ground clearance is 320 mm. Top speed is 25 km/h. The tank holds 38.5 litres. Transmission: 6V/2R. The engine is water-cooled. Tyres: front 6.00-16 ASF, rear 11-28 AS. The fuel is diesel. The bore measures 91.44 mm. The stroke is 127 mm. The compression ratio is 17.4:1. Construction: unit construction (no separate frame). The gearbox offers 6 forward gears. There are also 2 reverse gears. Injection pressure is 125 bar. The linkage is category I. The 10er-Baureihe series covers 14 models. Rated output within it ranges from 25 to 58 hp; the MF 42 S sits in the upper part of that range with 45 hp. Its immediate neighbours are the MF 37 S below it with 42 hp and the MF 65 above it with 58 hp. Unladen weight within it ranges from 1,100 to 2,075 kg; here the MF 42 S sits in the middle of that range with 1,620 kg. 1668 Massey Ferguson models across 56 series are on record.
Data for the version built 1962–1965 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1962
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 35: the first true Massey Ferguson generation, 25 to 58 hp, three- and four-cylinder Perkins diesels with the Ferguson System three-point linkage
In 1953 Massey-Harris and the Ferguson Company merged to form Massey-Harris-Ferguson, becoming Massey Ferguson from 1958. The 10 series bundles the resulting first joint model generation, built around the FE-35 ("Ferguson England") and the later MF 35, direct successors to the legendary Ferguson TE-20.
Read on 4 more paragraphs
The register lists 14 live models, from the FE 35/MF 35 to the MF 42 S, built between 1956 and around 1965. Output ranges from 18.4 to 42.7 kW, or 25 to 58 hp, weight from 1,100 to 2,075 kg, displacement from 1,753 to 3,346 cm3, across three- and four-cylinder engines.
Carried over from the TE-20 tradition was the Ferguson System with hydraulic three-point-linkage draft control, paired with the rugged Perkins diesel engine that made the MF 35 one of the longest-lived classics in tractor history.
Thanks to its simple, well-supplied technology, this series remains among the most popular collector and working tractors among the early Massey Ferguson models.
The Ferguson System, carried over to the MF 35 from its TE-20 predecessor, was at the time the first mass-produced three-point linkage with hydraulic draft control and formed the technical basis for the later, internationally standardised ISO 730 Category I. When buying used, besides clutch and gearbox, the condition of the Perkins injection pump matters especially, since leaks in this early distributor-type pump are the most common cause of starting trouble on old examples.
Sources: SpecCodex register, model data: Massey Ferguson 10er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 45 hp (33.1 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,502 cm³correct |
| Bore | 91.44 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17.4correct |
| Injection pressure | 125 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,000 mmcorrect |
|---|---|
| Width | 1,360 mmcorrect |
| Height | 1,500 mmcorrect |
| Wheelbase | 1,830 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 1,620 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/2Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 11-28 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 38.5 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat Icorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 20.4 kW/t (33 kW / 1.6 t)
Power class: Universal (40–100 hp)
Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
