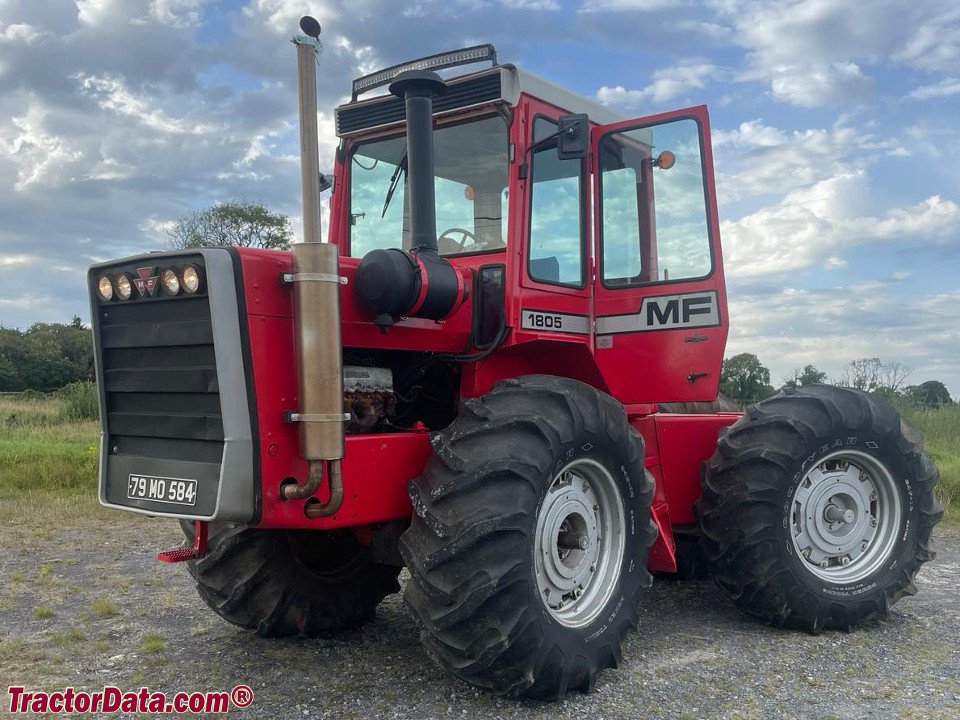

Massey Ferguson MF 1805
Built: 1975–1977 · Series: 1.000er-Knicklenker
More machines from model year 1975
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MF 1500/1800: Massey Ferguson's articulated giants, 108 to 210 hp, six- to eight-cylinder diesels, four-wheel drive through equal-sized axles with articulated steering
In the 1970s, Massey Ferguson entered the market for articulated big tractors to compete with specialists such as Steiger and Versatile. This series bundles the resulting models from the MF 1200 to the MF 1805, with drive to equal-sized axles and articulated steering instead of conventional front-wheel steering.
Read on 4 more paragraphs
The register lists 6 live models, from the MF 1200 to the MF 1805, built between 1971 and 1982. Output ranges from 79.5 to 154.6 kW, or 108 to 210 hp, weight from 5,200 to 9,500 kg, displacement from 5,801 to 10,420 cm3, across six- and eight-cylinder engines.
With their articulated steering and large, equal-sized wheels, these tractors targeted large-scale North American operations, where Steiger and Versatile dominated the segment — Massey Ferguson remained more of a niche player here.
Because of the low production numbers, surviving examples of this series rank among the rarer Massey Ferguson collector pieces today.
On articulated tractors of this type, steering is handled not by the front wheels but by a central joint between the two equal-sized axles, flexed by hydraulic cylinders; wear at this centre joint and its bearing bushings is the chief weak point of big tractors built this way. When buying used, therefore, play in the articulation joint, the condition of the steering cylinders and their seals, both equally sized axles with their differentials, and the turbocharger and injection system of the large-displacement engines all matter; because Massey Ferguson was active in this segment for only a few years, parts supply for components specific to the articulated design is noticeably harder today than for the marque's standard models.
Sources: SpecCodex register, model data: Massey Ferguson 1.000er-Knicklenker
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 210 hp (154.6 kW)correct |
| Rated speed | 2,800 rpmcorrect |
| Cylinders | 8correct |
| Displacement | 10,420 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,200 mmcorrect |
|---|---|
| Width | 2,400 mmcorrect |
| Height | 3,330 mmcorrect |
| Wheelbase | 3,050 mmcorrect |
| Ground clearance | 430 mmcorrect |
| Unladen weight | 9,500 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 10V/2Rcorrect |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Front tyres | 18.4-38 AScorrect |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 454 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.3 kW/t (155 kW / 9.5 t)
Power class: Heavy (> 180 hp)
Stronger than 92% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson MF 1805 have?
The Massey Ferguson MF 1805 delivers 210 hp.
How much does the Massey Ferguson MF 1805 weigh?
The unladen weight is 9,500 kg.
What engine does the Massey Ferguson MF 1805 have?
8 cylinders, 10,420 cm³ displacement, Diesel.
How fast does the Massey Ferguson MF 1805 go?
Top speed is 25 km/h.
What are the dimensions of the Massey Ferguson MF 1805?
6,200 mm × 2,400 mm × 3,330 mm.
When was the Massey Ferguson MF 1805 built?
Production years: 1975–1977.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
