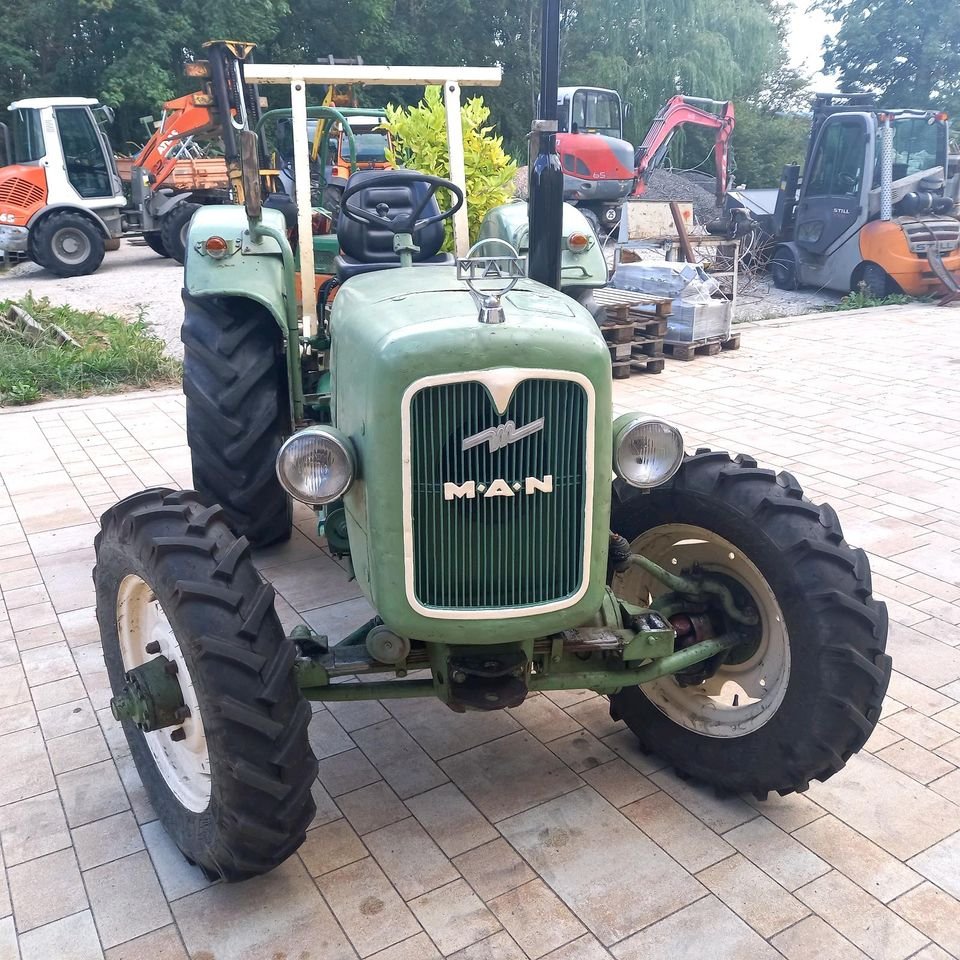

Man Werk München 4P1
Built: 1960–1963 · Series: P
More machines from model year 1960
MAN 4P1, Munich plant (P series): water-cooled three-cylinder diesel engine of 1,915 cc, rated at 35 hp (25.6 kW) at 2,400 rpm, a version built at MAN's Munich works in the early 1960s
The Munich works of commercial vehicle maker MAN built its own versions of the P series in the early 1960s as part of a short-lived tractor programme. The 4P1 represents this Munich-built production and sits in the light-to-medium class of MAN's agricultural tractors of the period.
Read on 3 more paragraphs
The 4P1 is driven by a water-cooled three-cylinder diesel engine of 1,915 cc displacement, rated at 35 hp (25.6 kW) at 2,400 rpm. Unladen weight is 1,920 kg, wheelbase 1,970 mm, width 1,670 mm and length 3,345 mm, at a height of 1,520 mm. Top speed is 19.9 km/h.
At around 1.9 tonnes unladen and 35 hp at a low 2,400 rpm, the 4P1 belongs to the light-to-medium class of agricultural tractors used for soil cultivation, haulage and power take-off work on medium-sized holdings. Its low height of 1,520 mm combined with a comparatively wide track of 1,670 mm gives a low centre of gravity and good stability on slopes.
On a surviving Munich-built 4P1, run the same checks as on other tractors from this engine family: radiator and water pump for leaks, injection pump for even delivery, front axle and steering for play. Parts for the engine and drivetrain are best sourced through specialists in historic MAN farm machinery, while bodywork parts usually require custom work. It is also worth checking the wheel hubs and brake linkages for wear, since these components saw heavy use in daily field and yard work.
Sources: SpecCodex-Register: Kennwerte des Modells MAN 4P1 (Werk München)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (25.6 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,915 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,345 mmcorrect |
|---|---|
| Width | 1,670 mmcorrect |
| Height | 1,520 mmcorrect |
| Wheelbase | 1,970 mmcorrect |
| Ground clearance | 280 mmcorrect |
| Unladen weight | 1,920 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 8/4-Getriebecorrect |
| Front tyres | 6.50-20 AS Farmercorrect |
| Rear tyres | 11-28 AS Farmercorrect |
| Top speed | 19.9 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 2,385correct |
Where this model stands
Power-to-weight ratio: 13.3 kW/t (26 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Man Werk München 4P1 have?
The Man Werk München 4P1 delivers 35 hp.
How much does the Man Werk München 4P1 weigh?
The unladen weight is 1,920 kg.
What engine does the Man Werk München 4P1 have?
3 cylinders, 1,915 cm³ displacement, Diesel.
How fast does the Man Werk München 4P1 go?
Top speed is 19.9 km/h.
What are the dimensions of the Man Werk München 4P1?
3,345 mm × 1,670 mm × 1,520 mm.
When was the Man Werk München 4P1 built?
Production years: 1960–1963.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
