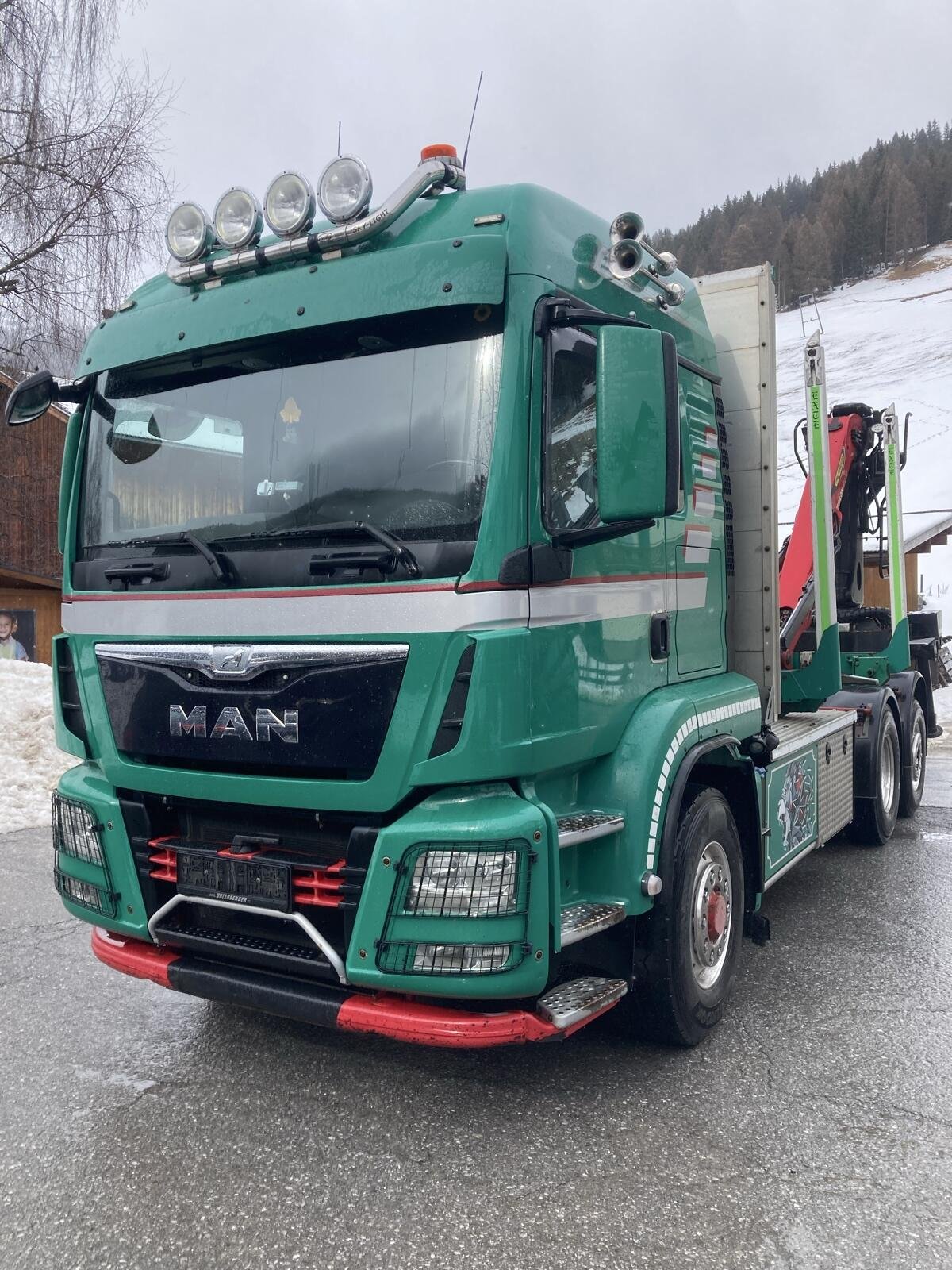

MAN TGS 35.500 – specifications
Built: 2018-2020 · Series: TGS
The MAN TGS 35.500 belongs to the TGS series. Production: 2018-2020. The engine delivers 368 kW, has 6 cylinders, with a displacement of 12,419 cm³. The vehicle is 10,650 mm long and 2,550 mm wide. The unladen weight is 25,725 kg. The wheelbase measures 6,650 mm. Top speed is 90 km/h. The gross vehicle weight is 35,000 kg. The vehicle runs on 10 wheels. The TGS series covers 791 models. Rated output within it ranges from 184 to 427 kW; the TGS 35.500 sits in the upper part of that range with 368 kW. Its immediate neighbours are the 35.360 8X2-6 BL/4550 below it with 360 kW and the 18.510 4X2 BL above it with 375 kW. Unladen weight within it ranges from 6,400 to 43,750 kg; here the TGS 35.500 sits in the middle of that range with 25,725 kg. 5237 MAN models across 68 series are on record.
Data for the version built 2018-2020 · Data origin: Official register · sources
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN TGS — heavy class, read the same way as TGL and TGM
The TGS follows the same rule as its smaller siblings: gross vehicle weight in tonnes before the dot, engine output in horsepower after it. A TGS 18.440 is rated at 18 tonnes and delivers 440 hp. Anyone who knows the TGL or TGM has nothing new to learn — only the class is different.
Read on 4 more paragraphs
The four abbreviations together form MAN's Trucknology Generation: TGL for the light class, TGM for the medium, TGS for the heavy and TGX for the heavy long-haul class. TGS and TGX share their engineering largely; what separates them is the cab and the layout. The TGS is the worker, the TGX the traveller.
The practical dividing line follows from that. Anyone running construction, tipper, silo, hooklift or heavy distribution work ends up with the TGS. Anyone sleeping in the vehicle night after night is better served by the TGX. Between the two it is not power that decides but the cab and frame design.
The axle configuration usually stands right after the type number: 4x2, 6x2, 6x4, 8x4. It says how many wheels there are and how many of them are driven. For site work it is the single most important figure — an 8x4 reaches places where a 4x2 stops, regardless of horsepower.
For used purchases the rule of all commercial vehicles applies: the type number gives weight and power but no year. Two TGS 18.440 can be a decade apart in emissions stage, gearbox and equipment. What decides is first registration and emissions standard.
Sources: MAN: Guidelines for Fitting Bodies TGS/TGX, MAN Trucknology Generation TGS/TGX
Technical data
Engine
| Power | 368 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 12,419 cm³correct |
Dimensions and weights
| Length | 10,650 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,650 mmcorrect |
| Unladen weight | 25,725 kgcorrect |
| Gross vehicle weight | 35,000 kgcorrect |
Drivetrain and chassis
| Wheels | 10correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
Area: Machines › Commercial vehicles › Trucks
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
