Start › Trucks › MAN › TGS › TGS 18.360

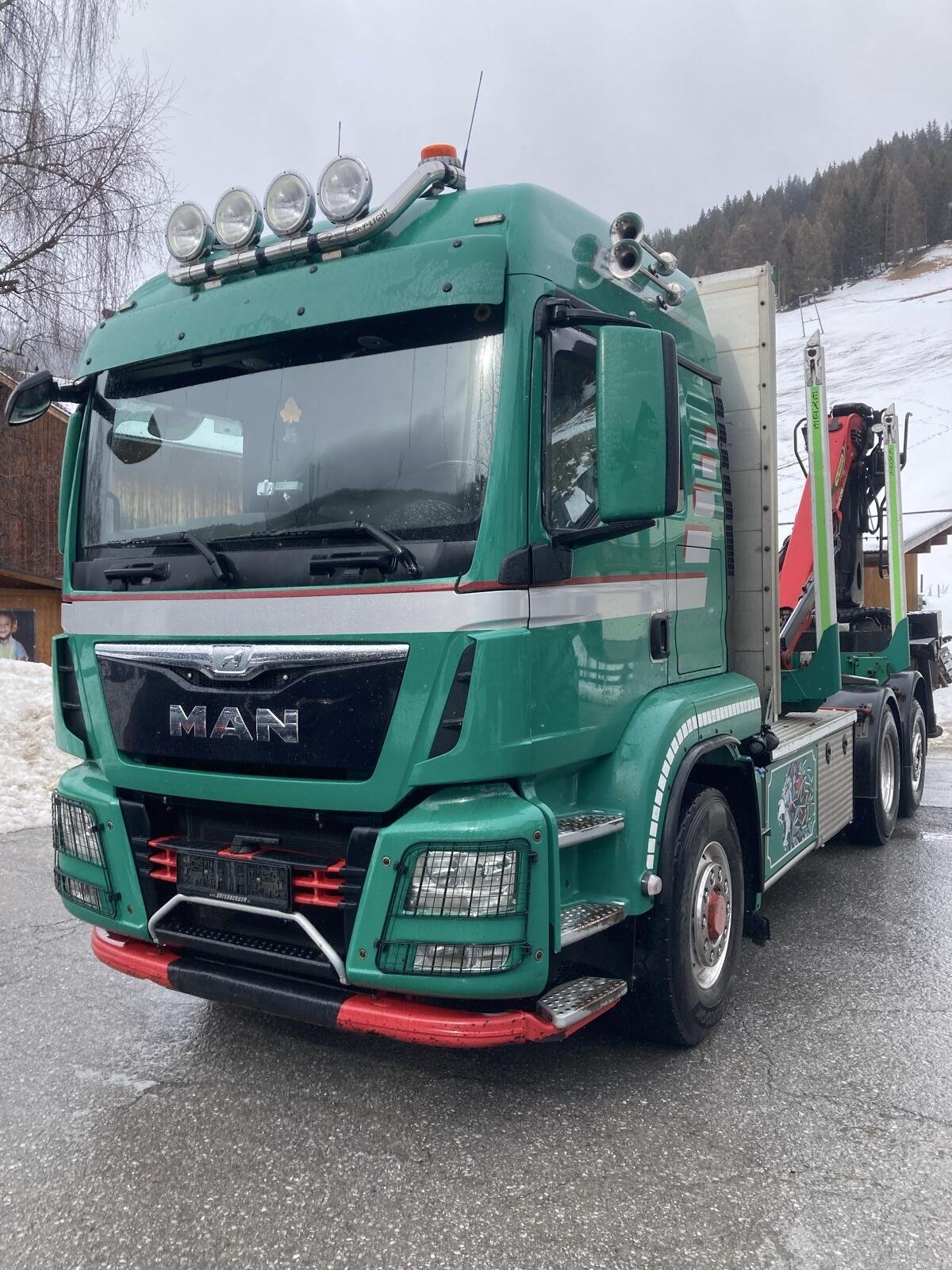

MAN TGS 18.360 – specifications

Built: 2010-2017 · Series: TGS

The TGS 18.360 from MAN is part of the TGS series. Production: 2010-2017. The engine delivers 265 kW, has 6 cylinders, with a displacement of 10,518 cm³. The vehicle is 7,900 mm long and 2,350 mm wide. The unladen weight is 14,200 kg. The wheelbase measures 3,900 mm. Top speed is 90 km/h. The gross vehicle weight is 19,500 kg. The vehicle runs on 6 wheels. The TGS series covers 791 models. Rated output within it ranges from 184 to 427 kW; the TGS 18.360 sits in the lower part of that range with 265 kW. Its immediate neighbours are the TGS 35.360 below it with 264 kW and the 33.400 6X4 BL above it with 284 kW. Unladen weight within it ranges from 6,400 to 43,750 kg; here the TGS 18.360 sits in the lower part of that range with 14,200 kg. 5237 MAN models across 68 series are on record.

Data for the version built 2010-2017 · Data origin: Official register · sources

More machines from model year 2010

Source: landwirt.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

MAN TGS — heavy class, read the same way as TGL and TGM

The TGS follows the same rule as its smaller siblings: gross vehicle weight in tonnes before the dot, engine output in horsepower after it. A TGS 18.440 is rated at 18 tonnes and delivers 440 hp. Anyone who knows the TGL or TGM has nothing new to learn — only the class is different.

Read on 4 more paragraphs

The four abbreviations together form MAN's Trucknology Generation: TGL for the light class, TGM for the medium, TGS for the heavy and TGX for the heavy long-haul class. TGS and TGX share their engineering largely; what separates them is the cab and the layout. The TGS is the worker, the TGX the traveller.

The practical dividing line follows from that. Anyone running construction, tipper, silo, hooklift or heavy distribution work ends up with the TGS. Anyone sleeping in the vehicle night after night is better served by the TGX. Between the two it is not power that decides but the cab and frame design.

The axle configuration usually stands right after the type number: 4x2, 6x2, 6x4, 8x4. It says how many wheels there are and how many of them are driven. For site work it is the single most important figure — an 8x4 reaches places where a 4x2 stops, regardless of horsepower.

For used purchases the rule of all commercial vehicles applies: the type number gives weight and power but no year. Two TGS 18.440 can be a decade apart in emissions stage, gearbox and equipment. What decides is first registration and emissions standard.

Sources: MAN: Guidelines for Fitting Bodies TGS/TGX, MAN Trucknology Generation TGS/TGX

Technical data

Engine

Power265 kWcorrect
Cylinders6correct
Displacement10,518 cm³correct

Dimensions and weights

Length7,900 mmcorrect
Width2,350 mmcorrect
Wheelbase3,900 mmcorrect
Unladen weight14,200 kgcorrect
Gross vehicle weight19,500 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed90 km/hcorrect

Frequently asked questions

How much power does the MAN TGS 18.360 have?

The MAN TGS 18.360 delivers 265 kW.

How much does the MAN TGS 18.360 weigh?

The unladen weight of the MAN TGS 18.360 is 14,200 kg.

What is the gross vehicle weight of the MAN TGS 18.360?

The gross vehicle weight of the MAN TGS 18.360 is 19,500 kg.

What engine does the MAN TGS 18.360 have?

The MAN TGS 18.360 has 6 cylinders and 10,518 cm³ displacement.

How fast does the MAN TGS 18.360 go?

The top speed of the MAN TGS 18.360 is 90 km/h.

What are the dimensions of the MAN TGS 18.360?

Dimensions of the MAN TGS 18.360: length 7,900 mm, width 2,350 mm.

When was the MAN TGS 18.360 built?

The MAN TGS 18.360 was built from 2010 to 2017.

Used listings – figures from public listings

Between June and November 2026, speccodex recorded 10 public used-machine listings for MAN TGS 18.360 on one platform. Asking prices ranged from €17,900 to €79,990 (median €44,300), years of manufacture between 2008 and 2026.

Offered mainly in Germany (60%), Poland (30%) and the Netherlands (10%); shares refer to listings that state a location.

Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 18 Nov 2026. Sellers usually do not state whether prices are net or gross.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.​​‌‌⁠​‌‌‍⁠‍​‍‌‍⁠​‌​‍

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.

Check and complete the data →

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
