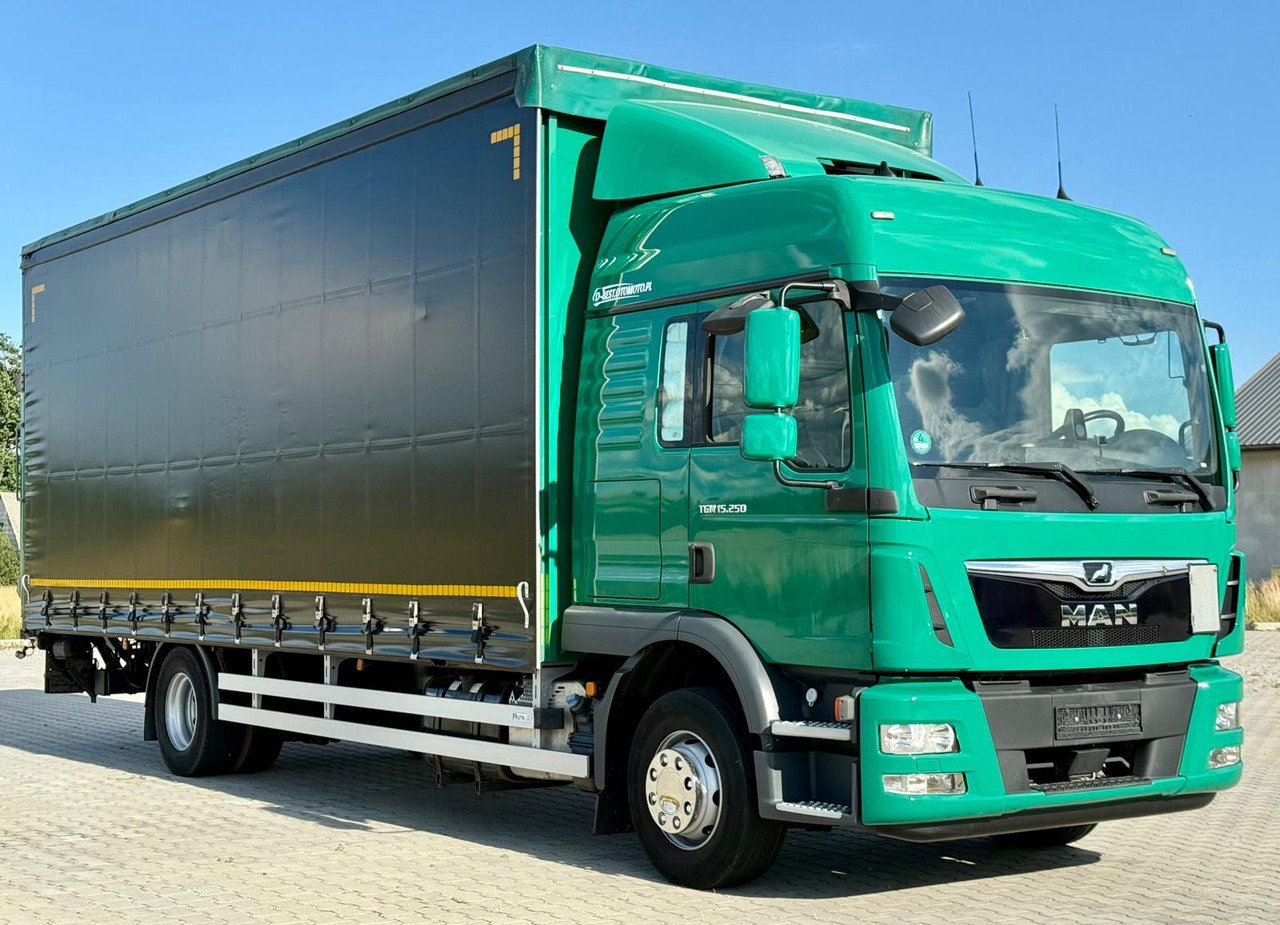

MAN TGM 12.250 – specifications

Built: 2009-2012 · Series: TGM

The MAN TGM 12.250 is a model in the TGM series. Production: 2009-2012. The engine delivers 184 kW, has 6 cylinders, with a displacement of 6,871 cm³. The vehicle is 9,200 mm long and 2,550 mm wide. The unladen weight is 8,719 kg. The wheelbase measures 5,480 mm. Top speed is 90 km/h. The gross vehicle weight is 11,990 kg. The vehicle runs on 6 wheels. The TGM series covers 179 models. Rated output within it ranges from 176 to 264 kW; the TGM 12.250 sits at the bottom of that range with 184 kW. Its immediate neighbours are the TGM 15.240 below it with 176.5 kW and the TGM 18.280 above it with 206 kW. Unladen weight within it ranges from 5,185 to 25,900 kg; here the TGM 12.250 sits in the lower part of that range with 8,719 kg. 5237 MAN models across 68 series are on record.

Data for the version built 2009-2012 · Data origin: Official register · sources

More machines from model year 2009

Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

MAN TGM — the class above the TGL, read the same way: a heavy distribution and construction chassis with six-cylinder diesel engines up into the 26-tonne range

The TGM reads like its smaller sibling: gross vehicle weight in tonnes before the dot, engine output in horsepower after it. A TGM 18.290 is rated at 18 tonnes and delivers 290 hp. Anyone who knows the TGL knows the TGM's system too.

Read on 4 more paragraphs

Together the TGL and TGM cover roughly 7.5 to 26 tonnes — distribution work in cities and regions plus lighter construction duty. The TGM is the heavier half: where the TGL ends at around 12 tonnes, its working range begins.

The difference is not only weight. The TGM is designed for bodies and duties demanding more frame rigidity — tippers, cranes, municipal bodies. Anyone planning a body should therefore establish early which class will carry it; a more powerful TGL does not replace a TGM.

For used purchases the same applies as with the TGL: the type number gives weight and power but says nothing about the year. Two vehicles with identical designations can be a decade apart in emissions stage and equipment. What matters is first registration and emissions standard, not the number on the cab.

With gross vehicle weights from 11,990 to 28,000 kg, the TGM sits mostly in EU class N3 (over 12 t), with its lightest versions right at the boundary with class N2; operating it already entirely requires a category CE driving licence, a tachograph and compliance with driving and rest times. As a tipper or crane chassis, the TGM often carries leaf-spring suspension on the rear axle, while long-haul versions were more often fitted with air suspension for ride comfort.

Sources: SpecCodex register, model data: MAN TGM

Technical data

Engine

Power184 kWcorrect
Cylinders6correct
Displacement6,871 cm³correct

Dimensions and weights

Length9,200 mmcorrect
Width2,550 mmcorrect
Wheelbase5,480 mmcorrect
Unladen weight8,719 kgcorrect
Gross vehicle weight11,990 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed90 km/hcorrect

Frequently asked questions

How much power does the MAN TGM 12.250 have?

The MAN TGM 12.250 delivers 184 kW.

How much does the MAN TGM 12.250 weigh?

The unladen weight of the MAN TGM 12.250 is 8,719 kg.

What is the gross vehicle weight of the MAN TGM 12.250?

The gross vehicle weight of the MAN TGM 12.250 is 11,990 kg.

What engine does the MAN TGM 12.250 have?

The MAN TGM 12.250 has 6 cylinders and 6,871 cm³ displacement.

How fast does the MAN TGM 12.250 go?

The top speed of the MAN TGM 12.250 is 90 km/h.

What are the dimensions of the MAN TGM 12.250?

Dimensions of the MAN TGM 12.250: length 9,200 mm, width 2,550 mm.

When was the MAN TGM 12.250 built?

The MAN TGM 12.250 was built from 2009 to 2012.

Used listings – figures from public listings

Between May and November 2026, speccodex recorded 6 public used-machine listings for MAN TGM 12.250 on one platform. Asking prices ranged from €15,900 to €49,900 (median €28,445), years of manufacture between 2011 and 2021.

Offered mainly in Germany (67%) and Austria (33%); shares refer to listings that state a location.

Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 22 Nov 2026. Sellers usually do not state whether prices are net or gross.

How much does a used MAN TGM 12.250 cost? Asking prices from public listings

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
