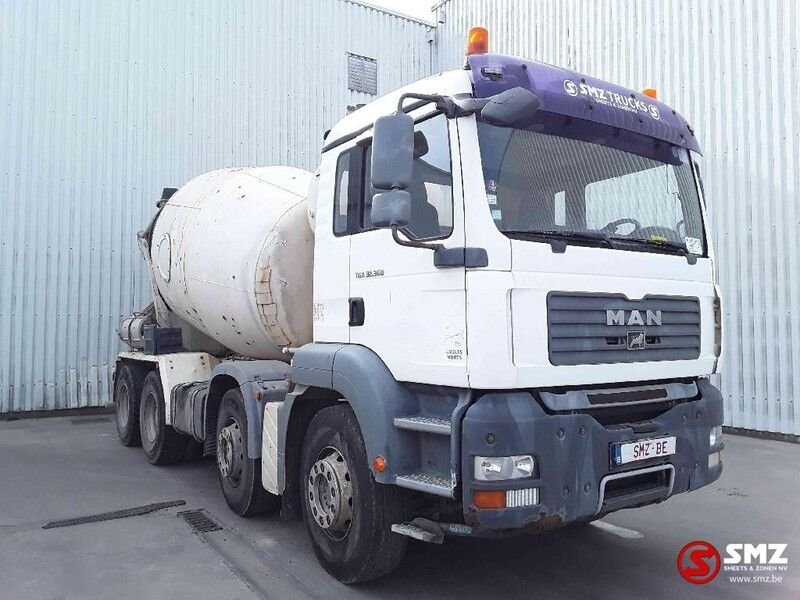

MAN TGA 35.413 FFDC
Built: 2004 · Series: TGA
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN TGA – predecessor to the TGX from 2000 to 2007/2008, the switch to common rail: type number from weight class and horsepower, in-line D08/D20/D28 engines up to 18,300 cm³, 228 to 485 kW
The TGA replaced the older MAN F2000 series in 2000/2001 and was MAN's top long-haul model until the TGX took over in 2007/2008; it introduced common-rail injection and a shared modular cab system with the L, LX, XL, XLX and XXL cabs. The type number follows the same logic as its successor: the leading digits give the weight class (18, 24, 26 tonnes and above), the last three roughly the output in horsepower, plus the axle formula 4X2, 4X4, 6X2 or 6X4. BL marks, under MAN's own naming, the construction version, LL the long-haul version, TS a trimmed special-equipment variant. Engines are MAN's own in-line D08, D20, D26 and D28 units, depending on power class.
Read on 3 more paragraphs
The register lists 315 versions with 228 to 485 kW output, 6,871 to 18,300 cm³ displacement across 6 to 10 cylinders, unladen weights of 6,275 to 31,400 kg, gross weights of 9,300 to 47,000 kg and lengths of 5,725 to 12,000 mm at 2,450 to 2,800 mm width.
The TGA marks MAN's shift from a traditional commercial-vehicle maker to a modern modular manufacturer; it competed with the Mercedes-Benz Actros, Scania 4-series/R-series, Volvo FH and DAF XF, and remains common today as a used long-haul or construction truck.
On used examples, check the injection pumps and injectors of the common-rail system, clutch and gearbox (ZF-AS-Tronic), frame corrosion especially on tippers and construction vehicles, cab mounting and sealing, and parts availability, which on the older TGA already relies partly on used parts.
Sources: SpecCodex register, model data: MAN TGA, MAN Truck & Bus (manufacturer)
Technical data
Engine
| Power | 301 kWcorrect |
|---|---|
| Displacement | 11,967 cm³correct |
Dimensions and weights
| Length | 10,800 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 22,300 kgcorrect |
| Gross vehicle weight | 35,000 kgcorrect |
Drivetrain and chassis
| Gears | 8correct |
|---|
Where this model stands
Power-to-weight ratio: 13.5 kW/t (301 kW / 22.3 t)
Stronger than 55% of the trucks in the register — out of 25,241 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the MAN TGA 35.413 FFDC have?
The MAN TGA 35.413 FFDC delivers 301 kW.
How much does the MAN TGA 35.413 FFDC weigh?
The unladen weight is 22,300 kg.
What is the gross vehicle weight of the MAN TGA 35.413 FFDC?
35,000 kg.
What engine does the MAN TGA 35.413 FFDC have?
11,967 cm³ displacement.
What are the dimensions of the MAN TGA 35.413 FFDC?
10,800 mm × 2,550 mm.
When was the MAN TGA 35.413 FFDC built?
Production years: 2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
