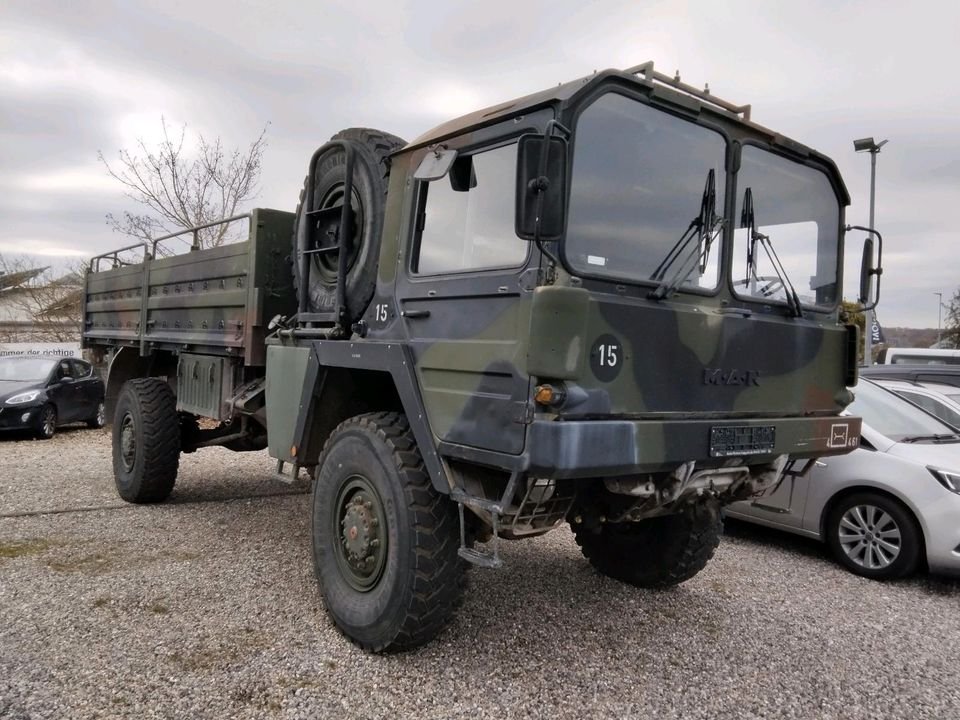

MAN KAT 1. 5T GLW
Built: 1978 · Series: KAT
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN KAT – military all-wheel-drive truck of the KAT 1 family: V8 diesel from 12.7 to 13.4 litres, unladen weight 8.2 to 10.75 tonnes, gross vehicle weight up to 19.1 tonnes
MAN KAT denotes in the register the off-road military trucks of the KAT 1 family, developed from the late 1970s for the German Bundeswehr. Model names such as KAT 4X4 and KAT 1A1 directly confirm the all-wheel-drive construction; the entire range is powered by eight-cylinder diesel engines. MAN was formed in 1908 from the merger of Maschinenfabrik Augsburg with the Nuremberg-based Maschinenbau-Actien-Gesellschaft and was, alongside Rheinmetall and Henschel, one of the manufacturers implementing the KAT 1 programme for the Bundeswehr.
Read on 3 more paragraphs
The register lists 5 versions with eight-cylinder engines from 12,675 to 13,383cc displacement, unladen weights from 8,185 to 10,750kg, gross vehicle weights from 14,300 to 19,100kg, lengths from 7,000 to 8,850mm and widths from 2,500 to 2,510mm.
The KAT 1 vehicles served the Bundeswehr as logistics and carrier vehicles in 4x4, 6x6 and 8x8 configurations; after decommissioning, many examples found a second life in civilian use, for instance as expedition, forestry and agricultural vehicles, where their off-road capability is valued.
Buying used, check the condition of the portal axles and differential locks, the function of the central tyre-inflation system, the frame for rust, the operating hours of the V8 diesel, and the power take-off and implement couplings; spare parts run less through the regular MAN network and more through dealers specialising in former military vehicles. The condition of the winch, where fitted, and the load bed round off the inspection.
Sources: SpecCodex register, model data: MAN KAT, MAN (manufacturer)
Technical data
Engine
| Cylinders | 8correct |
|---|---|
| Displacement | 12,675 cm³correct |
Dimensions and weights
| Length | 7,000 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 4,480 mmcorrect |
| Unladen weight | 8,185 kgcorrect |
| Gross vehicle weight | 14,300 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the MAN KAT 1. 5T GLW weigh?
The unladen weight is 8,185 kg.
What is the gross vehicle weight of the MAN KAT 1. 5T GLW?
14,300 kg.
What engine does the MAN KAT 1. 5T GLW have?
8 cylinders, 12,675 cm³ displacement.
What are the dimensions of the MAN KAT 1. 5T GLW?
7,000 mm × 2,500 mm.
When was the MAN KAT 1. 5T GLW built?
Production years: 1978.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
