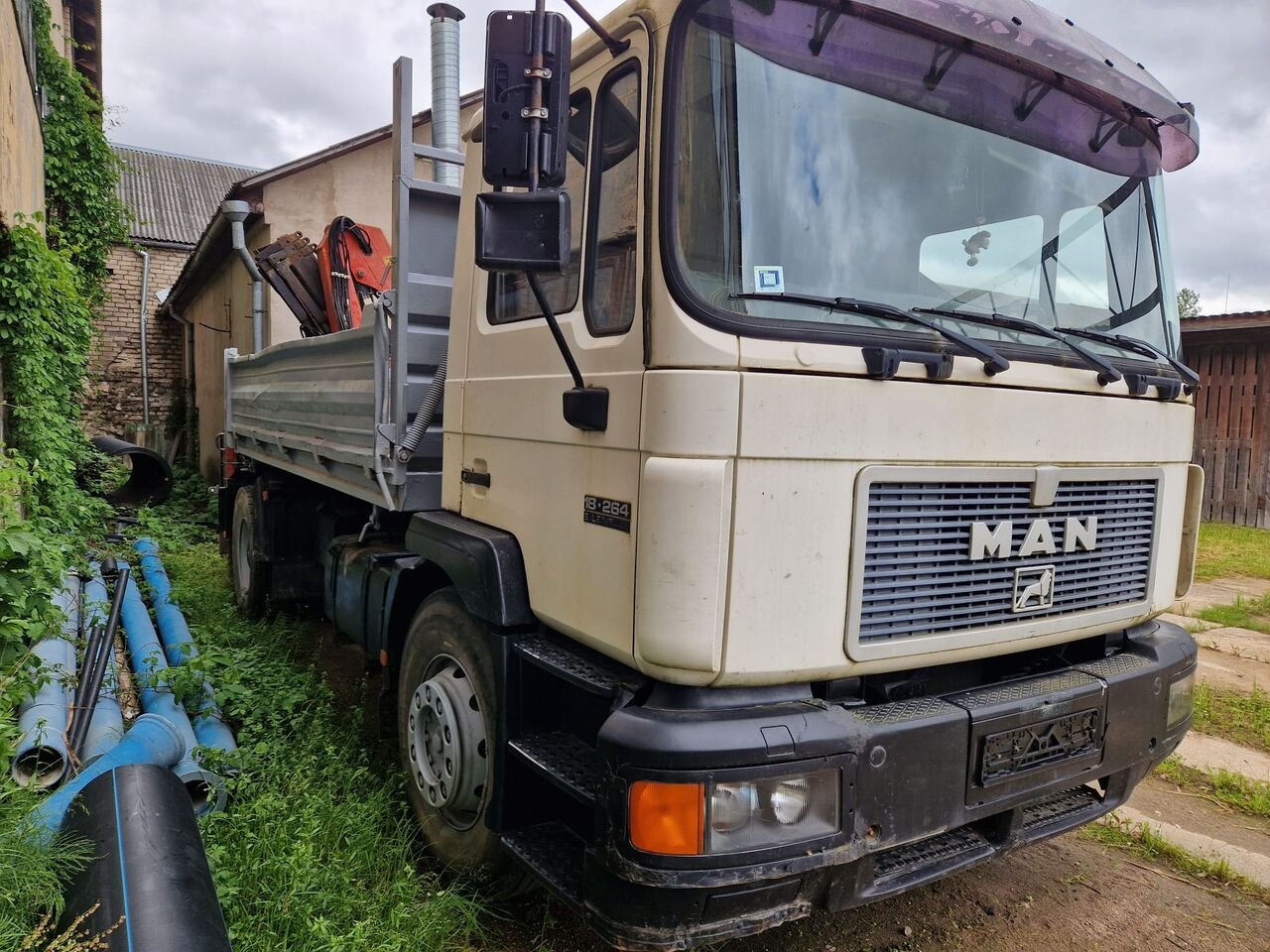

MAN 18.264 LL
Built: 1997 · Series: 18.264
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN 18.264 – series from the L2000/M2000/F2000 era: 18-tonne chassis with a 264 hp six-cylinder, cab codes F, M and L, MA-4X4 off-road variant, gross weights up to 18,000 kg
The MAN 18.264 belongs to the L2000/M2000/F2000 generation MAN introduced in the 1990s, remaining in the range until replaced by the TG series. In the type designation the first number gives the gross-weight class in tonnes and the second the engine output in horsepower, here 18 tonnes and 264 hp. The cab codes F, M and L denote the long-haul, medium and short-nose cabs, LL and ML chassis with a lowered frame, and MA-4X4 the four-wheel-drive construction-site version; the number after the slash gives the wheelbase in centimetres.
Read on 3 more paragraphs
The register lists 7 versions with 187 to 191 kW from six-cylinder engines of 6,870 to 6,880 cc. Kerb weights range from 7,050 to 11,550 kg, gross vehicle weights from 17,500 to 18,000 kg. Lengths run from 6,500 to 11,900 mm, widths from 2,490 to 2,600 mm.
In the 18-tonne class the 18.264 competed with the Mercedes-Benz 1824 and the Volvo FL7/FL10; the MA-4X4 four-wheel-drive variant was used as a base for crane, tipper and fire-service bodies in construction and municipal service.
On a used example, checks should cover corrosion on the frame side members and spring brackets, the condition of the clutch and manual gearbox, on four-wheel-drive chassis the transfer case and propshafts, and the sealing of the charge-air cooler and turbocharger on the six-cylinder engine; spare parts run through the MAN service network.
Sources: SpecCodex register, model data: MAN 18.264, MAN (manufacturer)
Technical data
Engine
| Power | 191 kWcorrect |
|---|---|
| Displacement | 6,870 cm³correct |
Dimensions and weights
| Length | 11,900 mmcorrect |
|---|---|
| Width | 2,590 mmcorrect |
| Unladen weight | 10,300 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 18.5 kW/t (191 kW / 10.3 t)
Stronger than 28% of the trucks in the register — out of 25,242 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the MAN 18.264 LL have?
The MAN 18.264 LL delivers 191 kW.
How much does the MAN 18.264 LL weigh?
The unladen weight is 10,300 kg.
What is the gross vehicle weight of the MAN 18.264 LL?
18,000 kg.
What engine does the MAN 18.264 LL have?
6,870 cm³ displacement.
What are the dimensions of the MAN 18.264 LL?
11,900 mm × 2,590 mm.
When was the MAN 18.264 LL built?
Production years: 1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
