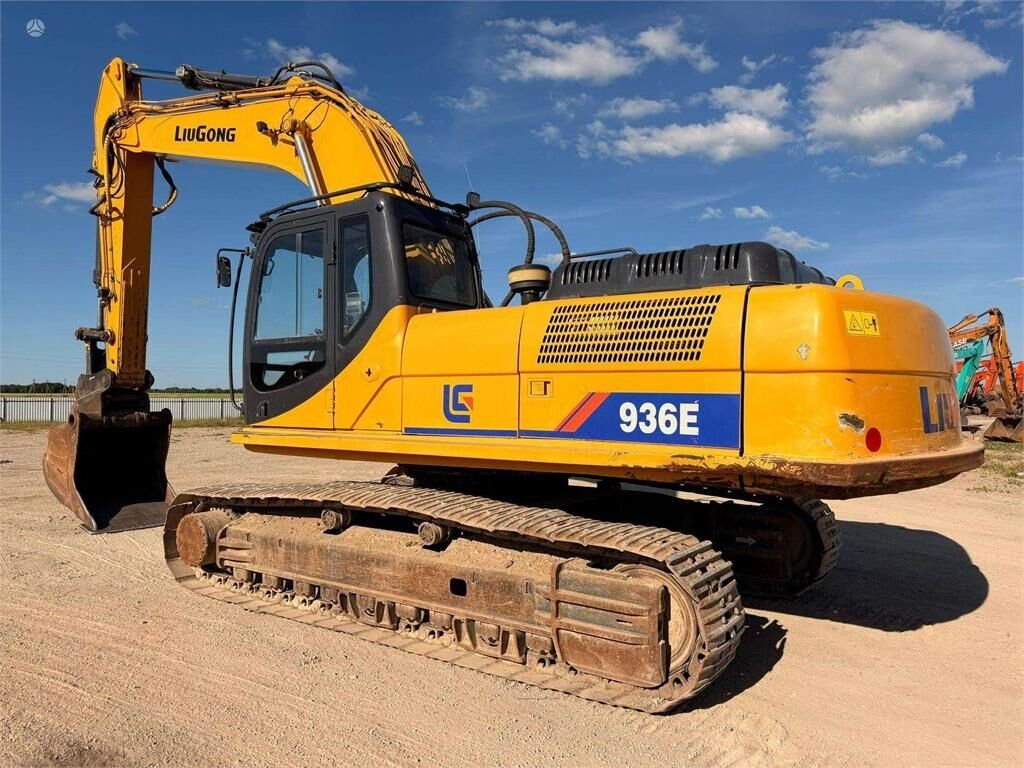

Liugong CLG936LC
Series: LiuGong Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
LiuGong CLG915C to CLG936LC – hydraulic excavators from Liuzhou: Cummins engines, 82 to 194 kW, 13,500 to 36,200 kg operating weight
LiuGong (Guangxi Liuzhou Liugong Machinery), based in Liuzhou, China, is one of the oldest and largest Chinese construction-machinery makers and now exports its products worldwide. The CLG range from the CLG915C to the CLG936LC, its numbering roughly following the operating-weight class in tonnes, covers the field from compact excavators to upper mid-range standard excavators; the LC suffix marks versions with a long-track undercarriage.
Read on 3 more paragraphs
The register lists here 4 versions with 82 to 194 kW rated output, 3,900 to 8,300 cm³ displacement from four- to six-cylinders and operating weights of 13,500 to 36,200 kg at rated speeds of 2,100 to 2,200 rpm. The excavators are powered by Cummins diesels of the B and C ranges.
LiuGong excavators in this weight class are used in Europe, Africa, Latin America and South-East Asia chiefly as a lower-cost alternative to established brands such as Caterpillar, Komatsu or Volvo, and cover the broad field of general earthworks; sales increasingly run through the company's own national subsidiaries and dealer networks, including in Europe.
On a used purchase, the condition of the tracks and rollers, particularly on the LC versions with their long-track undercarriage, the tightness of the hydraulic cylinders and pumps, play in the slew ring, and the Cummins engine's service history and parts availability outside China count; spare parts run through the LiuGong dealer network.
Sources: SpecCodex register, model data: LiuGong Hydraulic Excavator, LiuGong (manufacturer)
Technical data
Engine
| Engine model | 6CTA8.3correct |
|---|---|
| Power | 263.8 hp (194 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,300 cm³correct |
Dimensions and weights
| Ground clearance | 533.4 mmcorrect |
|---|---|
| Unladen weight | 36,200 kgcorrect |
Working data
| Pump flow | 560.2 l/mincorrect |
|---|---|
| Hydraulic pressure | 320 barcorrect |
More machines with this engine (MWM International Motores ; Cummins 6CTA8.3, 6)
Where this model stands
Power-to-weight ratio: 5.4 kW/t (194 kW / 36.2 t)
Stronger than 81% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Liugong CLG936LC have?
The Liugong CLG936LC delivers 264 hp.
How much does the Liugong CLG936LC weigh?
The unladen weight is 36,200 kg.
What engine does the Liugong CLG936LC have?
6 cylinders, 8,300 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
