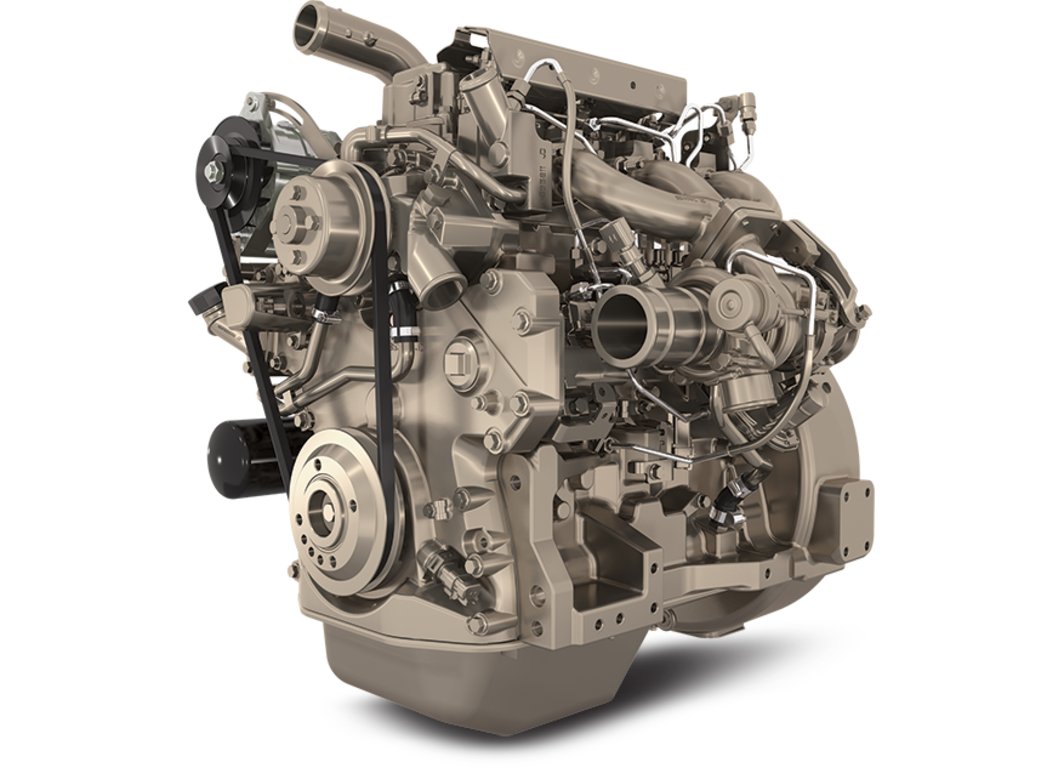

Lion Engine Science And Technology LN490DZL
Built: 2011-2012 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lion Engine Science and Technology – other nonroad diesel engines: the collective page of EPA-certified four-cylinder engines from the Chinese maker outside the named ranges, 20 to 36 kW, Interim Tier 4, 90 mm bore
Lion Engine Science and Technology is a Chinese maker of small diesel engines. This page gathers the nonroad diesel engines from the US EPA certification data that the register could not assign to a named range. The four versions carry the designations LN490DZL, LN490DZL-1, LN490DZL-2 and LN490DZL-3 and share cylinder geometry and engine family.
Read on 3 more paragraphs
The register lists here four versions with 20 to 36 kW rated output at 1,800 rpm, from inline four-cylinder engines with a 90 mm bore and 105 mm stroke. Maximum torque ranges from 106.1 to 191 Nm, also at 1,800 rpm. All four engines carry a waste-gate turbocharger and direct injection, rated for diesel with 300 to 500 ppm sulphur content, classed in the 19 to 37 kW power category under the EPA Interim Tier 4 emission stage. "Fed (non CA States)" is recorded throughout as the distribution area, meaning the US outside California.
With 20 to 36 kW and four cylinders, the engines sit in the lower to medium power band of mobile machinery, used in smaller construction machines, compressors and generator sets; the Interim Tier 4 emission stage marks a transitional step in US emissions regulation ahead of full Tier 4 Final.
On a used purchase, operating hours and the service history of the injection system, the condition of the waste-gate turbocharger, the tightness of the charge-air ducting, and the starter and cooling system all count. Spare parts and service run through the Chinese manufacturer and its export partners.
Sources: SpecCodex register, model data: Lion Engine Science and Technology (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine family | BLESL2.67AAAcorrect |
|---|---|
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 36 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 191 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 90 mmcorrect |
| Stroke | 105 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Sales region | USA excluding Californiacorrect |
|---|
Frequently asked questions
How much power does the Lion Engine Science And Technology LN490DZL have?
The Lion Engine Science And Technology LN490DZL delivers 36 kW.
When was the Lion Engine Science And Technology LN490DZL built?
Production years: 2011-2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
