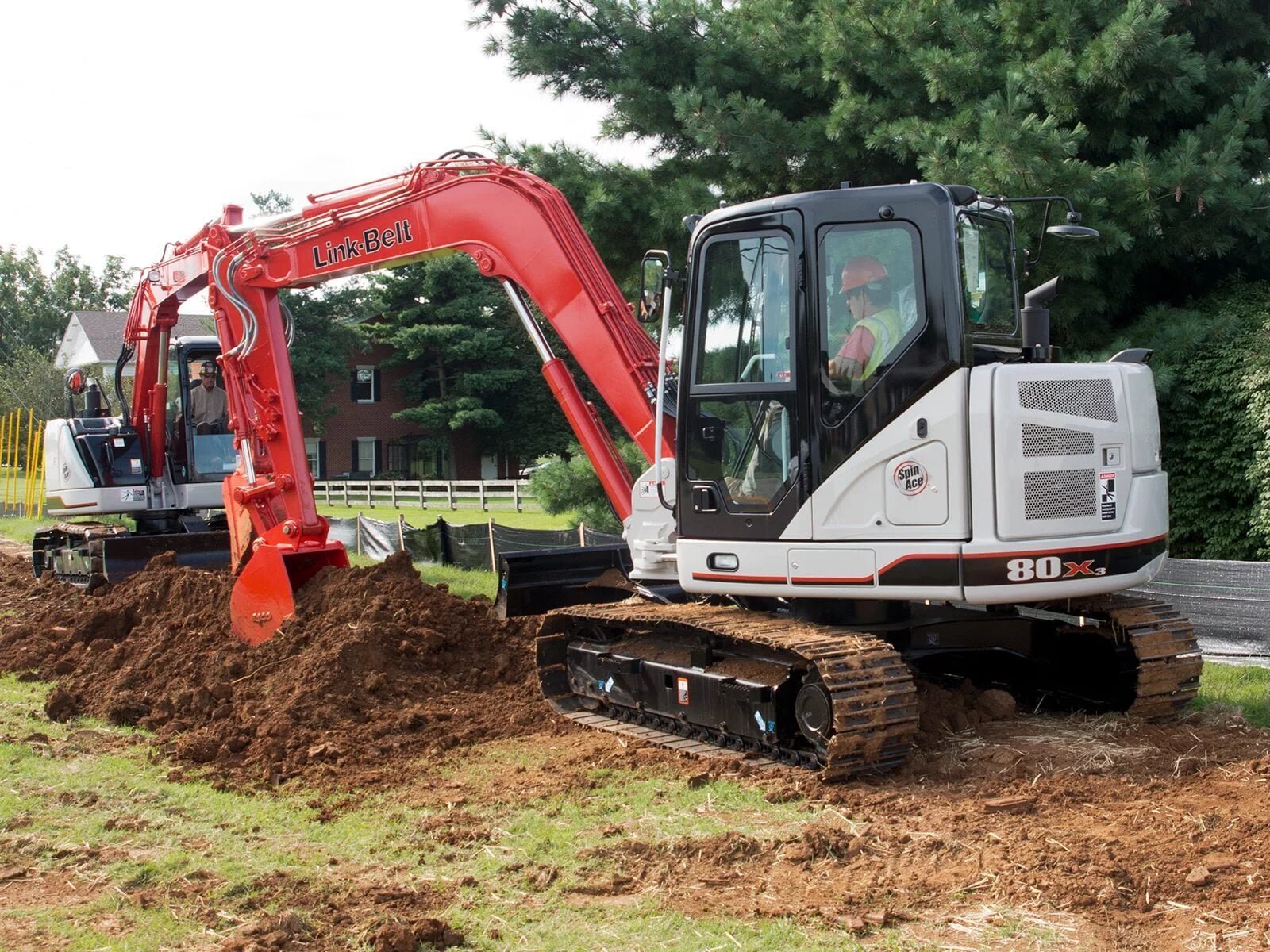

Link-Belt 80 Spin Ace Tier III

Series: Link-Belt Midi Excavator

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Link-Belt 80 Spin Ace Tier III is a model in the Link-Belt Midi Excavator series. The engine delivers 40.3 kW, has 4 cylinders, with a displacement of 2,179.5 cm³. Torque is 210.2 Nm. Rated speed is 2,000 rpm. The unladen weight is 8,430 kg. Ground clearance is 362.7 mm. The tank holds 100.3 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 136.3 l/min. The hydraulic tank holds 97.7 litres. Working pressure is 293.7 bar. The cooling system holds 10.2 litres. The oil fill is 9.1 litres. The engine fitted is the AU-4LE2X. The Link-Belt Midi Excavator series covers 4 models. Rated output within it ranges from 38.8 to 40.3 kW; the 80 Spin Ace Tier III sits at the top of that range with 40.3 kW. Its immediate neighbours are the 80 Spin Ace below it with 38.8 kW. Unladen weight within it ranges from 6,999.8 to 8,430 kg; here the 80 Spin Ace Tier III sits at the top of that range with 8,430 kg. 157 Link-Belt models across 11 series are on record.

Link-Belt 75 Spin Ace to 1600 Quantum – midi excavators from Kentucky: Isuzu four-cylinders, 38.8 to 40.3 kW, 7,000 to 8,430 kg operating weight

Link-Belt Construction Equipment, based in Lexington, Kentucky, belongs to the Japanese Sumitomo group and develops its excavators in close technical partnership with Sumitomo Construction Machinery. The models covered here, Spin Ace and Quantum, are product names from Link-Belt's midi excavator line-up in the seven-to-eight-and-a-half-tonne class.

Read on 4 more paragraphs

The register lists here 4 versions with 38.8 to 40.3 kW rated output, 2,180 to 3,064 cm³ displacement from four-cylinders, operating weights of 7,000 to 8,430 kg and torques of 184 to 210 Nm at rated speeds of 2,000 to 2,100 rpm. The engines come from Isuzu's 4JG1 and 4JB1 ranges.

Midi excavators in this weight class are used in general earthworks, utility installation and municipal work, sitting between mini and standard excavators; Link-Belt competes here with Kubota, Takeuchi and Case, benefiting from its Sumitomo affiliation for undercarriage and hydraulic components.

On Link-Belt midi excavators, the standard bucket comes off only with tools as fitted from the factory; a mechanical or hydraulic quick coupler is available as a retrofit and speeds up changes between a trenching and a digging bucket. Running a hydraulic hammer or sorting grapple additionally needs a second, independently regulated hydraulic line with its own return.

On a used purchase, the condition of the tracks and rollers, play in the slew ring, the tightness of the hydraulic cylinders and the service history of the Isuzu engine including the injection pump count; spare parts run through the Link-Belt dealer network.

Sources: SpecCodex register, model data: Link-Belt Midi Excavator

Technical data

Engine

Engine model	AU-4LE2Xcorrect
Power	40.3 kWcorrect
Rated speed	2,000 rpmcorrect
Torque	210.2 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	4correct
Displacement	2,179.5 cm³correct
Aspiration	Naturalcorrect
Coolant capacity	10.2 lcorrect
Engine oil capacity	9.1 lcorrect

Dimensions and weights

Ground clearance	362.7 mmcorrect
Unladen weight	8,430 kgcorrect

Working data

Pump flow	136.3 l/mincorrect
Hydraulic oil capacity	97.7 lcorrect
Hydraulic pressure	293.7 barcorrect
Fuel tank capacity	100.3 lcorrect

Other data

Cab height	2,700.5 mmcorrect

More machines with this engine (AU-4LE2X, 12)

Where this model stands

Power-to-weight ratio: 4.8 kW/t (40 kW / 8.4 t)

Stronger than 8% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Link-Belt 80 Spin Ace Tier III have?

The Link-Belt 80 Spin Ace Tier III delivers 40.3 kW.

How much does the Link-Belt 80 Spin Ace Tier III weigh?

The unladen weight is 8,430 kg.

What engine does the Link-Belt 80 Spin Ace Tier III have?

4 cylinders, 2,180 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
