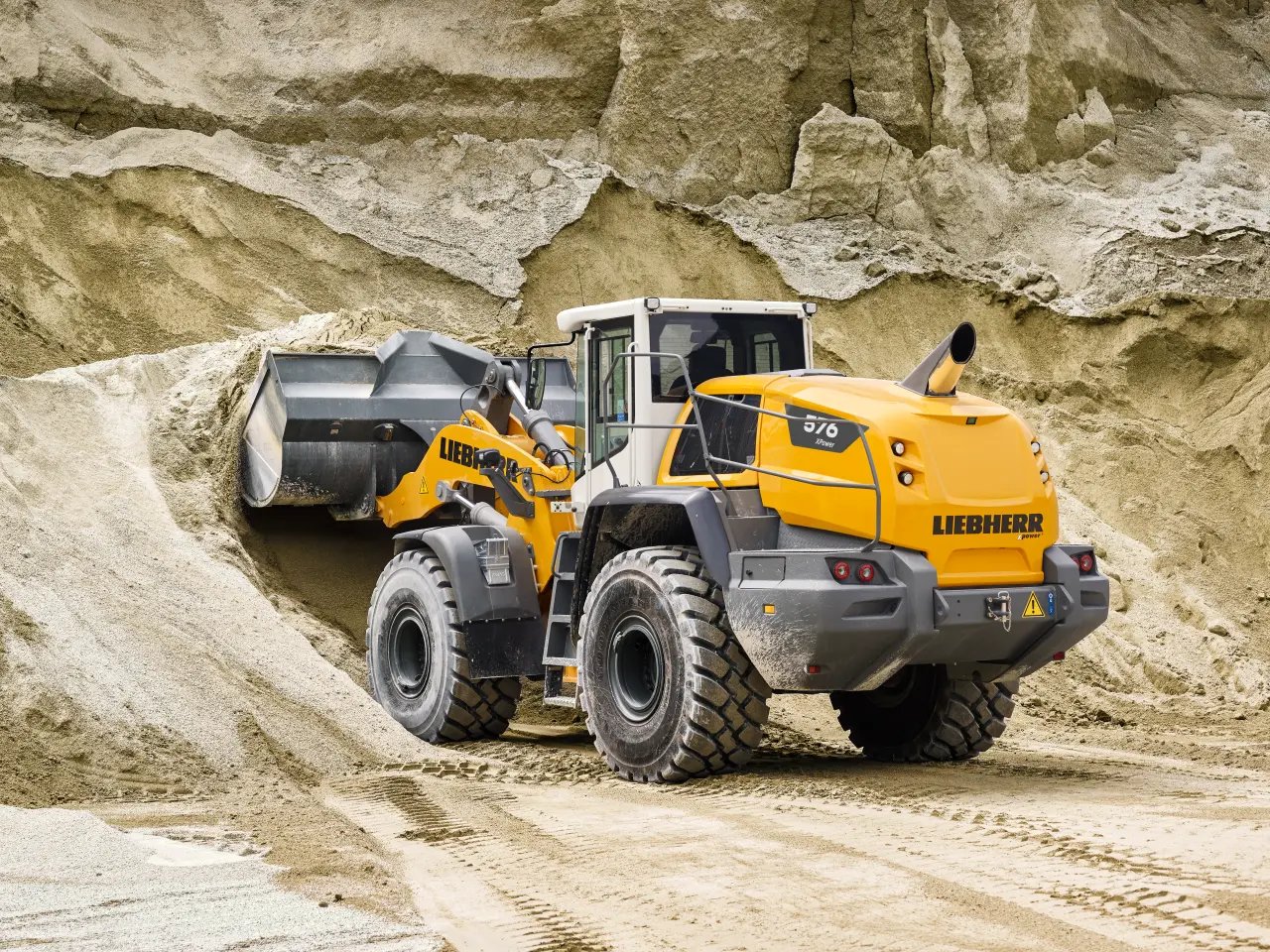

Liebherr L576 2plus2

Series: Liebherr Wheel Loader

Source: https://www.liebherr.com/en-gb/p/241926-4206784 liebherr.co

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr Wheel Loader series from Liebherr includes the L576 2plus2. The engine delivers 272 hp (200.1 kW), has 6 cylinders, with a displacement of 10,520.5 cm³. Torque is 1,320 Nm. Rated speed is 2,000 rpm. The unladen weight is 24,260 kg. The wheelbase measures 3,581.4 mm. Ground clearance is 566.9 mm. The tank holds 400.1 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 290.3 l/min. The hydraulic tank holds 260.1 litres. The cooling system holds 52.2 litres. The electrical system runs on 24 V. The engine fitted is the D 936 L A6. Tyre size: 26,5R25. The Liebherr Wheel Loader series covers 37 models. Rated output within it ranges from 99.4 to 357.9 hp; the L576 2plus2 sits in the upper part of that range with 272 hp. Its immediate neighbours are the L580 2plus2 below it with 268.7 hp and the L566 XPOWER above it with 275.8 hp. 480 Liebherr models across 20 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD 936 L A6correct
Power272 hp (200.1 kW)correct
Rated speed2,000 rpmcorrect
Torque1,320correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement10,520.5 cm³correct
Aspirationturbo-chargedcorrect
Coolant capacity52.2 lcorrect

Dimensions and weights

Wheelbase3,581.4correct
Ground clearance566.9correct
Unladen weight24,260 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears3correct
Reverse gears3correct
Tyre size26.5R25correct
System voltage24 Vcorrect

Working data

Pump flow290.3 l/mincorrect
Hydraulic oil capacity260.1 lcorrect
Fuel tank capacity400.1 lcorrect

Other data

Height3,550.9correct

Where this model stands

Power-to-weight ratio: 8.2 kW/t (200 kW / 24.3 t)

Stronger than 86% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Liebherr L576 2plus2 have?

The Liebherr L576 2plus2 delivers 272 hp.

How much does the Liebherr L576 2plus2 weigh?

The unladen weight is 24,260 kg.

What engine does the Liebherr L576 2plus2 have?

6 cylinders, 10,520 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
