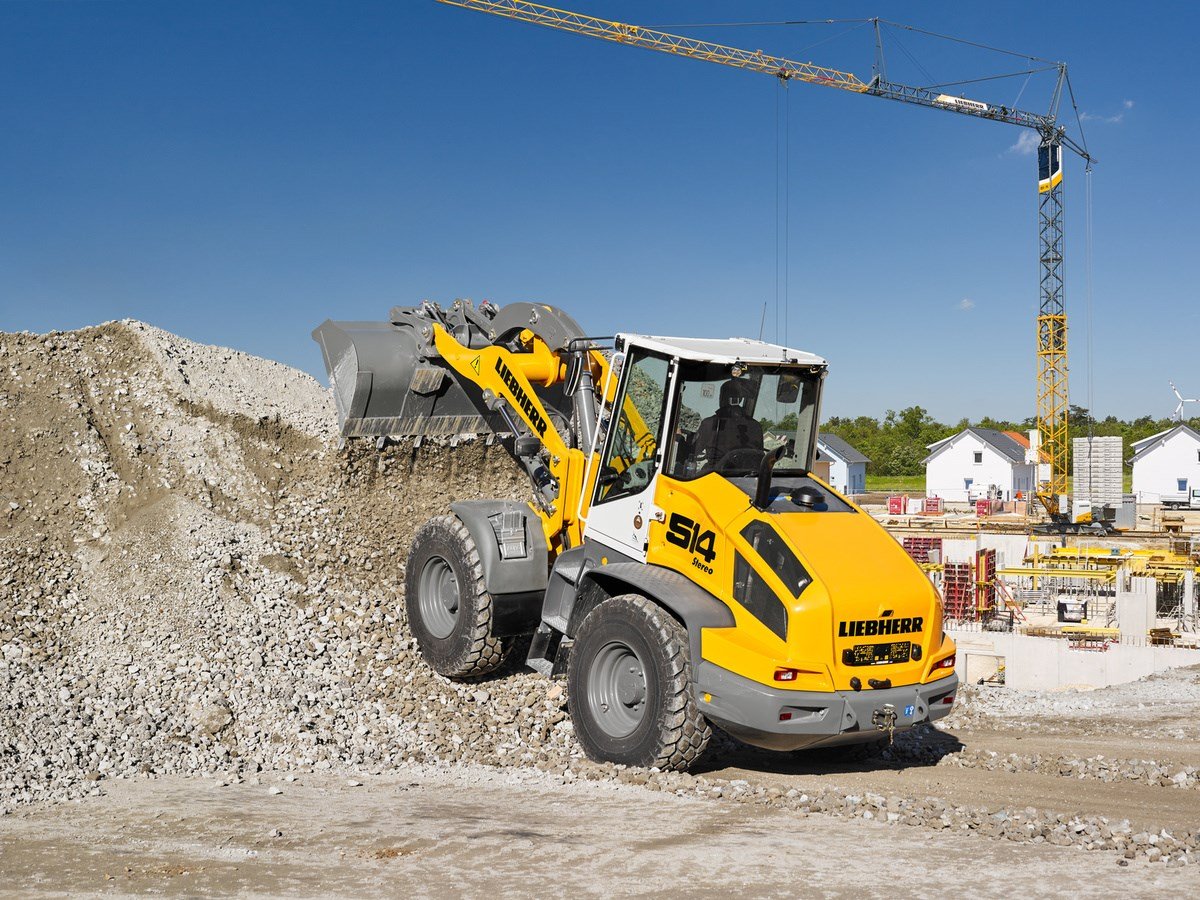

Liebherr L514

Series: Liebherr Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L514 from Liebherr is part of the Liebherr Wheel Loader series. The engine delivers 99.4 hp (73.1 kW), has 4 cylinders, with a displacement of 4,501.5 cm³. Torque is 395.1 Nm. Rated speed is 2,400 rpm. The unladen weight is 7,720 kg. The wheelbase measures 2,603 mm. Ground clearance is 387.1 mm. The tank holds 140.1 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 115.1 l/min. The hydraulic tank holds 105.2 litres. The electrical system runs on 12 V. The engine fitted is the D 504 T. Tyre size: 15,5R25 or 17,5R25. The Liebherr Wheel Loader series covers 37 models. Rated output within it ranges from 99.4 to 357.9 hp; the L514 sits at the bottom of that range with 99.4 hp. Its immediate neighbours are the L524 2plus1 above it with 117 hp. 480 Liebherr models across 20 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD 504 Tcorrect
Power99.4 hp (73.1 kW)correct
Rated speed2,400 rpmcorrect
Torque395.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,501.5 cm³correct
AspirationInline engine, water-cooled exhaust-turbo chargedcorrect

Dimensions and weights

Wheelbase2,603correct
Ground clearance387.1correct
Unladen weight7,720 kgcorrect

Drivetrain and chassis

Gearbox typeStepless hydrostatic transmission travel drivecorrect
Forward gears2correct
Reverse gears2correct
Tyre size15.5R25 or 17.5R25correct
System voltage12 Vcorrect

Working data

Pump flow115.1 l/mincorrect
Hydraulic oil capacity105.2 lcorrect
Fuel tank capacity140.1 lcorrect

Other data

Height3,026.7correct

Where this model stands

Power-to-weight ratio: 9.5 kW/t (73 kW / 7.7 t)

Stronger than 36% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Liebherr L514 have?

The Liebherr L514 delivers 99.4 hp.

How much does the Liebherr L514 weigh?

The unladen weight is 7,720 kg.

What engine does the Liebherr L514 have?

4 cylinders, 4,502 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
