Start › Wheel loaders › Liebherr › L538 2plus1

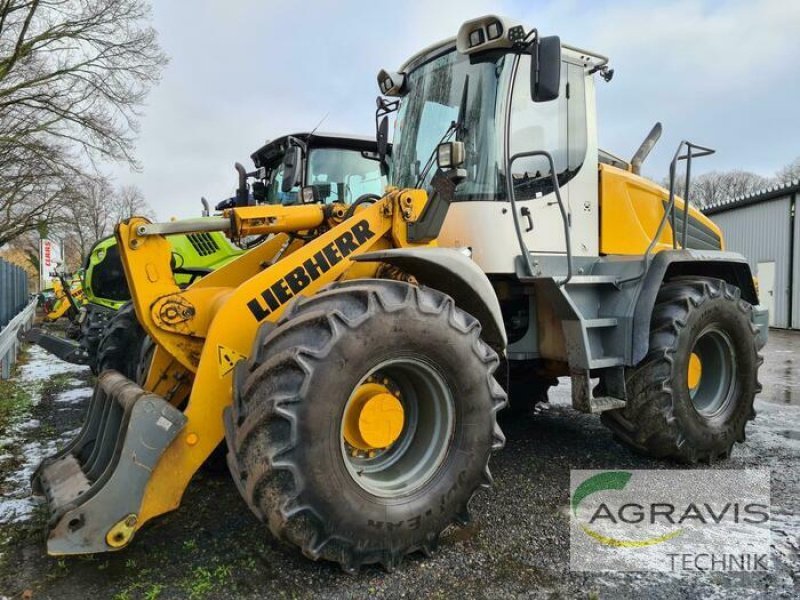

Liebherr L538 2plus1

Series: Liebherr Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/liebher

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr L538 2plus1 belongs to the Liebherr Wheel Loader series. The engine delivers 142.9 hp (105.1 kW), has 4 cylinders, with a displacement of 6,361.5 cm³. Torque is 770.1 Nm. Rated speed is 2,000 rpm. The wheelbase measures 2,977.9 mm. Ground clearance is 490.7 mm. The tank holds 170.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 140.1 l/min. The hydraulic tank holds 180.2 litres. The electrical system runs on 24 V. The engine fitted is the D 934 S AG. Tyre size: 20,5R25. The Liebherr Wheel Loader series covers 37 models. Rated output within it ranges from 99.4 to 357.9 hp; the L538 2plus1 sits in the lower part of that range with 142.9 hp. Its immediate neighbours are the L526 below it with 139.9 hp and the L538 above it with 156.1 hp. 480 Liebherr models across 20 series are on record. The model is listed under Wheel loaders. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD 934 S AGcorrect
Power142.9 hp (105.1 kW)correct
Rated speed2,000 rpmcorrect
Torque770.1correct
Speed at max. torque1,300 rpmcorrect
Cylinders4correct
Displacement6,361.5 cm³correct
Aspirationturbo-chargedcorrect

Dimensions and weights

Wheelbase2,977.9correct
Ground clearance490.7correct

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears3correct
Reverse gears3correct
Tyre size20.5R25correct
System voltage24 Vcorrect

Working data

Pump flow140.1 l/mincorrect
Hydraulic oil capacity180.2 lcorrect
Fuel tank capacity170.3 lcorrect

Other data

Height3,252.2correct

Frequently asked questions

How much power does the Liebherr L538 2plus1 have?

The Liebherr L538 2plus1 delivers 143 hp.

What engine does the Liebherr L538 2plus1 have?

4 cylinders, 6,362 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
