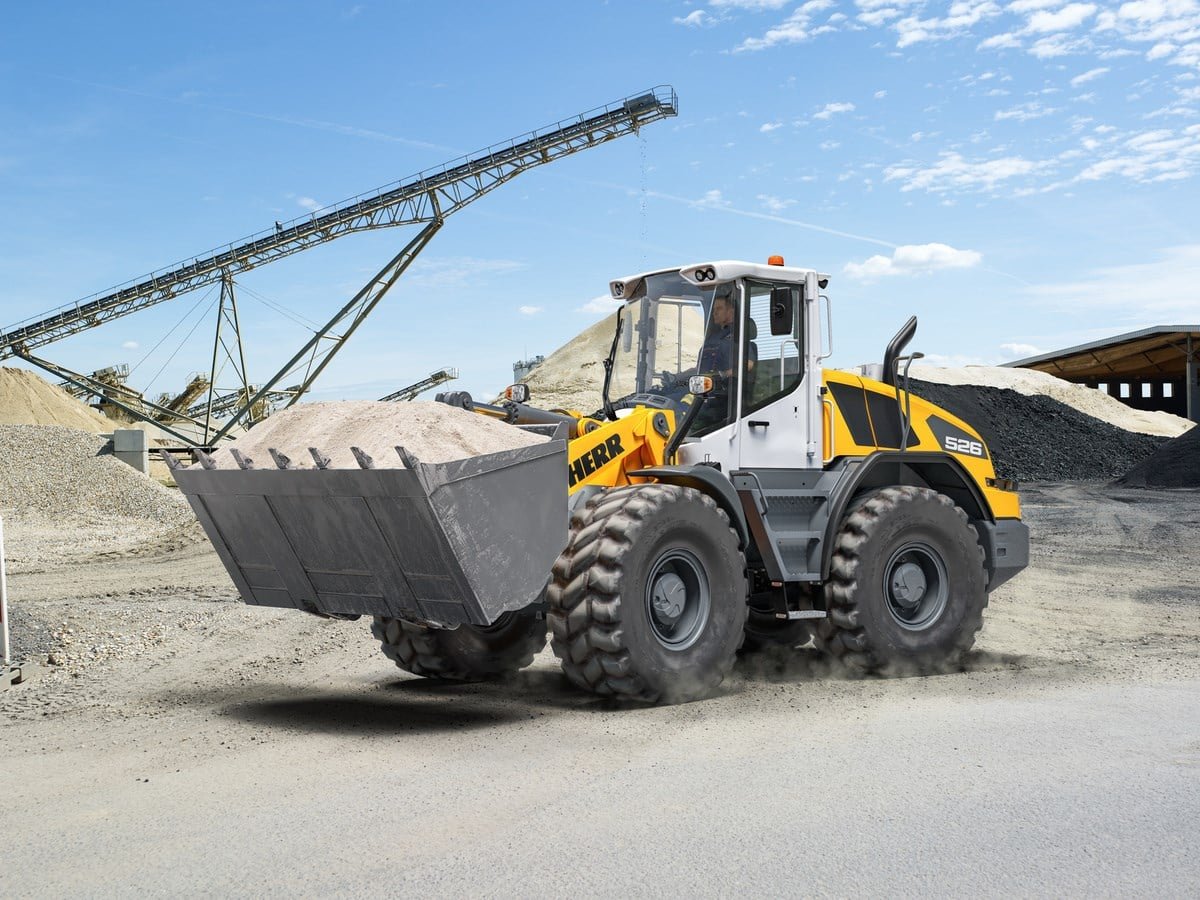

Liebherr L526

Series: Liebherr Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr L526 is a model in the Liebherr Wheel Loader series. The engine delivers 139.9 hp (100.7 kW), has 4 cylinders, with a displacement of 4,506.4 cm³. Rated speed is 2,000 rpm. The unladen weight is 11,249.1 kg. The wheelbase measures 2,956.6 mm. Ground clearance is 487.7 mm. The tank holds 205.2 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 136.3 l/min. The hydraulic tank holds 170 litres. The cooling system holds 31 litres. The engine fitted is the 4045HLC07. Tyre size: 17,5R25 L3. The Liebherr Wheel Loader series covers 37 models. Rated output within it ranges from 99.4 to 357.9 hp; the L526 sits in the lower part of that range with 139.9 hp. Its immediate neighbours are the L528 below it with 135.9 hp and the L538 2plus1 above it with 142.9 hp. 480 Liebherr models across 20 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model4045HLC07correct
Power139.9 hp (100.7 kW)correct
Rated speed2,000 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement4,506.4 cm³correct
AspirationWater-cooled turbocharged in-line engine with cooled exhaust gas recirculationcorrect
Coolant capacity31 lcorrect

Dimensions and weights

Wheelbase2,956.6correct
Ground clearance487.7correct
Unladen weight11,249.1 kgcorrect

Drivetrain and chassis

Forward gears3correct
Reverse gears3correct
Tyre size17.5R25 L3correct

Working data

Pump flow136.3 l/mincorrect
Hydraulic oil capacity170 lcorrect
Fuel tank capacity205.2 lcorrect

Other data

Height3,230.9correct

Where this model stands

Power-to-weight ratio: 9 kW/t (101 kW / 11.2 t)

Stronger than 51% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Liebherr L526 have?

The Liebherr L526 delivers 140 hp.

How much does the Liebherr L526 weigh?

The unladen weight is 11,249 kg.

What engine does the Liebherr L526 have?

4 cylinders, 4,506 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
