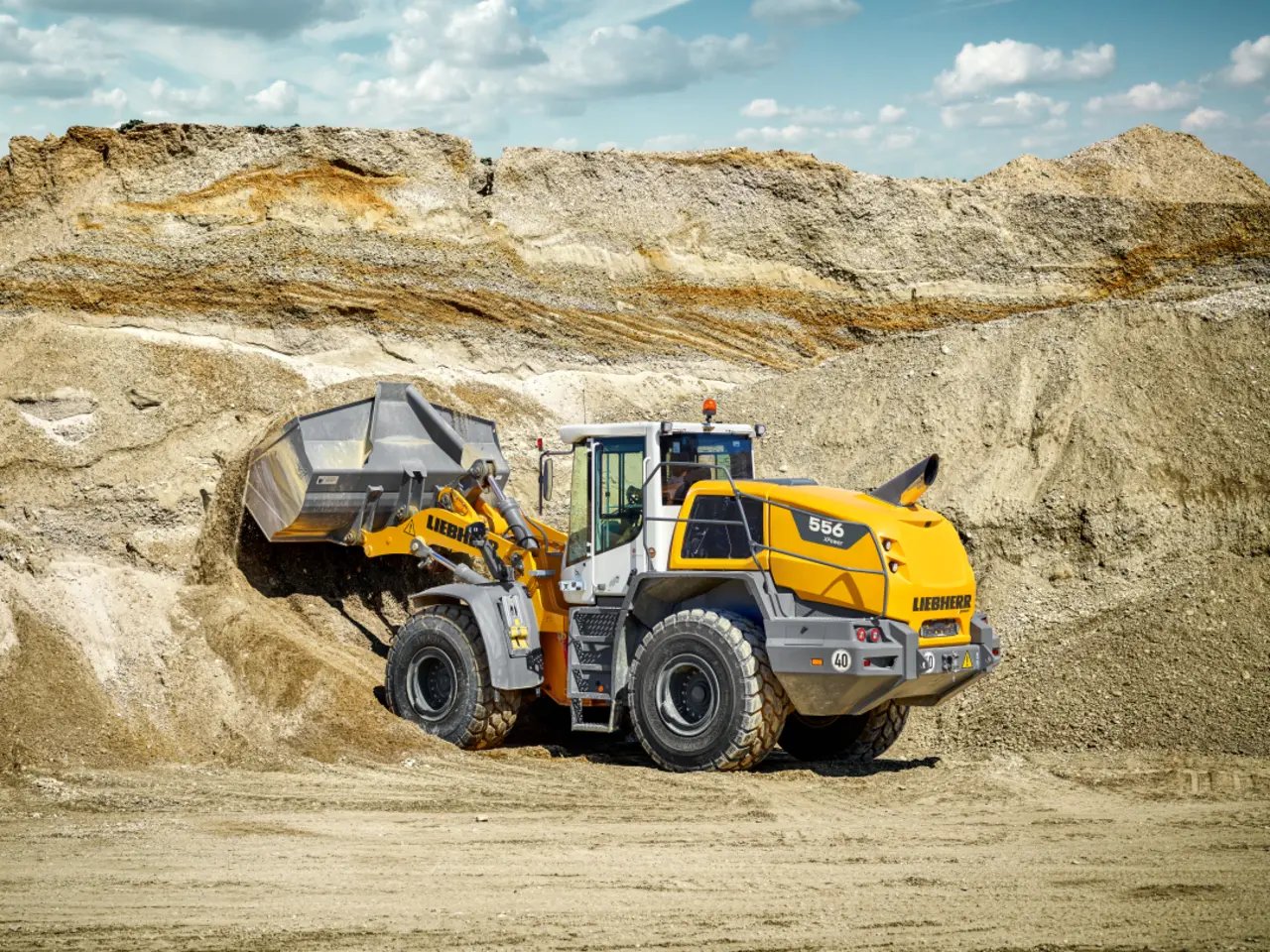

Liebherr L556

Series: Liebherr Wheel Loader

Source: https://www.liebherr.com/en-int/p/241923-5376616

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the L556, Liebherr offers a model from the Liebherr Wheel Loader series. The engine delivers 190.6 hp (140.2 kW), has 4 cylinders, with a displacement of 7,013.7 cm³. Rated speed is 1,500 rpm. The unladen weight is 17,898.8 kg. The wheelbase measures 3,078.5 mm. Ground clearance is 518.2 mm. The tank holds 299 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 234.7 l/min. The hydraulic tank holds 244.9 litres. The cooling system holds 42 litres. The engine fitted is the D934 A7. Tyre size: 23,5R25 L3. The Liebherr Wheel Loader series covers 37 models. Rated output within it ranges from 99.4 to 357.9 hp; the L556 sits in the lower part of that range with 190.6 hp. Its immediate neighbours are the L556 2plus2 below it with 190.4 hp and the L550 XPOWER above it with 194.7 hp. 480 Liebherr models across 20 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD934 A7correct
Power190.6 hp (140.2 kW)correct
Rated speed1,500 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement7,013.7 cm³correct
AspirationWater-cooled with exhaust turbo charging, externally cooled exhaust gas recirculcorrect
Coolant capacity42 lcorrect

Dimensions and weights

Wheelbase3,078.5correct
Ground clearance518.2correct
Unladen weight17,898.8 kgcorrect

Drivetrain and chassis

Forward gears3correct
Reverse gears3correct
Tyre size23.5R25 L3correct

Working data

Pump flow234.7 l/mincorrect
Hydraulic oil capacity244.9 lcorrect
Fuel tank capacity299 lcorrect

Other data

Height3,352.8correct

Where this model stands

Power-to-weight ratio: 7.8 kW/t (140 kW / 17.9 t)

Stronger than 71% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Liebherr L556 have?

The Liebherr L556 delivers 191 hp.

How much does the Liebherr L556 weigh?

The unladen weight is 17,899 kg.

What engine does the Liebherr L556 have?

4 cylinders, 7,014 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
