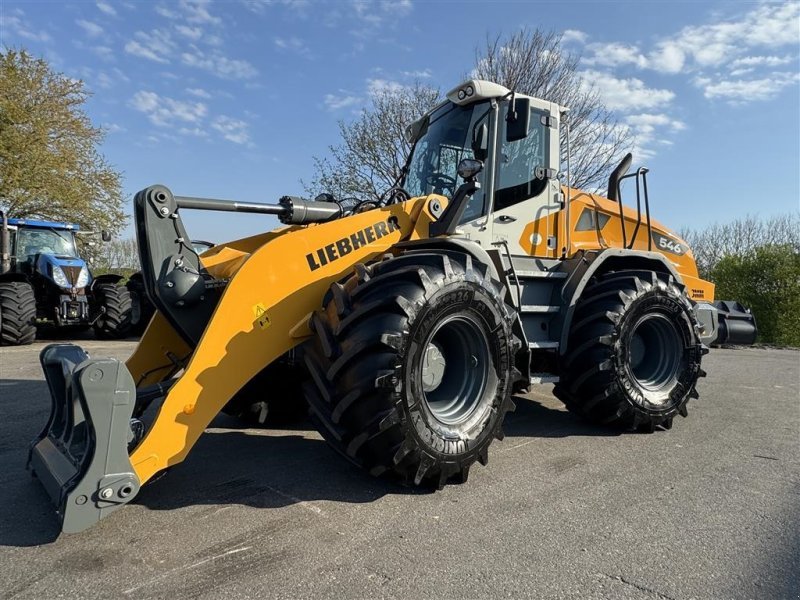

Liebherr L546

Series: Liebherr Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255/liebherr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Liebherr L546 is a model in the Liebherr Wheel Loader series. The engine delivers 167.3 hp (120.8 kW), has 4 cylinders, with a displacement of 4,506.4 cm³. Rated speed is 2,000 rpm. The unladen weight is 14,199.7 kg. The wheelbase measures 3,017.5 mm. Ground clearance is 518.2 mm. The tank holds 205.2 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 170.3 l/min. The hydraulic tank holds 180.2 litres. The cooling system holds 31 litres. The engine fitted is the 4045HLC09. Tyre size: 20,5R25 L3. The Liebherr Wheel Loader series covers 37 models. Rated output within it ranges from 99.4 to 357.9 hp; the L546 sits in the lower part of that range with 167.3 hp. Its immediate neighbours are the L542 below it with 163.2 hp and the L550 above it with 175.4 hp. 480 Liebherr models across 20 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model4045HLC09correct
Power167.3 hp (120.8 kW)correct
Rated speed2,000 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement4,506.4 cm³correct
AspirationWater-cooled turbocharged in-line engine with cooled exhaust gas recirculationcorrect
Coolant capacity31 lcorrect

Dimensions and weights

Wheelbase3,017.5correct
Ground clearance518.2correct
Unladen weight14,199.7 kgcorrect

Drivetrain and chassis

Forward gears3correct
Reverse gears3correct
Tyre size20.5R25 L3correct

Working data

Pump flow170.3 l/mincorrect
Hydraulic oil capacity180.2 lcorrect
Fuel tank capacity205.2 lcorrect

Other data

Height3,291.8correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (121 kW / 14.2 t)

Stronger than 62% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Liebherr L546 have?

The Liebherr L546 delivers 167 hp.

How much does the Liebherr L546 weigh?

The unladen weight is 14,200 kg.

What engine does the Liebherr L546 have?

4 cylinders, 4,506 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
