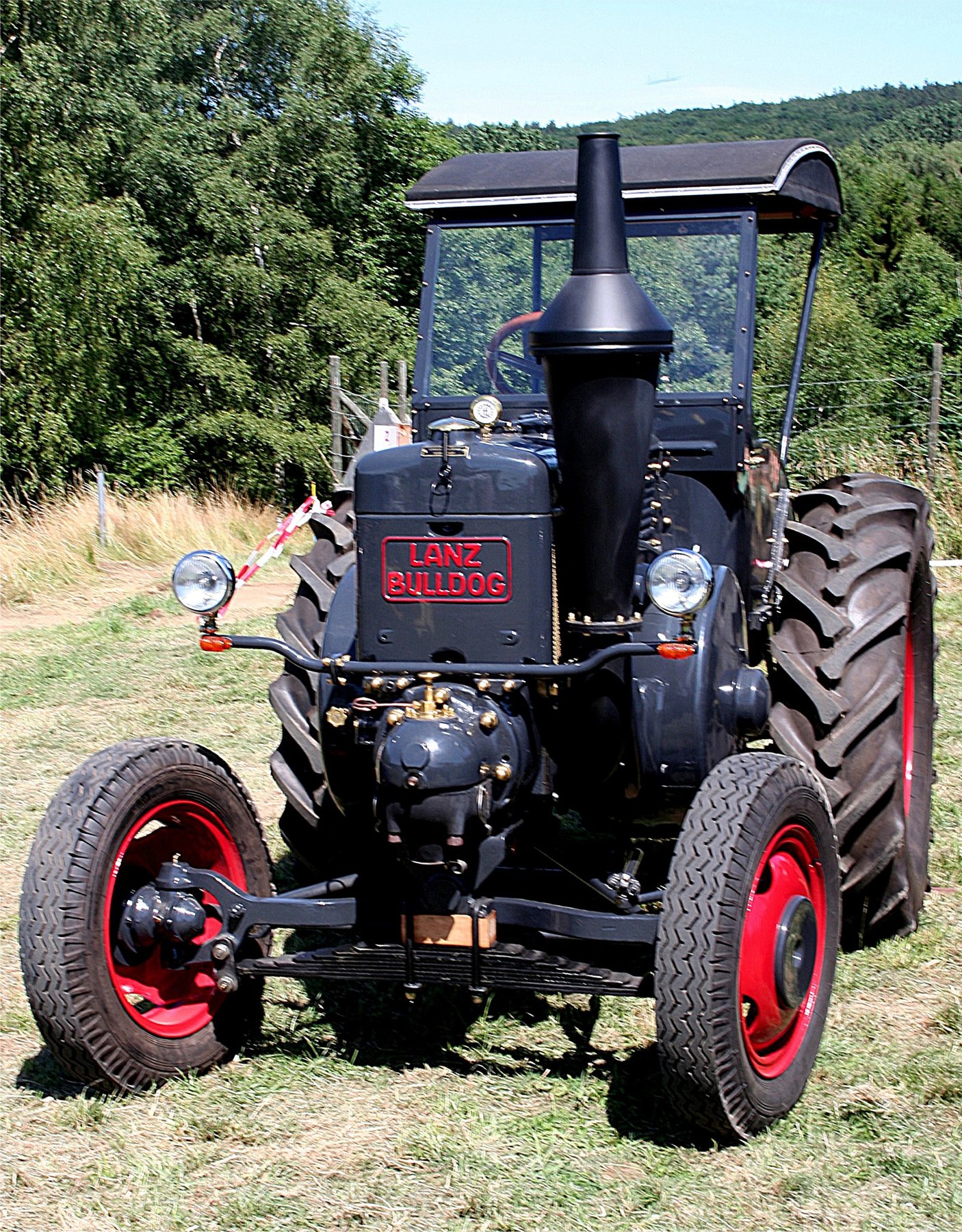

Lanz D 8516
Built: 1937 and 1948–1944 and 1955 · Series: HR 7-Reihe
More machines from model year 1937
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lanz HR 7 series – the D 8516: a water-cooled single-cylinder diesel producing 25.6 kW, its rated speed raised to 599 rpm from April 1950, and a 3,780 kg weight
Lanz, in full Heinrich Lanz AG, was based in Mannheim. Unlike the related, multi-fuel D 8506 from the same model family, the D 8516 of the HR 7 series runs on pure diesel fuel and is genuinely water-cooled with a pump rather than relying only on thermosyphon action, two technical differences within the same model family.
Read on 3 more paragraphs
The D 8516 produces 25.6 kW, or 35 hp, at a rated speed given in the register as 540 rpm, raised to 599 rpm from April 1950. The machine weighs 3,780 kg, reaches 18 km/h, and measures 3,400 mm in length, 1,780 mm in width and 2,185 mm in height.
Raising the rated speed during an ongoing production run is a documented technical change of the kind seen on long-lived series of this period, without any change to displacement or cylinder count. Genuine water cooling with a pump, compared with the purely thermosyphon cooling of related models, allows more even cooling under the higher continuous load that a raised rated speed brings with it.
When buying a used D 8516, it is worth first establishing whether the fitted engine carries the original rated speed of 540 rpm or the 599 rpm that applied from April 1950, since the two versions may need different fuel-supply parts. The water cooling calls for a check of corrosion and pump tightness, alongside the usual look at the flywheel and clutch after decades of use.
Sources: SpecCodex-Register: Kennwerte des Modells D 8516
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (25.6 kW)correct |
| Rated speed | 540 rpmcorrect |
| Cylinders | 1correct |
| Bore | 225 mmcorrect |
| Stroke | 260 mmcorrect |
| Compression ratio | 5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,400 mmcorrect |
|---|---|
| Width | 1,780 mmcorrect |
| Height | 2,185 mmcorrect |
| Wheelbase | 1,975 mmcorrect |
| Unladen weight | 3,780 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V / 2Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 7, 00-18correct |
| Rear tyres | 12, 75-28correct |
| Top speed | 18 km/hcorrect |
Working data
| Fuel tank capacity | 90 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 6.8 kW/t (26 kW / 3.8 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Lanz D 8516 have?
The Lanz D 8516 delivers 35 hp.
How much does the Lanz D 8516 weigh?
The unladen weight is 3,780 kg.
What engine does the Lanz D 8516 have?
1 cylinders, Diesel.
How fast does the Lanz D 8516 go?
Top speed is 18 km/h.
What are the dimensions of the Lanz D 8516?
3,400 mm × 1,780 mm × 2,185 mm.
When was the Lanz D 8516 built?
Production years: 1937 und 1948–1944 und 1955.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
