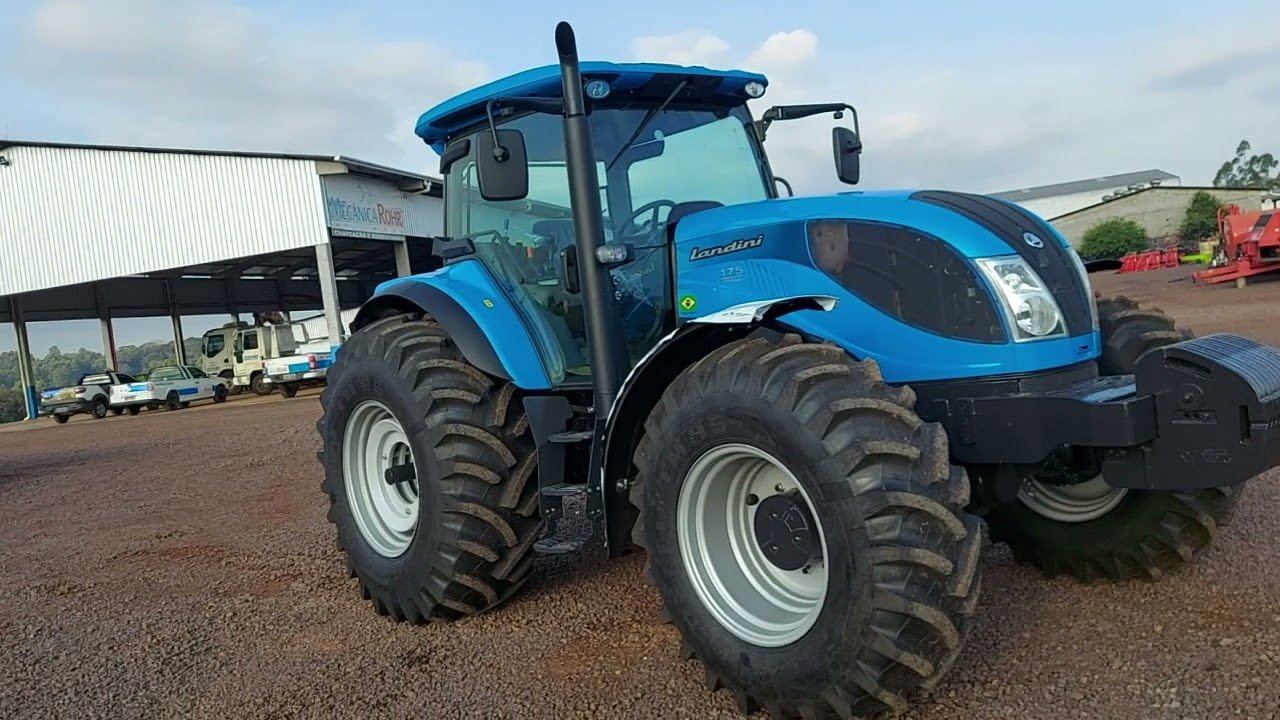

Landini 175

Built: 2013 · Series: Serie 7-T4i

More machines from model year 2013

The 175 from Landini is part of the 7-T4i series. Production: 2013. The engine delivers 175 hp (129 kW), has 6 cylinders, with a displacement of 6,728 cm³. Torque is 679 Nm. Rated speed is 1,900 rpm. The machine is 5,260 mm long, 2,430 mm wide and 2,920 mm high. The unladen weight is 6,550 kg. The wheelbase measures 2,750 mm. Ground clearance is 550 mm. Top speed is 40 km/h. The tank holds 320 litres. The engine is air-cooled. Tyres: front 540/65R28, rear 650/65R38. The fuel is diesel. Construction: cast-frame construction. The gearbox offers 40 forward gears. The Serie 7-T4i series covers 3 models. Rated output within it ranges from 175 to 212 hp; the 175 sits at the bottom of that range with 175 hp. Its immediate neighbours are the 190 above it with 188 hp. Unladen weight within it ranges from 6,550 to 7,350 kg; here the 175 sits at the bottom of that range with 6,550 kg. 222 Landini models across 35 series are on record.

Landini Series 7 T4i – the six-cylinder big tractors 175, 190 and 215 from Fabbrico: 6.7 litres displacement, 129 to 156 kW, Tier 4 interim emission stage

Series 7 is Landini's range of big six-cylinder tractors, with the 175, 190 and 215 models, whose numbers denote the hp class. The T4i suffix stands for Tier 4 interim, the American and European emission stage (equivalent to Stage IIIB) that, on its introduction, required a particulate filter or exhaust gas recirculation on the six-cylinder engines.

Read on 3 more paragraphs

The register lists here 3 versions with 129 to 156 kW or 175 to 212 hp from the uniform six-cylinder of 6,728 cm³ displacement and torque of 679 to 810 Nm at a uniform 1,900 rpm. Unladen weights range from 6,550 to 7,350 kg, lengths from 5,260 to 5,360 mm, width is uniformly 2,430 mm and heights range from 2,920 to 3,055 mm.

As the flagship range for heavy draft work, large implements and transport tasks, Series 7 goes up against comparable big tractors from Case IH, New Holland and Fendt, which in the same power segment likewise rely on six-cylinders with exhaust aftertreatment.

On a used example, operating hours and service history of the six-cylinder including exhaust aftertreatment, clutch and powershift gearbox condition, hydraulic tightness at the high draft forces, and rust on cab and mudguards count; parts run through the Landini-Argo network.

Sources: SpecCodex register, model data: Landini Serie 7 T4i, Landini (Argo Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	175 hp (129 kW)correct
Rated speed	1,900 rpmcorrect
Torque	679 Nmcorrect
Cylinders	6correct
Displacement	6,728 cm³correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	5,260 mmcorrect
Width	2,430 mmcorrect
Height	2,920 mmcorrect
Wheelbase	2,750 mmcorrect
Ground clearance	550 mmcorrect
Unladen weight	6,550 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	Roboshift-Getriebecorrect
Forward gears	40correct
Front tyres	540/65R28correct
Rear tyres	650/65R38correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	320 lcorrect

Origin and approval

Construction	cast-frame constructioncorrect

Where this model stands

Power-to-weight ratio: 19.7 kW/t (129 kW / 6.5 t)

Power class: Large (100–180 hp)

Stronger than 88% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Landini 175 have?

The Landini 175 delivers 175 hp.

How much does the Landini 175 weigh?

The unladen weight is 6,550 kg.

What engine does the Landini 175 have?

6 cylinders, 6,728 cm³ displacement, Diesel.

How fast does the Landini 175 go?

Top speed is 40 km/h.

What are the dimensions of the Landini 175?

5,260 mm × 2,430 mm × 2,920 mm.

When was the Landini 175 built?

Production years: 2013.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
